Vacuum Furnace PCD Brazing High Temperature For Carbide Insterts

Place of Origin China
Brand Name CTSTC
Certification N/A
Model Number N/A
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Vacuum Brazing Service For PCD/PCBN Brazing Type Vacuum Brazing
Brazing Circle Time Less Than 90min Brazing Quantity More Than 500 Pcs Per Circle
High Light

Furnace PCD Brazing


PCD Brazing Carbide Insterts


Vacuum Furnace PCD Insterts

Leave a Message
Product Description

Vacuum Furnace PCD Brazing High Temperature For Carbide Insterts


Brazing equipment ZT-ZKHJ280
Brazing Type Vacuum brazing
Material PCD/PCBN/Carbide Inserts
Brazing Circle Time ≦90min
Brazing Quality/ ≥500pcs(per machine)



Material V25(HYPERION)/DCGA160404
Size 55°T 4.224*2.95mm/80°9.525(D)*3.97(S)*0.8R
Tolerances 0.025mm
Processing time At most 1day


Product Advantages

1. Clean-free, no oxide layer, environmentally friendly.

2. Saves a lot of expensive metal brazing agent.

3. High precision, even very small and complex workpiece can be brazed.

4. Does not need complex flux cleaning process.

5. High efficiency, lower cost.




Many years experience in ultra-hard cutting tools industry, added with standard and accurate process procedure guard for the quality of our service.
The base metals are not melted, allowing you to maintain, with proper heating very close tolerances. Brazed joints are performed at relatively low temperatures compared to welding, thereby significantly reducing the risks of melting, Overheating, or warping.



Our process procedure

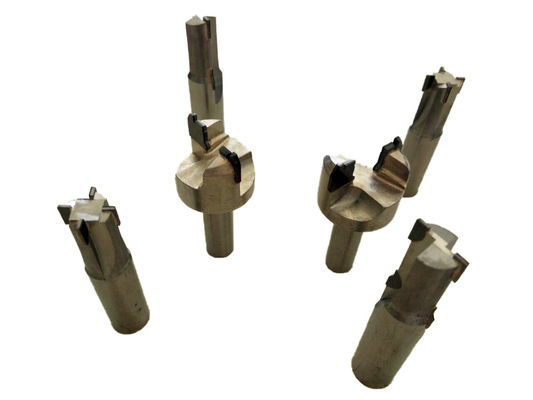

Vacuum Furnace PCD Brazing High Temperature For Carbide Insterts 0



Company Introduction


Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
