800 Degree PCD Brazing High Safety For Polycrystalline Diamond Inserts

Place of Origin China
Brand Name CTSTC
Certification N/A
Model Number N/A
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vacuum Brazing Service For PCD/PCBN Brazing Type Vacuum Brazing
Brazing Circle Time Less Than 90min Brazing Quantity More Than 500 Pcs Per Circle
Highlight

Polycrystalline Diamond Inserts PCD Brazing

,

800 Degree PCD Brazing

,

PCD polycrystalline diamond inserts

Leave a Message
Product Description

PCD Inserts Tools Vacuum Brazing Service Cutting Tools 800 degree



Description:

Our company provide one step processing service for ultra-hard cutting tools, including laser cutting, carbide inserts notching, vacuum brazing, chip breaker processing and so on.

Vacuum brazing is an efficient way to achieve a finished joint.



Product Advantages

1.Competitive price, high quality.

2. High efficiency

3. Environmentally friendly.

4. Have good safety production conditions

5. It can cost effectively join complex parts–even nonmetals and dissimilar metals







Brazing equipment ZT-ZKHJ280
Brazing Type Vacuum brazing
Material PCD/PCBN/Carbide Inserts
Brazing Circle Time ≦90min
Brazing Quality/ ≥500pcs(per machine)



Example

Material SB95S2(Ijin PCBN)/CNGA120404
Size 80°T 8.34*4.61mm/80°12.9(D)*4.76(S)*0.4R*5.16(D1)
Tolerances 0.025mm
Processing time At most 1day





Our process procedure

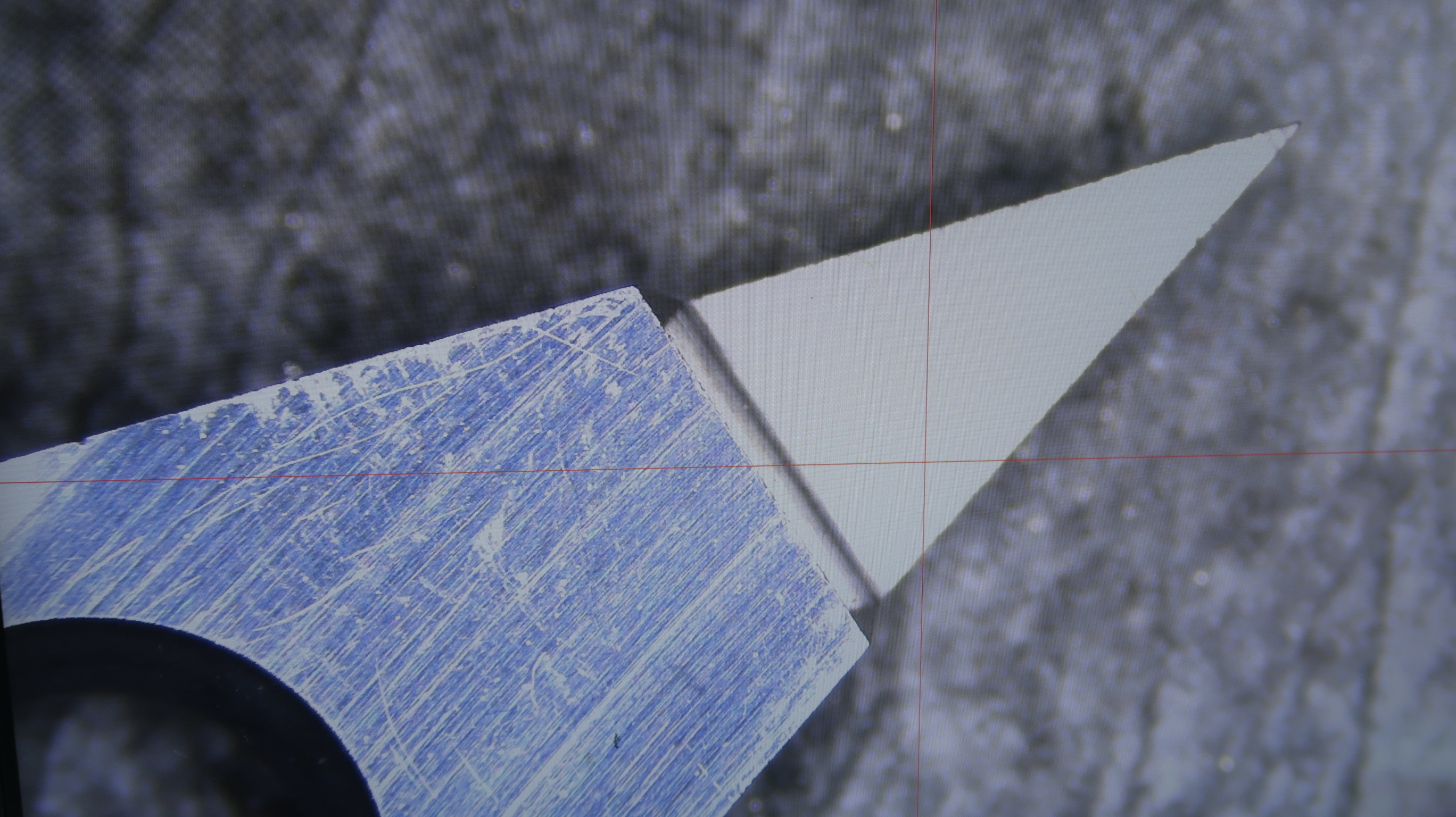

800 Degree PCD Brazing High Safety For Polycrystalline Diamond Inserts 0

1. Design drawing according to requirements of clients.

2. Carbide inserts notching

3. Cleaning and apply solder paste

4. Drying

5. Vacuum brazing

6. Quality testing

7. Shipping or moving on to next procedure.
