PCBN Inserts Tools PCD Brazing Vacuum Brazing Service Industrial

Place of Origin China
Brand Name CTSTC
Certification N/A
Model Number N/A
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vacuum Brazing Service For PCD/PCBN Brazing Type Vacuum Brazing
Brazing Circle Time Less Than 90min Brazing Quantity More Than 500 Pcs Per Circle
Highlight

Vacuum PCD Brazing

,

PCBN Inserts Tools PCD Brazing

,

PCBN Inserts Tools Vacuum Brazing Service

Leave a Message
Product Description

PCBN Inserts Tools Vacuum Brazing Service Cutting Tools Industry



Product Advantages

1.Competitive price, high quality.

2. Avoid all kinds of pollution

3. Environmentally friendly.

4. Customized

5. Significantly improve the corrosion resistance of the product.

Description:

Vacuum brazing not only saves a lot of expensive metal brazing agent, but also does not need complex flux cleaning process, which reduces production cost.

Vacuum brazing filler metal has good wettability and fluidity, which can weld more complex and narrow channel devices. Vacuum brazing improves the yield of products and obtains a solid and clean working surface.



Brazing equipment ZT-ZKHJ280
Brazing Type Vacuum brazing
Material PCD/PCBN/Carbide Inserts
Brazing Circle Time ≦90min
Brazing Quality/ ≥500pcs(per machine)



Example

Material SB95S2(Ijin PCBN)/CNGA120404
Size 80°T 8.34*4.61mm/80°12.9(D)*4.76(S)*0.4R*5.16(D1)
Tolerances 0.025mm
Processing time At most 1day





Our process procedure

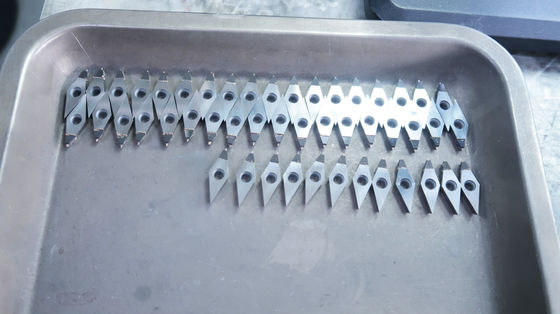

PCBN Inserts Tools PCD Brazing Vacuum Brazing Service Industrial 0

1. Design drawing according to requirements of clients.

2. Carbide inserts notching

3. Cleaning and apply solder paste

4. Drying

5. Vacuum brazing

6. Quality testing

7. Shipping or moving on to next procedure.
