Abrasive Resistance PCD Brazing Various Shapes PCBN And Carbide Tools

Place of Origin China
Brand Name CTSTC
Certification N/A
Model Number N/A
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Delivery Time 5-8days
Payment Terms L/C, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Vacuum Brazing Service For PCD/PCBN Brazing Type Vacuum Brazing
Brazing Circle Time Less Than 90min Brazing Quantity More Than 500 Pcs Per Circle
High Light

Carbide Tools PCD Brazing


PCBN tools PCD Brazing

Leave a Message
Product Description

PCBN and carbide Tools Vacuum Soldering Service Cutting Tools 800 Degree


Product Advantages

1. Can be processed in various shapes

2.Reduced thermal distortion, as compared to welding.

3. High precision, even very small and complex workpiece can be brazed.

4. Can be processed in various shapes

5. Vacuum brazing not only saves a lot of expensive metal brazing agent, but also does not need complex flux cleaning process, which reduces production cost.



Many years experience in ultra-hard cutting tools industry, added with standard and accurate process procedure guard for the quality of our service.

Vacuum brazing can cost effectively join complex parts–even nonmetals and dissimilar metals. Because the temperature does not reach the melting point of the base metals being joined, there are a great variety of materials that can be joined by the brazing process–including ferrous and nonferrous metals and even ceramics.

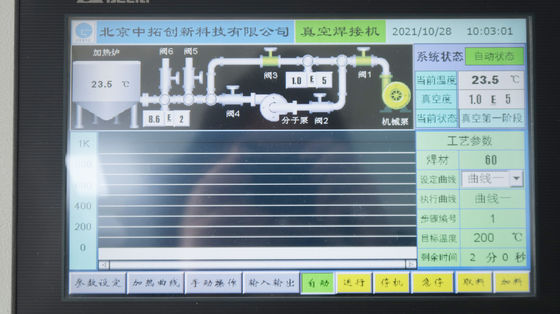

Brazing equipment ZT-ZKHJ280
Brazing Type Vacuum brazing
Material PCD/PCBN/Carbide Inserts
Brazing Circle Time ≦90min
Brazing Quality/ ≥500pcs(per machine)



Material V25(HYPERION)/DCGA160404
Size 55°T 4.224*2.95mm/80°9.525(D)*3.97(S)*0.8R
Tolerances 0.025mm
Processing time At most 1day



Our process procedure

Abrasive Resistance PCD Brazing Various Shapes PCBN And Carbide Tools 0
