PLC Control System Vacuum Brazing Machine 380V Power Supply Robust Vacuum Brazing Equipment for Precision Metal Joining

Product Description:

The Vacuum Brazing Machine is an advanced piece of equipment designed to meet the rigorous demands of modern manufacturing processes, particularly in the aeronautical and tooling industries. Utilizing state-of-the-art induction heating technology, this machine ensures precise and efficient heating, which is critical for achieving high-quality brazing results. The induction heating method provides rapid and uniform temperature distribution, minimizing thermal distortion and ensuring consistent brazed joints.

Measuring 1020*680*1130 mm, the compact yet robust design of the Vacuum Brazing Machine allows it to fit seamlessly into various production environments without compromising performance. Its dimensions have been optimized to provide sufficient workspace while maintaining ease of integration with other manufacturing systems. This makes it an ideal choice for facilities seeking to enhance their brazing capabilities without extensive modifications to existing setups.

One of the standout features of this machine is its compatibility with a wide range of brazing materials, including copper, silver, and aluminum alloys. This versatility makes it suitable for multiple applications across different sectors, particularly where these materials are prevalent. The ability to work effectively with these metals ensures that the brazed joints exhibit excellent mechanical strength and corrosion resistance, which are essential for high-performance applications.

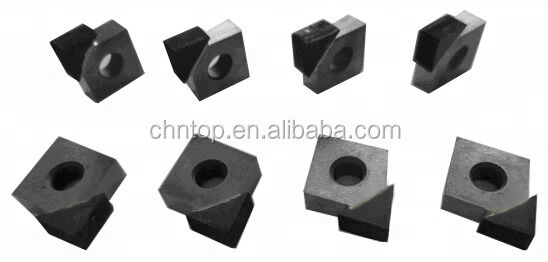

Specifically designed for use in the aeronautical industry and CNC tool manufacturing, the Vacuum Brazing Machine excels in brazing PCD (Polycrystalline Diamond) and PCBN (Polycrystalline Cubic Boron Nitride) tools. These tools require meticulous brazing techniques due to their unique properties and the demanding environments in which they operate. The machine’s precise control over the vacuum and heating processes ensures that the brazing is performed under optimal conditions, leading to superior tool quality and longevity.

This machine is often referred to as an Automatic Vacuum Machine for PCD/PCBN, highlighting its automated features that enhance productivity and reduce the need for manual intervention. Automation ensures consistent brazing cycles, improved repeatability, and reduced human error, which are crucial for maintaining high standards in tool manufacturing. The controlled vacuum environment eliminates oxidation and contamination during the brazing process, resulting in cleaner and stronger joints.

Additionally, the Vacuum Brazing Machine is recognized as a Diamond Vacuum Brazing Device due to its specialization in brazing diamond-based cutting tools. Diamond tools are widely used in precision machining and require brazing processes that preserve the integrity of the diamond particles while securely bonding them to the tool substrate. This machine’s advanced vacuum and heating capabilities make it uniquely suited for this delicate task.

Another key attribute of this equipment is its function as a High Temperature Vacuum Welder. The capability to reach and maintain high temperatures under vacuum conditions is essential for welding and brazing operations that demand exceptional joint quality and reliability. The vacuum environment prevents oxidation and thermal degradation, ensuring that the welded or brazed components meet stringent quality standards.

In summary, the Vacuum Brazing Machine is a highly specialized and versatile piece of equipment that combines induction heating with a controlled vacuum environment to deliver exceptional brazing results. Its compatibility with various brazing materials, automated operation for PCD/PCBN tools, and suitability for high-temperature vacuum welding make it an invaluable asset in the aeronautical and CNC tool manufacturing industries. By integrating this machine into production lines, manufacturers can achieve enhanced product quality, increased efficiency, and greater reliability in their brazing and welding processes.

Applications:

The CTSTC Vacuum Brazing Machine, model ZT-ZKHJ180II, is an advanced Vacuum Brazing System for Ultra hard Materials designed to meet the precise needs of industrial and manufacturing sectors. Originating from China and certified with CE, this machine is ideal for applications requiring superior brazing quality under stringent vacuum conditions, with a vacuum level of ≤5Pa ensuring minimal oxidation and contamination during the brazing process.

This Diamond Vacuum Brazing Device is particularly suitable for brazing ultra-hard materials such as diamonds and other superhard alloys, making it indispensable in the production of cutting tools, precision instruments, and high-performance components. The system uses induction heating as its primary heating method, allowing for rapid, uniform heating and energy efficiency. Its compatibility with a variety of brazing materials, including copper, silver, and aluminum alloys, enables versatile application across different industries.

The compact design, standing at a height of 500mm, allows it to be integrated easily into existing production lines or specialized workshops. The machine is securely packaged in a plywood box for safe delivery, with an expected delivery time of 45-60 days after order confirmation. Payment options such as TT, LC, and Western Union provide flexible financial arrangements for buyers. The minimum order quantity is just one unit, ensuring accessibility for small-scale enterprises and large manufacturers alike.

Applications for the CTSTC Vacuum Brazing System for Ultra hard Materials span various scenarios, including the manufacturing of diamond tools, aerospace components, electronic devices, and medical instruments where brazing precision and material integrity are critical. This vacuum brazing system excels in scenarios where traditional brazing methods fail to provide the required strength and durability, especially when working with ultra-hard materials that demand a contamination-free environment.

Industries engaged in high-tech manufacturing, such as semiconductor production, automotive engineering, and advanced tooling, will find the CTSTC ZT-ZKHJ180II Vacuum Brazing Machine indispensable for improving product quality and operational efficiency. Its induction heating method ensures rapid cycle times and reduces thermal distortion, making it ideal for high-volume production runs as well as intricate brazing tasks.

In summary, the CTSTC Vacuum Brazing System for Ultra hard Materials offers a reliable, efficient, and versatile solution for precision brazing needs. Whether you require a Diamond Vacuum Brazing Device for specialized applications or a robust system for general ultra-hard material brazing, this machine delivers exceptional performance backed by CE certification and supported by comprehensive after-sales service.

Support and Services:

Our Vacuum Brazing Machine is designed to provide reliable and efficient brazing solutions for a wide range of industrial applications. To ensure optimal performance and longevity of your equipment, we offer comprehensive technical support and services.

Our technical support team is available to assist you with installation guidance, operation training, and troubleshooting. We provide detailed user manuals and maintenance guidelines to help you maximize the machine's efficiency and minimize downtime.

Regular maintenance services are recommended to keep your Vacuum Brazing Machine operating at peak performance. These services include inspection, cleaning, calibration, and replacement of worn parts. We also offer spare parts and consumables that meet the highest quality standards to ensure compatibility and durability.

In addition, we provide software updates and upgrades to enhance the machine’s functionality and integrate the latest technological advancements. Our experts can also customize the machine settings and processes to meet your specific production requirements.

For any technical issues, our support team is ready to provide prompt assistance and remote troubleshooting to resolve problems quickly. We are committed to delivering excellent after-sales service to ensure your complete satisfaction and continuous operation of your Vacuum Brazing Machine.

Packing and Shipping:

Our Vacuum Brazing Machine is carefully packaged to ensure it arrives safely and in perfect working condition. The machine is securely placed in a custom-fitted foam insert within a sturdy wooden crate, providing maximum protection against shocks and vibrations during transit. All sensitive components are wrapped with protective materials to prevent damage.

For shipping, we collaborate with reliable logistics partners experienced in handling heavy industrial equipment. The packaging complies with international shipping standards, including ISPM 15 for wooden crates, to facilitate smooth customs clearance. We offer multiple shipping options, including sea freight, air freight, and express courier services, tailored to meet your delivery timeline and budget requirements.

Upon shipment, customers will receive a tracking number and detailed shipping documentation. Our team is available to assist with any inquiries related to delivery status, installation guidance, and after-sales support to ensure a seamless experience from purchase to operation.

FAQ:

Q1: What is the brand and model number of this Vacuum Brazing Machine?

A1: The Vacuum Brazing Machine is manufactured by CTSTC and the model number is ZT-ZKHJ180II.

Q2: Where is the Vacuum Brazing Machine made?

A2: This machine is made in China.

Q3: Is the Vacuum Brazing Machine certified?

A3: Yes, the Vacuum Brazing Machine has a CE certification.

Q4: What is the minimum order quantity for this machine?

A4: The minimum order quantity is 1 unit.

Q5: What are the payment terms and delivery time for this product?

A5: Payment can be made via TT, LC, or Western Union. The delivery time is typically between 45 to 60 days.

Q6: How is the Vacuum Brazing Machine packaged for shipment?

A6: The machine is securely packed in a plywood box to ensure safe delivery.

Q7: Is the price fixed for the Vacuum Brazing Machine?

A7: The price is negotiable depending on order details and requirements.
