1, PLC control, SCR heating, touch panel,
automatic implement after simple setting with easy temperature control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.
4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.
Besides the standard machine, we can offer OEM according to clients’ requirement.
All Products
-
StevenCHN-TOP offer very good service and the products help us a lot -
S.N. SharmaCHN-TOP machine help me to improve my imprresion for Chinese machines -
MikeBest products with best price, CHN-TOP well done!
Contact Person :
Angel
Phone Number :
15580856617
Whatsapp :
+8615580856617

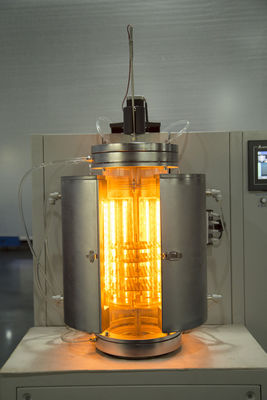

380V Water Cooling Vacuum Brazing Machine For PCD PCBN Blanks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | CHN-TOP | Product Name | Vacuum Brazing Machine |
|---|---|---|---|
| Model No. | ZT-180 | Cycle Time | 90 Mintiues |
| Application | PCD PCBN DIAMOND TOOLS BRAZING | ||
| High Light | 380V Vacuum Brazing Machine,PCD PCBN Vacuum Brazing Machine,380V auto brazing machine |
||
You can tick the products you need and communicate with us in the message board.
| Dimensions | 1600*950*900mm( L*W*H) | |
|---|---|---|
| Power supply | 3 phases-380V-15KW | |
| Chamber | Quartz Glass Tube | |
| Chamber size | ￠180*500(L)*T4(mm) | |
| Brazing Capability | For example: CNGA1204 approx 350pcs/cycle | |
| Max Temperature | 950℃ | |
| Limited vacuum rate | 10-6 Torr (10-4 Pa) | |
| Vacuum Rate | 10-5 Torr (10-3 Pa) | |
| Heating source | 18 pcs halogen tubes | |
| Chilling | Water |
Product Description
DIAMOND GRINDING MACHINE PCD BLANK BRAZING MACHINE BRAZING SERVICE FOR PCD PCBN TOOLS CHIP BREAKER TOOLS PCBN BLANKS
Vacuum Brazing machine is excellent for brazing ultra-hard material(PCD /PCBN/ MD/ ND /CVD), TUNGSTEN carbide, ceramics and others;
It's fully automatic and very easy to operate at high efficienty
No oxidation
- Easy temperature control
- Work environment improvement
- Total cost efficiency
- Enhancement of strength
- Reduction of distortion
MAIN FEATURES
Technical Parameters:
| Dimensions | 1600*950*900mm( L*W*H) |
| Power supply | 3 phases-380V-15KW |
| Chamber | Quartz Glass Tube |
| Chamber size | ￠180*500(L)*T4(mm) |
| Brazing Capability | For example: CNGA1204 approx 350pcs/cycle |
| Max Temperature | 950℃ |
| Limiting Vacuum rate | 10-6 Torr (10-4 Pa) |
| Vacuum Rate | 10-5 Torr (10-3 Pa) |
| Heating source | 18 pcs halogen tubes |
| Chilling | Water |
Brazing Samples
Brazing Process
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can
develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of
customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry
about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also
have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
