15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond

Place of Origin CHINA
Brand Name CHN-TOP
Certification CE
Model Number ZT-ZKHJ180
Minimum Order Quantity 1 SETS
Price Negotiable
Packaging Details WOODEN CASE
Delivery Time 5-60 WORKING DAYS
Payment Terms L/C, T/T, D/A, MoneyGram
Supply Ability 50 SETS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model No. ZT-ZKHJ180 Brand CHN-TOP
Product Name Vacuum Brazing Machine Application PCD PCBN DIAMOND TOOLS BRAZING
Vacuum Process Clean, Fixiing, Drying And Brazing
High Light

15KW brazing welding machine

,

CVD diamond brazing welding machine

,

380V brazing welding machine

You can tick the products you need and communicate with us in the message board.
Dimensions 1600*950*900mm( L*W*H)
Power supply 3 phases-380V-15KW
Chamber Quartz Glass Tube
Chamber size ¢180*500(L)*T4(mm)
Brazing Capability For example: CNGA1204 approx 350pcs/cycle
Max Temperature 950℃
Limited vacuum rate 10-6 Torr (10-4 Pa)
Vacuum Rate 10-5 Torr (10-3 Pa)
Heating source 18 pcs halogen tubes
Chilling Water
Leave a Message
Dimensions 1600*950*900mm( L*W*H)
Product Description

BRAZING MACHINE PCD BLANK BRAZING MACHINE BRAZING MACHINE FOR PCBN MD DIAMOND TOOLS
ZT-180 Vacuum brazing machine is widely used for PCD PCBN diamond tools


•Natural Diamond
• Monocrystal Diamond
• CVD Diamond
• PCD
• PCBN
• Other Special Brazing
  • Materials: Natural Diamond, Monocrystal diamond, PCD , PCBN, CVD and cermet
  • Substrate material:CERMET, tungsten carbide, steel, stainless steel, steel alloy ,ceramic, etc


15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 0

MAIN FEATURES

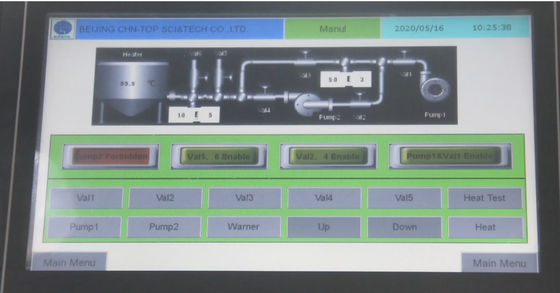

1, PLC control, SCR heating, touch panel,
automatic implement after simple setting with easy temperature control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.
4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.
Besides the standard machine, we can offer OEM according to clients’ requirement.
Technical Parameters:
15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 1

15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 2
15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 3
15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 4

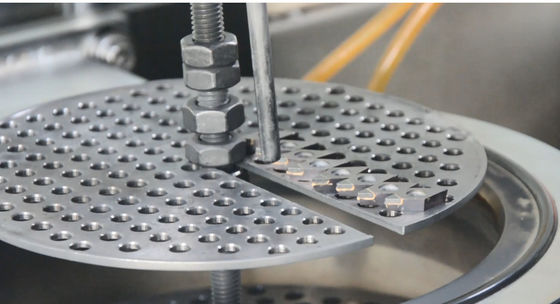

Brazing Samples





15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 5

15KW 380V Brazing Welding Machine Water Cooling For CVD Diamond 6

Originally founed by some engineers graduated from Tsinghua University ,CHN-TOP SCI&TECH CO;LTD is specializing in ultra hard cutting tools(PCD,PCBN,MD,ND,CVD diamonds) ;high precision equipments(ultra hard tools grinders,vacuum brazing machines,laser cutting machines,polish machines ; CNC process cutting ,brazing,polish service for PCD,PCBN,Cystal and other ultra hard material;distribute some imported compact blanks:(GE,E6,ILJIN,SUMITOMO,EU-DIA).As the professional maker,not only we can offer technical service,but also the ONE STOP SHOP for ultra hard material field with good reputation from global market. Until now there are more than 13 patents cover PCD/PCBN tools making technology. Now our machines competition for world-class products .
