1, PLC control, SCR heating, touch panel,
automatic implement after simple setting with easy temperature control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce total cost.
4, The machine is fully automatic and once loaded, the cycle time is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high temperature resistance.
Besides the standard machine, we can offer OEM according to clients’ requirement.
All Products
-
StevenCHN-TOP offer very good service and the products help us a lot -
S.N. SharmaCHN-TOP machine help me to improve my imprresion for Chinese machines -
MikeBest products with best price, CHN-TOP well done!
Contact Person :
Angel
Phone Number :
15580856617
Whatsapp :
+8615580856617

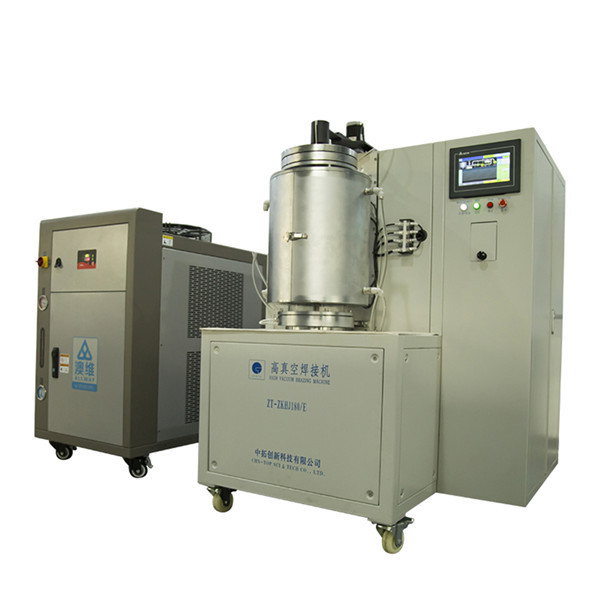

15KW Water Cooling Vacuum Brazing Machine For PCD PCBN Tools
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No. | ZT-ZKHJ180/E | Brand | CHN-TOP |
|---|---|---|---|
| Chamber Size | 180*500mm | Height | 500mm |
| High Light | PCD PCBN Tools Vacuum Brazing Machine,15KW Vacuum Brazing Machine,Water cooling vacuum brazing equipment |
||
You can tick the products you need and communicate with us in the message board.
| Dimensions | 1020*680*1130mm(L*W*H) | |
|---|---|---|
| Power | 3 Phase 5 wires | |

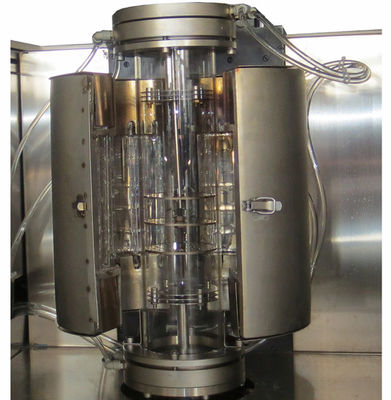

| Chamber material | Quartz Glass Tube | |
| Chamber size | 180E: ∮180*500*T4 | |
| Max temparature | 950℃ | |
| Max Vacuum Rate | 10ˉ6 Torr(10ˉ4 Pa) | |
| Vacuum Rate | 10ˉ4 Torr(10ˉ2 Pa) | |
| Heating Source | 18 pcs halogen tubes | |
| Chilling | Water cooling | |
| Vacuum Process | Cleaning Fixing Flux Drying: 200℃ 30 mins Brazing | |
Product Description
BRAZING MACHINE FOR TOOLS MACHINING PCD BLANK BRAZING MACHINE PCD TOOLS EQUIPMENT TOOL INSERT BRAZING NO OXIDATION
ZT-ZKHJ180E is a economic model for PCD PCBN diamond tools
- No oxidation
- Easy temperature control
- Work environment improvement
- Total cost efficiency
- Enhancement of strength
- Reduction of distortion
MAIN FEATURES
Technical Parameters:
|
Dimensions |
1020*680*1130mm(L*W*H) |
|
Power |
3 Phase 5 wires |
|
Chamber material |
Quartz Glass Tube |
|
Chamber size |
180E: ∮180*500*T4 |
|
Max temparature |
950℃ |
|
Max Vacuum Rate |
10ˉ6 Torr(10ˉ4 Pa) |
|
Vacuum Rate |
10ˉ4 Torr(10ˉ2 Pa) |
|
Heating Source |
18 pcs halogen tubes |
|
Chilling |
Water cooling |
|
Vacuum Process |
Clean, fitting paste,drying, and brazing |
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D
team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service
according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according
to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
