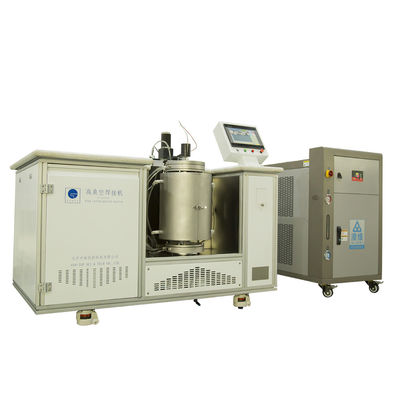

Chilling Water Cooling Vacuum Brazing Device for PCD/PCBN Inserts Brazing High Capacity CNGA1204 Appr. 600pcs/cycle

Product Description:

With a Power Supply of 380V-3Phases-5Wires/20KW, this Vacuum Brazing Device is capable of handling a wide range of materials with ease. Whether you are working with PCD, PCBN, or Tungsten Carbide, this machine provides the power and precision needed for high-quality results.

Weighing 600kg, this machine strikes the perfect balance between sturdiness and portability, making it ideal for various workshop settings. The compact design and manageable weight ensure easy maneuverability without compromising on performance.

The Vacuum Brazing Machine boasts a Max Temperature of 950°, allowing for the seamless welding and brazing of materials at elevated temperatures. This high temperature capacity ensures that the machine can handle demanding applications with ease, delivering consistent and reliable results every time.

Equipped with a Chamber Size of 180*500mm, this machine provides ample space for accommodating a variety of workpieces. The spacious chamber allows for the efficient processing of multiple components simultaneously, enhancing productivity and workflow efficiency.

As a Vacuum Welding/Brazing Machine, this equipment offers advanced features and capabilities that set it apart from traditional welding methods. The vacuum environment ensures a clean and precise brazing process, free from contaminants and oxidation, resulting in superior bonding quality and strength.

Whether you are working in the aerospace, automotive, or tooling industry, the Vacuum Brazing Machine is a versatile and reliable solution for your welding and brazing needs. Its innovative design and high-performance capabilities make it a valuable asset for any workshop or manufacturing facility.

Technical Parameters:

Applications:

The CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is a cutting-edge product designed for high-precision brazing of ultra-hard materials such as diamond. With its innovative technology and superior performance, this vacuum brazing system is suitable for a variety of application occasions and scenarios.

Product Application Occasions and Scenarios:

1. Jewelry Manufacturing: The Vacuum Brazing Machine is perfect for bonding diamond and other precious stones onto jewelry pieces with precision and efficiency.

2. Tool Manufacturing: Ideal for tool manufacturers looking to bond diamond cutting edges onto tools for enhanced durability and cutting performance.

3. Aerospace Industry: The Vacuum Brazing Device is suitable for aerospace applications where ultra-hard materials need to be brazed under high vacuum conditions for optimal performance.

4. Research Institutions: Research facilities can benefit from the advanced capabilities of the CTSTC ZT-ZKHJ280 for conducting experiments and studies involving vacuum brazing of diamond and other hard materials.

5. Automotive Industry: Automotive manufacturers can utilize this Vacuum Brazing System for bonding diamond abrasives onto cutting tools used in the production of engines and other automotive components.

With its innovative features such as 18pcs Halogen Tubes heating source, water cooling chilling system, and a max vacuum rate of 10^-2 Pa, the CTSTC ZT-ZKHJ280 offers unparalleled precision and control during the brazing process.

Additionally, the product comes with a CE certification, 1-year warranty, and flexible payment terms including TT, LC, and Western Union. The minimum order quantity is 1, and the delivery time ranges from 45 to 60 days. The price is negotiable, and the product is packaged securely in a plywood box for safe transportation.

Manufactured in China, the CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is a reliable and efficient solution for all your diamond vacuum brazing needs.

Customization:

Product Customization Services for the Vacuum Brazing Machine:

Vacuum Welding Machine

Vacuum Brazing System for Ultra hard Materials

Vacuum Brazing Device

Brand Name: CTSTC

Model Number: ZT-ZKHJ280

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Chamber: Quartz Glass Tube

Guarantee: 1 Year

Vacuum Process: 1. Cleaning, 2. Fixing Flux, 3. Drying At The Temperature Of 200℃ For 30mins, 4. Brazing

Chilling: Water Cooling

Brazing Capability: CNGA1204 Appr. 600pcs/cycle

Support and Services:

The Vacuum Brazing Machine product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to provide assistance with installation, operation, troubleshooting, and maintenance of the machine. Additionally, we offer training programs to help customers maximize the capabilities of the Vacuum Brazing Machine and achieve their desired outcomes. Our goal is to deliver top-notch support and services to meet the needs of our customers and ensure the success of their brazing operations.
