PCD/PCBN Inserts Brazing Vacuum Brazing Machine with 180*500mm Chamber Size and 950° Max Temperature

Product Description:

The Diamond Vacuum Brazing Device is a state-of-the-art Vacuum Soldering Equipment designed for high precision brazing applications. This PCD/PCBN Tools Vacuum Brazing Machine is equipped with advanced features to ensure efficient and reliable brazing processes.

Machine Type: Vacuum Welding/Brazing Machine

Vacuum Process:

1. Cleaning
2. Fixing Flux
3. Drying At The Temperature Of 200℃ For 30mins
4. Brazing

Power Supply: 380V-3Phases-5Wires/20KW

Chamber: Quartz Glass Tube

Operation Mode: Automatic

The Vacuum Brazing Machine is built to provide precise control over the brazing process, ensuring high-quality results every time. With a power supply of 380V-3Phases-5Wires/20KW, this machine is capable of handling a wide range of brazing tasks with ease.

Its Quartz Glass Tube chamber is designed to withstand high temperatures and maintain a clean environment for the brazing process. The automatic operation mode allows for convenient and efficient operation, reducing the need for manual intervention.

Whether you are brazing PCD/PCBN tools or other precision components, this Vacuum Brazing Machine offers the reliability and accuracy needed for demanding applications. The cleaning, fixing flux, drying, and brazing processes are carried out seamlessly within the vacuum environment, ensuring a strong and durable bond between the materials.

With the Vacuum Brazing Machine, you can achieve consistent results with minimal effort. The advanced technology incorporated into this machine allows for precise control over the brazing parameters, resulting in high-quality joints that meet the strictest standards.

Invest in the Diamond Vacuum Brazing Device today and experience the benefits of a reliable and efficient brazing solution. Whether you are working with PCD/PCBN tools or other materials, this machine is designed to deliver exceptional performance and superior results.

Technical Parameters:

Applications:

Vacuum brazing machines are essential equipment in various industries due to their ability to create strong and reliable joints in materials. The CTSTC ZT-ZKHJ280 Vacuum Brazing Machine, originating from China, is a top-notch product suitable for a wide range of applications.

Product Application Occasions and Scenarios:

1. Aerospace Industry: The CTSTC Vacuum Brazing Machine is ideal for the aerospace sector where ultra-hard materials are commonly used. It can effectively braze components for aircraft engines, turbines, and other critical parts requiring high precision and durability.

2. Automotive Industry: Automotive manufacturers can benefit from the efficiency and precision of this vacuum soldering equipment. It can be used to braze parts for engines, transmissions, and exhaust systems, ensuring superior joint strength and longevity.

3. Tooling and Die Industry: The vacuum brazing system is perfect for creating high-quality tools and dies used in various manufacturing processes. It can handle ultra-hard materials with ease, making it suitable for producing cutting tools, drills, and inserts.

4. Energy Sector: Companies in the energy sector, such as those involved in oil and gas exploration, can utilize the CTSTC Vacuum Brazing Machine for fabricating components that withstand harsh operating conditions. It is ideal for brazing parts used in drilling equipment and pumps.

With its CE certification, the CTSTC ZT-ZKHJ280 Vacuum Brazing Machine guarantees high quality and compliance with international standards. Customers can order a minimum quantity of 1 unit at a negotiable price, with packaging details ensuring safe delivery in a plywood box within 45-60 days.

The payment terms accepted include TT, LC, and Western Union, providing flexibility to buyers. Additionally, the machine comes with a 1-year warranty, giving users peace of mind regarding its reliability and performance.

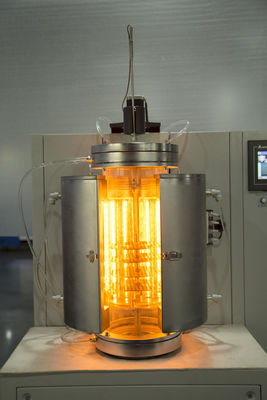

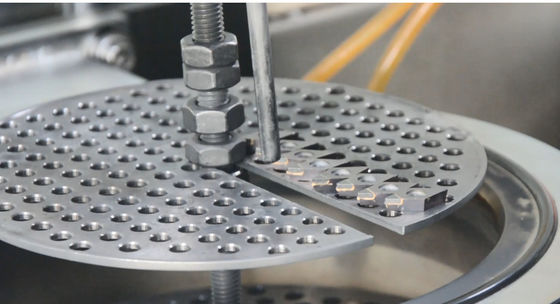

Operating in automatic mode, the vacuum brazing machine features water cooling for efficient heat dissipation. The 18pcs halogen tubes serve as the heating source, enabling precise control over the brazing process. With a brazing capability of approximately 600 pieces per cycle for CNGA1204, this machine offers productivity and consistency in joint formation.

Customization:

Product Customization Services for the Vacuum Brazing Machine:

- Brand Name: CTSTC

- Model Number: ZT-ZKHJ280

- Place of Origin: CHINA

- Certification: CE

- Minimum Order Quantity: 1

- Price: Negotiable

- Packaging Details: plywood box

- Delivery Time: 45-60 days

- Payment Terms: TT/LC/Western Union

- Chilling: Water Cooling

- Chamber: Quartz Glass Tube

- Weight: 600kg

- Machine Type: Vacuum Welding/Brazing Machine

- Power Supply: 380V-3Phases-5Wires/20KW

Key Features:

- Vacuum Brazing Machine

- Vacuum Brazing System for Ultra hard Materials

- High Temperature Vacuum Welder

Support and Services:

Product Technical Support and Services for Vacuum Brazing Machine:

- Comprehensive technical support for installation, operation, and maintenance of the machine.

- Troubleshooting assistance to address any issues that may arise during use.

- Training programs to educate users on the proper utilization and care of the equipment.

- Regular maintenance and calibration services to ensure optimal performance and longevity of the machine.

- Access to spare parts and replacement components to facilitate quick repairs and minimize downtime.
