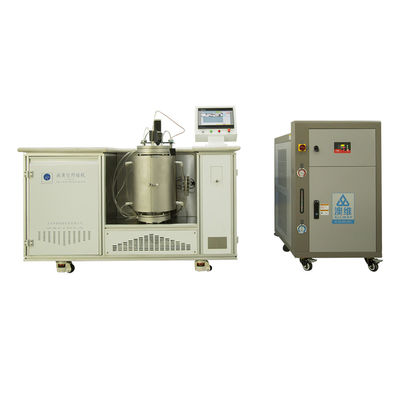

950° Max Temperature Vacuum Soldering Equipment with Advanced Features and Quartz Glass Tube Chamber

Product Description:

The Vacuum Brazing Machine is a cutting-edge piece of equipment designed for high-precision brazing applications, particularly ideal for PCD/PCBN tools. This advanced Vacuum Brazing Device offers a comprehensive solution for various processes, including cleaning, fixing flux, drying at the temperature of 200℃ for 30 minutes, and brazing.

With dimensions measuring L1600×W950×H900mm, this Vacuum Brazing Machine provides ample space for accommodating a wide range of workpieces, ensuring flexibility and efficiency in operation.

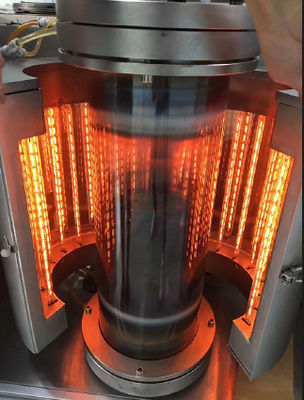

Equipped with 18pcs halogen tubes as the heating source, this Vacuum Welding/Brazing Machine offers rapid and uniform heating, contributing to precise control over the brazing process. The use of halogen tubes ensures consistent performance and reliability, making it an ideal choice for demanding brazing applications.

Operating as a vacuum system, this Vacuum Brazing Machine creates an environment conducive to achieving high-quality brazed joints with minimal oxidation and distortion. The vacuum environment helps in maintaining the integrity of the materials being brazed, resulting in superior bond strength and overall component quality.

The maximum temperature capability of 950° enables this Vacuum Brazing Machine to handle a wide range of materials and applications, making it a versatile and indispensable tool for various industries.

Overall, the Vacuum Brazing Machine is a highly efficient and reliable solution for PCD/PCBN tools vacuum brazing and other precision brazing applications. Its advanced features, including the vacuum process, precise heating source, and spacious dimensions, make it an essential asset for achieving superior brazed joints with exceptional quality and consistency.

Technical Parameters:

Applications:

The Vacuum Brazing Machine by CTSTC (Model: ZT-ZKHJ280) is a top-of-the-line High Temperature Vacuum Welder designed for precision Vacuum Soldering applications. Manufactured in CHINA , this machine comes with CE Certification ensuring quality and safety.

With a Max Vacuum Rate of 10^-2 Pa and a Chamber Size of 180*500mm, the CTSTC Vacuum Brazing Machine is ideal for applications such as PCD/PCBN Inserts Brazing . Its compact dimensions of L1600×W950×H900mm and weight of 600kg make it suitable for various industrial settings.

Whether you are in the automotive, aerospace, or tooling industry, this Vacuum Brazing Machine offers unparalleled performance and reliability. Its advanced technology ensures precise control over the brazing process, resulting in high-quality joints and superior finished products.

The CTSTC Vacuum Brazing Machine is perfect for small-scale operations as well as large-scale production. With a Minimum Order Quantity of 1 and Price being Negotiable , it caters to the needs of different businesses. The Packaging Details in a plywood box ensure safe transportation, while the Delivery Time of 45-60 days ensures timely arrival.

Choose from a variety of Payment Terms including TT, LC, or Western Union for added convenience. Whether you are looking to upgrade your current brazing equipment or start a new project, the CTSTC Vacuum Brazing Machine is the perfect choice for all your soldering needs.

Customization:

Customize your Vacuum Brazing Machine with CTSTC's Product Customization Services:

- Brand Name: CTSTC

- Model Number: ZT-ZKHJ280

- Place of Origin: CHINA

- Certification: CE

- Minimum Order Quantity: 1

- Price: Negotiable

- Packaging Details: plywood box

- Delivery Time: 45-60 days

- Payment Terms: TT/LC/Western Union

- Application: PCD/PCBN Inserts Brazing

- Warranty: 1 Year

- Chamber Size: 180*500mm

- Power Supply: 380V-3Phases-5Wires/20KW

- Chilling: Water Cooling

Enhance your Vacuum Brazing System for Ultra hard Materials with our tailored product customization services. Perfect for Vacuum Brazing Machine and Vacuum Soldering Equipment.

Support and Services:

The Vacuum Brazing Machine product includes comprehensive Product Technical Support and Services to assist customers in maximizing the efficiency and performance of their equipment. Our team of experts is available to provide guidance on machine operation, troubleshooting, and maintenance to ensure optimal functionality. Additionally, we offer training programs to educate users on best practices and safety protocols when operating the Vacuum Brazing Machine.
