Automatic Vacuum Brazing Machine for Medical Device Manufacturing Max Vacuum Rate 10 -2 Pa and Max Temperature 950°

Product Description:

The Vacuum Brazing Machine is a state-of-the-art piece of equipment designed for precision brazing in a vacuum environment. This advanced Vacuum Welding Machine is specifically engineered for brazing PCD/PCBN inserts, providing unmatched performance and reliability.

One of the key features of this Vacuum Brazing Device is its spacious chamber size, measuring 180*500mm. This generous chamber size allows for efficient loading and brazing of multiple components simultaneously, increasing productivity and throughput.

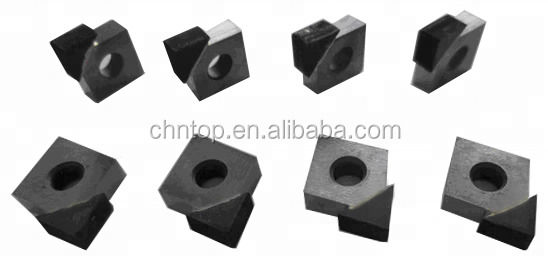

The Vacuum Brazing Machine excels in brazing CNGA1204 inserts, with a capability of approximately 600 pieces per cycle. This high capacity ensures that large quantities of inserts can be brazed quickly and accurately, meeting the demands of high-volume production environments.

Designed for the specific application of PCD/PCBN inserts brazing, this machine is tailored to deliver exceptional results for this critical process. The precision and control offered by the Vacuum Brazing Machine ensure that PCD/PCBN tools are brazed to perfection, maintaining their integrity and performance.

Equipped with a power supply of 380V-3Phases-5Wires/20KW, this Vacuum Welding Machine is capable of delivering the necessary energy for efficient brazing operations. The reliable power supply ensures consistent performance and stability during the brazing process, contributing to the overall quality of the finished products.

Applications:

The CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is suitable for various industries and scenarios where precise and reliable brazing of PCD/PCBN Inserts is required. The machine's heating source consists of 18pcs Halogen Tubes, allowing for efficient heating up to a maximum temperature of 950° within the Quartz Glass Tube chamber.

Whether you are in the tooling industry, automotive sector, or aerospace field, the CTSTC Vacuum Brazing Machine ZT-ZKHJ280 offers exceptional performance and versatility. Its robust construction and advanced features make it a preferred choice for demanding applications that involve brazing of ultra hard materials.

With a weight of 600kg, this High Temperature Vacuum Welder is built for durability and long-term use. The minimum order quantity is 1, and the pricing is negotiable, making it accessible for both small-scale operations and large industrial facilities. The packaging details include a sturdy plywood box to ensure safe transportation, and the delivery time ranges from 45 to 60 days.

Additionally, the payment terms for the CTSTC ZT-ZKHJ280 Vacuum Brazing Machine support various options such as TT, LC, and Western Union, providing flexibility for customers worldwide. Whether you are looking to enhance your production processes or upgrade your brazing capabilities, this innovative machine offers a reliable solution for your specific needs.

Customization:

Product Customization Services for the Vacuum Brazing Machine:

Brand Name: CTSTC

Model Number: ZT-ZKHJ280

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Dimensions: L1600×W950×H900mm

Weight: 600kg

Brazing Capability: CNGA1204 Appr. 600pcs/cycle

Guarantee: 1 Year

Operation Mode: Automatic

Support and Services:

The Product Technical Support and Services for the Vacuum Brazing Machine include:

- Installation guidance and support

- Training for operation and maintenance

- Troubleshooting assistance for any issues

- Regular maintenance services to ensure optimal performance

- Spare parts availability and replacement services
