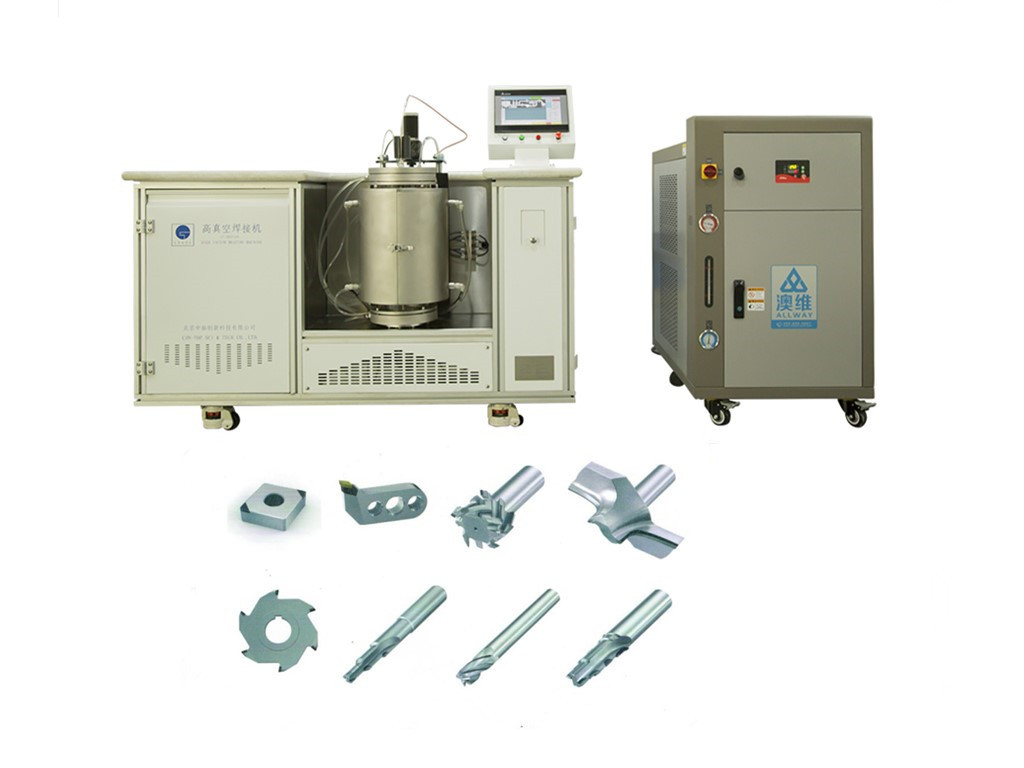

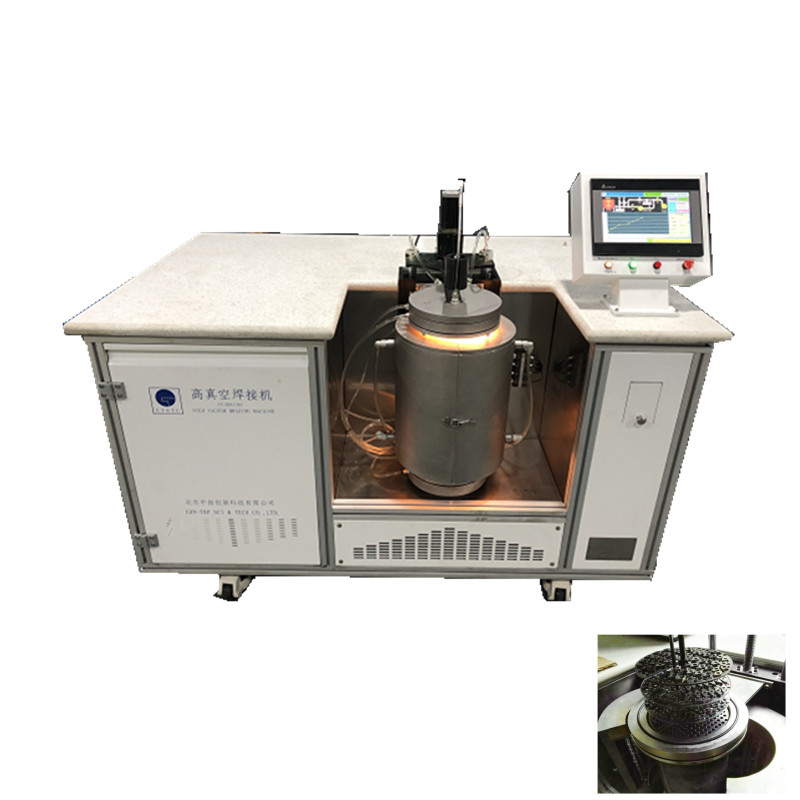

380V 20KW Vacuum Metallizing Machine for PCD/PCBN Inserts

Product Description:

Our Diamond Vacuum Brazing Device boasts a Power Supply of 380V-3Phases-5Wires/20KW, making it a powerful tool for your brazing needs. The Chamber Size is set at 180*500mm, allowing for larger-sized objects to be brazed with ease.

Our Vacuum Brazing Machine is a heavy-duty tool that weighs in at 600kg, which ensures stability and durability when in use. You can rely on this machine to last you for years to come, and we offer a 1-Year Warranty to give you peace of mind.

Our Vacuum Brazing Machine is designed to be easy to use, ensuring that you can get the job done quickly and efficiently. It is perfect for use in a variety of industries, from automotive to aerospace.

Overall, our Vacuum Brazing Machine is a must-have tool for anyone looking to achieve high-quality brazing results. Its reliability, power, and ease of use make it a valuable addition to any workshop. So why wait? Get your hands on our Vacuum Brazing Machine today and achieve unparalleled results!

Features:

• Product Name: Vacuum Brazing Machine
• Chamber: Quartz Glass Tube
• Weight: 600kg
• Vacuum Process:
  • 1. Cleaning
  • 2. Fixing Flux
  • 3. Drying At The Temperature Of 200℃ For 30mins
  • 4. Brazing
• Chamber Size: 180*500mm
• Max Vacuum Rate: 10^-2 Pa

Vacuum Brazing System for Ultra hard Materials, Vacuum Brazing Device, Vacuum Soldering Equipment

Applications:

The ZT-ZKHJ280 Vacuum Brazing Machine is perfect for a variety of scenarios. It is ideal for brazing small and medium-sized parts, including heat exchangers, radiators, and condensers. This machine is also suitable for brazing ceramic-metal, metal-glass, and metal-metal seals. The machine's chamber size of 180*500mm makes it perfect for a variety of applications, and it features a maximum temperature of 950°, making it suitable for a wide range of materials.

The ZT-ZKHJ280 Vacuum Brazing Machine features 18pcs Halogen Tubes as its heating source, providing quick and efficient heating. It is also designed with a 380V-3Phases-5Wires/20KW power supply, making it energy-efficient and cost-effective. The machine is easy to use and maintain, and it comes with a one-year warranty.

If you are looking for a high-quality vacuum brazing machine, the CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is an excellent choice. It is a versatile and reliable machine that is suitable for a wide range of applications. The minimum order quantity is one, and the price is negotiable. The machine is packaged in a plywood box for safe and secure shipping, and the delivery time is 45-60 days. Payment terms include TT, LC, and Western Union.

Packing and Shipping:

Product Packaging:

The Vacuum Brazing Machine will be carefully packaged to ensure safe delivery. It will be wrapped with protective materials and placed in a sturdy wooden crate. The crate will be clearly labeled with the product name and shipping information.

Shipping:

The Vacuum Brazing Machine will be shipped via a reputable carrier to ensure timely and safe delivery. Shipping costs will vary depending on the destination and shipping method selected. Once the product has been shipped, a tracking number will be provided to track the shipment's progress.
