Vacuum Chamber Automatic Welding/Brazing Machine for 600kg Quartz Glass Tube

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-ZKHJ280
Minimum Order Quantity 1
Price Negotiable
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 600kg Brazing Capability CNGA1204 Appr. 600pcs/cycle
Max Vacuum Rate 10^-2 Pa Chamber Size 180*500mm
Chamber Quartz Glass Tube Machine Type Vacuum Welding/Brazing Machine
Vacuum Process 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing Operation Mode Automatic
Highlight

Automatic Welding Vacuum Brazing Machine

,

Vacuum Chamber Welding Brazing Machine

,

600kg Welding Brazing Machine

Leave a Message
Product Description

Product Description:

The Vacuum Brazing Machine is a highly advanced device that comes equipped with a quartz glass tube chamber, which ensures that your brazing projects are carried out in a clean and controlled environment. This feature is essential for ensuring that the quality of your brazing work is not compromised by impurities or contaminants in the air.

Additionally, the Vacuum Brazing Machine is an automatic device, which means that it is easy to operate and requires minimal user input. This makes it an ideal choice for both experienced brazing professionals and beginners who are just starting with their brazing projects.

The Vacuum Brazing Machine is a high-quality product that is built to last. It comes with a 1-year warranty, which is a testament to the durability and reliability of this vacuum welding machine. Furthermore, the Vacuum Brazing Machine has a weight of 600kg and dimensions of L1600×W950×H900mm, making it a compact and space-saving device that can be easily integrated into any workspace.

In conclusion, if you are looking for a top-of-the-line vacuum brazing device that offers exceptional performance, precision, and reliability, the Vacuum Brazing Machine is the perfect choice for you. With its automatic operation mode, quartz glass tube chamber, and 1-year warranty, this vacuum welding machine is the ideal solution for all your brazing needs.

Vacuum Chamber Automatic Welding/Brazing Machine for 600kg Quartz Glass Tube 0

Features:

  • Product Name: Vacuum Brazing Machine
  • Chamber: Quartz Glass Tube
  • Operation Mode: Automatic
  • Power Supply: 380V-3Phases-5Wires/20KW
  • Dimensions: L1600×W950×H900mm
  • Brazing Capability: CNGA1204 Appr. 600pcs/cycle

This Vacuum Brazing Machine is also known as a Diamond Vacuum Brazing Device, High Temperature Vacuum Welder, or Vacuum Brazing Device.



Applications:

With CE certification, this machine is built to meet the highest international standards of quality and safety. It is available for a minimum order quantity of 1 unit at a negotiable price. The machine is packaged in a sturdy plywood box and is delivered within 45-60 days.

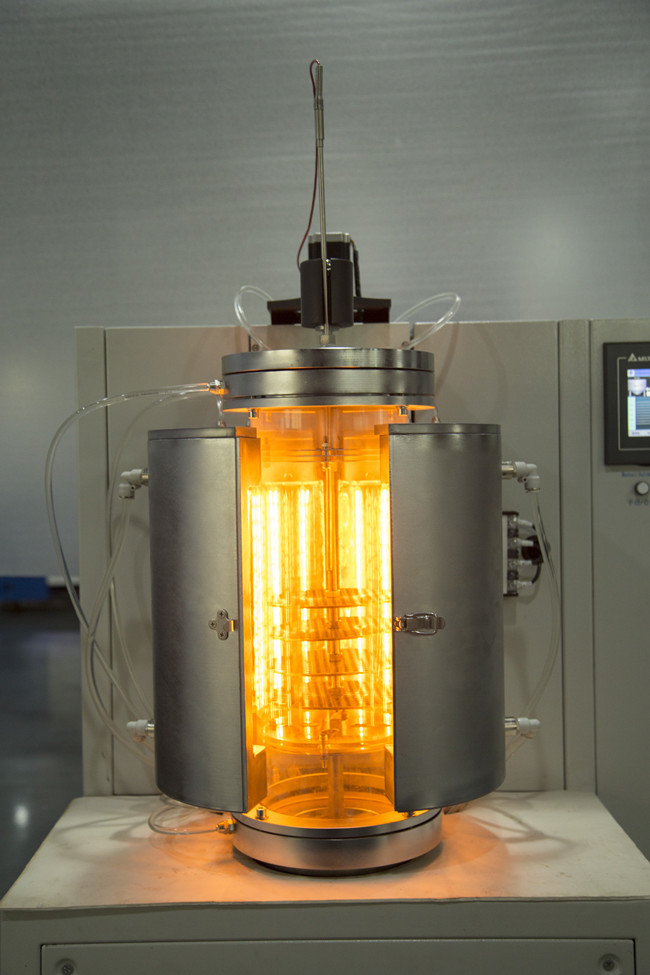

The CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is ideal for a variety of applications across multiple industries. The machine is water-cooled for efficient operation, and its chamber is made of high-quality quartz glass tube, which is highly resistant to thermal shock and chemical corrosion. The heating source of this machine is 18pcs halogen tubes, which provide quick and uniform heating.

The machine can reach a maximum temperature of 950°, making it perfect for high-temperature applications. It is equipped with a vacuum pumping system that creates a high vacuum environment in the chamber, ensuring a clean and contamination-free brazing process. The machine also features an advanced automatic control system, which ensures precise temperature control and high process repeatability.

The CTSTC ZT-ZKHJ280 Vacuum Brazing Machine is suitable for a wide range of occasions and scenarios, such as in the automotive, aerospace, and electronics industries. It is commonly used for brazing of diamond tools, grinding wheels, and other ultra-hard materials. The machine is incredibly versatile and can also be used for other applications such as annealing, sintering, and heat treatment.

The machine comes with a 1-year warranty, giving customers peace of mind knowing that they are investing in a reliable and durable machine. Payment terms are flexible and can be made via TT, LC, or Western Union. The CTSTC ZT-ZKHJ280 Vacuum Brazing System for Ultra-hard Materials is the perfect solution for companies looking for an efficient and reliable automatic vacuum machine for their PCD/PCBN processing needs.



Packing and Shipping:

Product Packaging:

  • The Vacuum Brazing Machine is securely packaged in a wooden crate to ensure safe transport and delivery.
  • The crate is labeled with the product name, dimensions, weight, and handling instructions.
  • The machine is protected with foam padding and shrink wrap to prevent damage during transit.

Shipping:

  • The Vacuum Brazing Machine is shipped directly from our warehouse to your location.
  • We offer various shipping options, including ground, air, and expedited delivery.
  • Once your order is processed, we will provide you with a tracking number so you can monitor the status of your shipment.
  • Please note that shipping costs may vary depending on your location and chosen delivery method.
