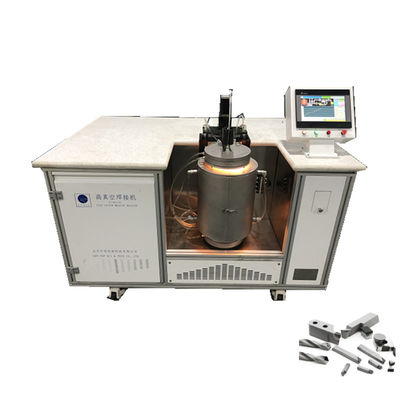

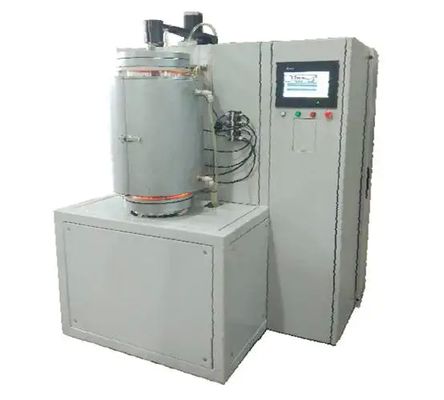

18pcs Halogen Tubes Tungsten Carbide Vacuum Brazing Machine with 10^-2 Pa Max Vacuum Rate

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-ZHKJ180
Minimum Order Quantity 1
Price Negotiable
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions L1600×W950×H900mm Chamber Size 180*500mm
Vacuum Process 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing Max Vacuum Rate 10^-2 Pa
Operation Mode Automatic Weight 600kg
Power Supply 380V-3Phases-5Wires/20KW Heating Source 18pcs Halogen Tubes
High Light

18pcs Halogen Tubes Vacuum Brazing Machine

,

Tungsten Carbide Vacuum Brazing Machine

,

10^-2 Pa Vacuum Brazing Machine

Leave a Message
Product Description

Product Description:

The Vacuum Brazing Machine is equipped with a powerful vacuum pump that can reach a maximum vacuum rate of 10^-2 Pa. This ensures that the brazing process is conducted in a controlled environment, free from any contaminants. The machine also has a maximum temperature of 950°, which is ideal for brazing diamond tools. The high temperature ensures that the brazing process is completed quickly, while the vacuum environment ensures that the diamond tools are brazed with precision and accuracy.

This Vacuum Brazing Machine is capable of brazing CNGA1204 Appr. 600pcs/cycle. This means that it can handle a large number of diamond tools in a single cycle, reducing production time and increasing efficiency. The machine is well-suited for PCD/PCBN Inserts Brazing, making it an ideal choice for companies in the diamond tool industry.

The Vacuum Brazing Machine is easy to use and maintain. It has a user-friendly interface that makes it easy to set up and operate. The machine is also designed to be easy to clean, ensuring that it remains in top condition for years to come. The machine is built to last, with high-quality components and materials that are designed to withstand the rigors of daily use.

In conclusion, the Vacuum Brazing Machine is a high-quality Diamond Vacuum Brazing Device that is designed to meet the needs of the modern diamond tool industry. With its large chamber size, powerful vacuum pump, high temperature, and brazing capability, this Vacuum Brazing Machine is ideal for PCD/PCBN Inserts Brazing. It is easy to use and maintain, making it a great investment for companies in the diamond tool industry that are looking to increase efficiency and productivity.

18pcs Halogen Tubes Tungsten Carbide Vacuum Brazing Machine with 10^-2 Pa Max Vacuum Rate 0

Technical Parameters:

Technical Parameters Description
Product Name Vacuum Brazing Machine
Power Supply 380V-3Phases-5Wires/20KW
Vacuum Process 1. Cleaning
2. Fixing Flux
3. Drying At The Temperature Of 200℃ For 30mins
4. Brazing
Guarantee 1 Year
Application PCD/PCBN Inserts Brazing
Max Vacuum Rate 10^-2 Pa
Brazing Capability CNGA1204 Appr. 600pcs/cycle
Chamber Size 180*500mm
Cooling Water Cooling
Operation Mode Automatic
Chamber Quartz Glass Tube
18pcs Halogen Tubes Tungsten Carbide Vacuum Brazing Machine with 10^-2 Pa Max Vacuum Rate 1

Applications:

Introducing the Vacuum Brazing System for Ultra hard Materials by CTSTC, model number ZT-ZHKJ180. This state-of-the-art Vacuum Welding Machine is designed to provide high-quality brazing results for PCD/PCBN inserts. Made in China, this product is CE certified and comes with a minimum order quantity of 1. The price is negotiable and the product is shipped in a sturdy plywood box. The delivery time for this product is 45-60 days. Payment terms accepted are TT/LC/Western Union.

The Vacuum Brazing System for Ultra hard Materials by CTSTC uses a four-step vacuum process to ensure high-quality brazing results. The process includes cleaning, fixing flux, drying at the temperature of 200℃ for 30 minutes, and brazing. The system is designed to work with PCD/PCBN inserts and comes with a water cooling system to ensure efficient cooling during the brazing process. The machine weighs 600kg and has dimensions of L1600×W950×H900mm.

This Vacuum Brazing System for Ultra hard Materials by CTSTC is suitable for a wide range of applications. It is ideal for use in industries such as aerospace, automotive, and manufacturing. The machine can be used for brazing different types of materials such as tungsten carbide, diamond, and cubic boron nitride.

Whether you are looking to improve the quality of your brazing results or looking to increase productivity, the Vacuum Brazing System for Ultra hard Materials by CTSTC is the perfect solution. With its advanced vacuum process and water cooling system, this machine is designed to provide high-quality brazing results every time.

Order your Vacuum Brazing System for Ultra hard Materials by CTSTC today and experience the difference it can make to your brazing process.

Keywords: Vacuum Brazing System for Ultra hard Materials, Vacuum Welding Machine, Vacuum Brazing System for Ultra hard Materials.

18pcs Halogen Tubes Tungsten Carbide Vacuum Brazing Machine with 10^-2 Pa Max Vacuum Rate 2

Support and Services:

The Vacuum Brazing Machine is a complex piece of equipment that requires proper installation, operation, and maintenance in order to ensure optimal performance and longevity. Our product technical support team is available to assist you with any questions or concerns you may have regarding the machine. We offer a range of services including:

  • Installation assistance and guidance
  • Operator training and education
  • Regular maintenance and repair services
  • Upgrades and retrofits to improve performance and efficiency
  • Remote technical support and troubleshooting

We are committed to providing our customers with the highest level of support and service possible. If you have any questions or require assistance with your Vacuum Brazing Machine, please do not hesitate to contact us.



Packing and Shipping:

Product Packaging:

  • The Vacuum Brazing Machine will be packed securely in a wooden crate.
  • The crate will be lined with foam padding to prevent any damage during transportation.
  • All necessary accessories and manuals will be included in the crate.

Shipping:

  • The Vacuum Brazing Machine will be shipped via a reputable carrier.
  • The shipping cost will be calculated based on the destination and weight of the crate.
  • A tracking number will be provided to the customer once the machine has been shipped.
