Automated 950° Quartz Glass Tube Vacuum Brazing Machine With Water Cooling

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-ZHKJ180
Minimum Order Quantity 1
Price Negotiable
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Guarranty 1 Year Power Supply 380V-3Phases-5Wires/20KW
Chilling Water Cooling Max Temperature 950°
Chamber Quartz Glass Tube Max Vacuum Rate 10^-2 Pa
Operation Mode Automatic Vacuum Process 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing
High Light

Water Cooling Vacuum Brazing Machine

,

Automated Vacuum Brazing Machine

,

Quartz Glass Tube Vacuum Brazing Machine

Leave a Message
Product Description

Product Description:

One of the key features of this vacuum soldering equipment is its water cooling system. The machine is equipped with a highly efficient water cooling system that allows it to operate at peak performance levels for extended periods of time. This ensures that the machine remains cool and does not overheat during use, which is essential for maintaining consistent and high-quality results.

Another important feature of the Vacuum Brazing Machine is its maximum vacuum rate of 10^-2 Pa. This high level of vacuum ensures that the machine is capable of achieving the necessary conditions for vacuum brazing, which is essential for producing high-quality products.

The chamber of the Vacuum Brazing Machine is made from quartz glass tube. This material is highly resistant to heat and is capable of withstanding high temperatures without cracking or breaking. This ensures that the machine is capable of operating at high temperatures without any risk of damage to the chamber.

The brazing capability of this machine is also impressive. It is capable of brazing CNGA1204 at approximately 600 pieces per cycle. This allows for efficient and high-volume production of brazed products, which is ideal for commercial applications.

Finally, the maximum temperature of the Vacuum Brazing Machine is 950°. This high temperature range allows for a wide variety of materials to be brazed, including diamond and tungsten carbide.

In conclusion, the Vacuum Brazing Machine is a high-quality product that is essential for vacuum brazing applications. Its water cooling system, high vacuum rate, quartz glass tube chamber, and impressive brazing capability make it an ideal choice for producing diamond vacuum brazing devices, tungsten carbide vacuum brazing machines, and other similar products.

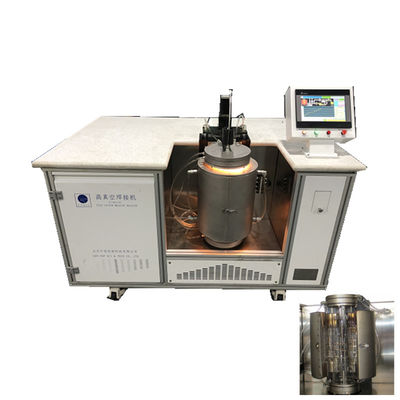

Automated 950° Quartz Glass Tube Vacuum Brazing Machine With Water Cooling 0

Technical Parameters:

Brazing Capability CNGA1204 Appr. 600pcs/cycle
Application PCD/PCBN Inserts Brazing
Guarranty 1 Year
Power Supply 380V-3Phases-5Wires/20KW
Operation Mode Automatic
Vacuum Process 1.Cleaning,2.Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing
Machine Type Vacuum Welding/Brazing Machine
Dimensions L1600×W950×H900mm
Max Vacuum Rate 10^-2 Pa
Chilling Water Cooling

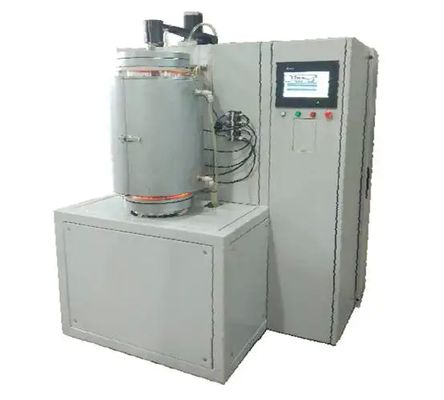

Automated 950° Quartz Glass Tube Vacuum Brazing Machine With Water Cooling 1

Applications:

The Vacuum Brazing Machine is capable of brazing CNGA1204, which allows for approximately 600pcs/cycle. This makes it efficient and suitable for large-scale production. The maximum temperature the machine can reach is 950 degrees, which is perfect for the brazing process.

The Vacuum Brazing Machine is ideal for various occasions and scenarios. It can be used in industries that require high precision and accuracy, such as the automotive and aerospace industries. It can also be used in the manufacturing of tools, such as cutting tools, drilling tools, and milling tools. The Quartz Glass Tube chamber ensures that the brazing process is done in an environment that is free from impurities, thus ensuring the quality of the end product.

The Vacuum Brazing Machine is designed to be user-friendly, making it easy to operate and maintain. The machine is durable and can handle continuous usage without breaking down. It is a great investment for businesses that require vacuum welding machines or vacuum soldering equipment.

Automated 950° Quartz Glass Tube Vacuum Brazing Machine With Water Cooling 2

Support and Services:

The Vacuum Brazing Machine product technical support and services include:

  • Installation and commissioning assistance
  • Training for machine operation and maintenance
  • Regular maintenance and service packages
  • Remote technical support
  • On-site technical support for complex issues
  • Upgrades and retrofits for improved performance and functionality
Automated 950° Quartz Glass Tube Vacuum Brazing Machine With Water Cooling 3

Packing and Shipping:

Product Packaging:

  • The Vacuum Brazing Machine will be packed securely in a wooden crate to prevent any damage during transportation.
  • The crate will be labeled with the product name and other necessary information for identification.
  • Inside the crate, the machine will be wrapped in a protective material for further safety.

Shipping:

  • The Vacuum Brazing Machine will be shipped via a reliable and trusted shipping company.
  • The shipping company will be responsible for delivering the product to the customer's location.
  • The customer will be provided with a tracking number to track the shipment of the product.
  • The shipping cost will be included in the total price of the product.
