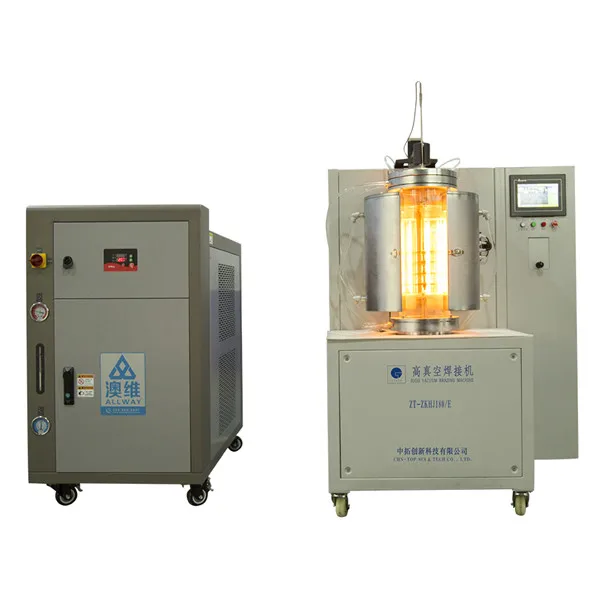

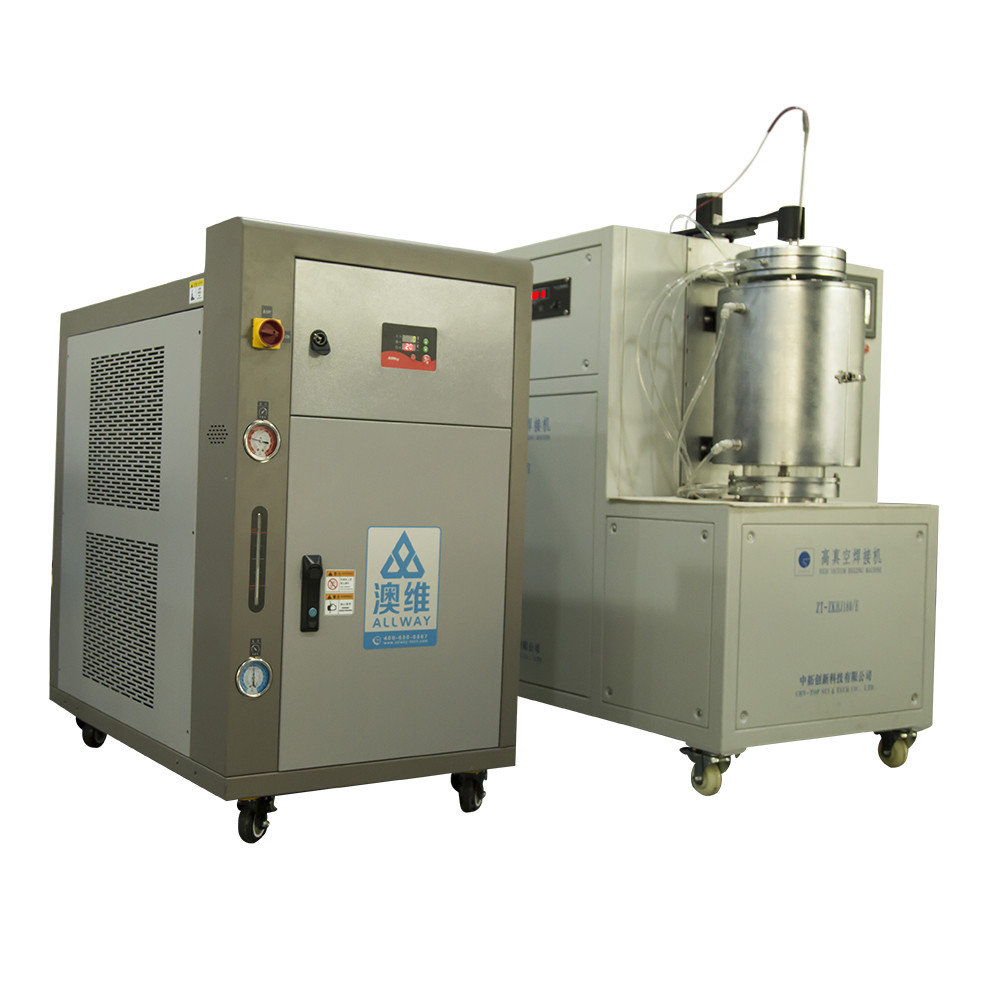

Halogen Tube Vacuum Welding Machine Automatic Vacuum Brazing Equipment

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-ZHKJ180
Minimum Order Quantity 1
Price Negotiable
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Chamber Size 180*500mm Guarranty 1 Year
Max Vacuum Rate 10^-2 Pa Application PCD/PCBN Inserts Brazing
Heating Source 18pcs Halogen Tubes Vacuum Process 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing
Operation Mode Automatic Machine Type Vacuum Welding/Brazing Machine
High Light

Halogen Tube Vacuum Welding Machine


Halogen Tube Vacuum Brazing Equipment


Automatic Vacuum Welding Machine

Leave a Message
Product Description

Product Description:

The Diamond Vacuum Brazing Device represents the pinnacle of modern industrial brazing technology, combining state-of-the-art engineering with exceptional quality control to provide an unrivaled solution for high-precision metal joining. At the heart of this device is its robust and transparent chamber, crafted from high-quality quartz glass tube, which ensures durability while providing an unparalleled view of the brazing process. This feature not only enhances monitoring but also adds an extra layer of safety for operators.

One of the most critical factors in vacuum brazing is temperature control, and this device exceeds expectations with its advanced chilling system. Utilizing water cooling, the machine maintains optimal temperatures throughout the brazing cycle, ensuring consistent and high-quality joints. The water cooling system is designed to work efficiently, keeping the heat generated during the process under control, and preventing any overheating that could compromise the integrity of the brazed components.

The chamber size of this tungsten carbide vacuum brazing machine, measuring 180*500mm, is ample for accommodating a variety of parts and assemblies, allowing for flexibility in production. This size is ideally suited for both small intricate pieces and larger components, making it a versatile choice for different brazing needs. The spacious chamber ensures that there is sufficient room for the creation of clean and strong brazed joints on a multitude of shapes and materials.

Constructed with an eye for ergonomics and space efficiency, the Diamond Vacuum Brazing Device boasts compact dimensions of L1600×W950×H900mm. This allows the machine to be easily integrated into existing production lines without requiring extensive modifications or additional space. Its thoughtful design ensures that it remains unobtrusive, yet accessible for maintenance and daily operation. The dimensions have been carefully considered to balance the need for a spacious working area with the practical limitations of floor space in industrial settings.

When it comes to reliability, this machine does not disappoint. Customers can have peace of mind with a 1-year guarantee that covers the Diamond Vacuum Brazing Device. This guarantee underscores the manufacturer's confidence in the durability and performance of the machine. It ensures that any issues related to manufacturing defects or material failure within this period will be addressed promptly, minimizing downtime and maintaining productivity.

Overall, the Diamond Vacuum Brazing Device is a stellar example of engineering excellence. It is a perfect fit for industries that require high-strength, precision brazed joints such as aerospace, automotive, and tool manufacturing. Its use of a quartz glass tube chamber, paired with the water cooling system, ensures a clear, controlled, and safe environment for all your brazing needs. The chamber size is well-suited for a variety of applications, and the machine's dimensions make it a practical addition to any workspace. With a solid guarantee, customers can invest in this Tungsten Carbide Vacuum Brazing Machine with confidence, knowing that they are acquiring a reliable, high-performance tool that will serve them well for years to come.

Halogen Tube Vacuum Welding Machine Automatic Vacuum Brazing Equipment 0


  • Product Name: Vacuum Brazing Machine
  • Power Supply: 380V-3Phases-5Wires/20KW
  • Vacuum Process:
    • Cleaning
    • Fixing Flux
    • Drying At The Temperature Of 200℃ For 30mins
    • Brazing
  • Machine Type: Vacuum Welding/Brazing Machine
  • Max Vacuum Rate: 10^-2 Pa
  • Operation Mode: Automatic

Technical Parameters:

Parameter Specification
Vacuum Process 1.Cleaning, 2.Fixing Flux, 3.Drying At The Temperature Of 200℃ For 30mins, 4.Brazing
Chamber Quartz Glass Tube
Chilling Water Cooling
Application PCD/PCBN Inserts Brazing
Operation Mode Automatic
Max Temperature 950°
Dimensions L1600×W950×H900mm
Guarantee 1 Year
Max Vacuum Rate 10^-2 Pa
Weight 600kg
Halogen Tube Vacuum Welding Machine Automatic Vacuum Brazing Equipment 1


The CTSTC ZT-ZHKJ180 is a state-of-the-art Tungsten Carbide Vacuum Brazing Machine designed to provide exceptional brazing capabilities for various industrial applications. This machine originates from CHINA and comes with a prestigious CE certification, ensuring its compliance with international standards. The minimum order quantity for this machine is one unit, with a negotiable price, providing flexibility for businesses of all sizes to acquire this technology. Packaging details are meticulously considered, with each unit being securely packed in a sturdy plywood box to ensure its safety during transit.

Once an order is placed, the estimated delivery time for the ZT-ZHKJ180 Vacuum Brazing Machine is between 45 to 60 days. Payment terms are versatile, with options such as TT/LC/Western Union available, catering to the customer's convenience. One of the striking features of this machine is its chilling system, which utilizes water cooling to efficiently manage the temperature during the brazing process. This feature extends the machine's operational life and ensures consistent performance.

The CTSTC ZT-ZHKJ180 is specifically engineered for brazing tungsten carbide components and boasts the capacity to brazing approximately 600 pieces of CNGA1204 per cycle, making it an invaluable asset for mass production environments. With a weight of 600kg, this robust machine is built to last and withstand the demands of continuous industrial use. Its automatic operation mode simplifies the brazing process, allowing for minimal human intervention and ensuring uniformity and precision in the finished products.

The vacuum process of the CTSTC ZT-ZHKJ180 involves multiple stages, starting with cleaning, followed by fixing flux, then drying at the temperature of 200℃ for 30 minutes, and finally, the brazing stage. This meticulous process yields impeccable results, making this machine a go-to choice for those needing a reliable Vacuum Welding Machine. The high-temperature vacuum welder aspect of this machine makes it perfect for applications that require high-strength, high-quality welds, such as in the aerospace, automotive, and tool & die industries.

In conclusion, the CTSTC ZT-ZHKJ180 Tungsten Carbide Vacuum Brazing Machine is an essential piece of equipment for businesses looking for a high-quality, efficient, and reliable solution for their brazing needs. Its versatile applications and automatic operation make it suitable for a variety of occasions and scenarios where precision and volume production are critical.



Brand Name: CTSTC

Model Number: ZT-ZHKJ180

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Brazing Capability: CNGA1204 Appr. 600pcs/cycle

Chilling: Water Cooling

Heating Source: 18pcs Halogen Tubes

Max Temperature: 950°

Operation Mode: Automatic

The CTSTC ZT-ZHKJ180 is a high-performance Vacuum Brazing Machine designed for precision brazing applications. This Vacuum Brazing Device is the perfect solution for professionals looking for an Automatic Vacuum Machine for PCD/PCBN materials. With a robust water cooling system and automatic operation mode, this machine offers reliability and efficiency for your brazing needs.

Halogen Tube Vacuum Welding Machine Automatic Vacuum Brazing Equipment 2

Support and Services:

Our Vacuum Brazing Machine comes with comprehensive technical support and services designed to ensure the smooth operation and maintenance of your equipment. Our team of experienced engineers and technicians is dedicated to providing expert advice and assistance for any technical issues you may encounter.

We offer a range of services including installation guidance, operational training, and preventative maintenance tips to keep your machine running at its optimal performance. Our support also encompasses troubleshooting for any operational challenges, as well as guidance on proper usage and safety procedures.

In the event of a technical malfunction, our diagnostic services are available to help identify the issue and advise on the necessary steps to rectify the problem. We provide detailed instructions for parts replacement and can offer recommendations for spare parts and consumables that are compatible with your Vacuum Brazing Machine.

To ensure your equipment continues to operate efficiently, we offer periodic maintenance checks and servicing updates. Our technical support team is dedicated to helping you extend the life of your machine and maximize its productivity.

Please consult the user manual for detailed operational instructions and do not hesitate to reach out to our technical support team for any assistance you may require. We are committed to providing you with the highest level of service to meet your needs.
