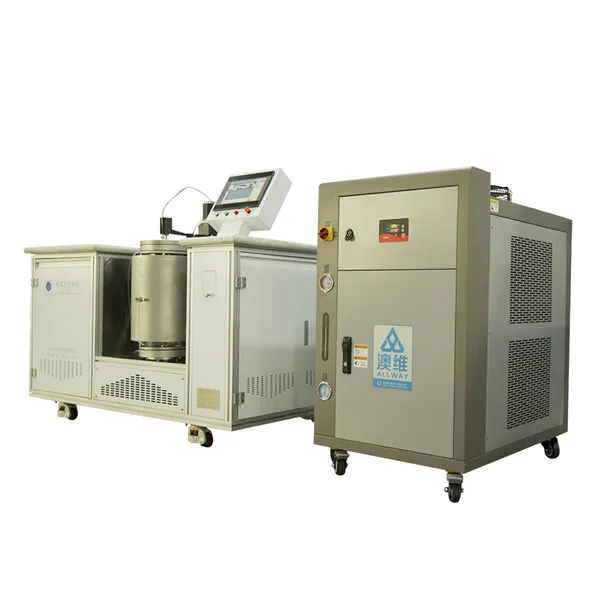

L1600×W950×H900mm Vacuum Brazing Machine For Precise Welding And Brazing

Dimensions L1600×W950×H900mm Vacuum Brazing Machine For Precise Welding And Brazing

Product Description:

The Vacuum Brazing Machine is a state-of-the-art automatic vacuum machine designed for efficient and precise welding of diamond tools. It is perfect for welding CNGA1204 inserts, with an impressive capacity of approximately 600 pieces per cycle. This machine is a must-have for any workshop that deals with diamond tools, as it not only increases productivity but also ensures high-quality welding with minimal deformation.

Powered by a 380V-3Phases-5Wires/20KW power supply, this machine is capable of achieving a maximum temperature of 950°, making it perfect for welding even the most heat-resistant materials. Its compact design, with dimensions of L1600×W950×H900mm, makes it easy to fit into any workshop without taking up too much space. The Vacuum Brazing Machine is equipped with 18 halogen tubes as the heating source, ensuring consistent and reliable heating for precise welding.

The Vacuum Brazing Machine is designed with efficiency and ease of use in mind. Its automatic vacuum function eliminates the need for manual vacuuming, saving time and effort for the operator. The machine also has a user-friendly control panel, making it easy to operate even for beginners. Its compact design and minimal maintenance requirements make it a cost-effective choice for any workshop.

With the Vacuum Brazing Machine, you can expect high-quality welding with minimal deformation. Its advanced welding technology ensures that the diamond tools are firmly bonded without any gaps or cracks. This not only increases the longevity of the tools but also improves the overall performance of the tools. The machine is also capable of welding different types of materials, making it a versatile choice for any workshop.

Investing in the Vacuum Brazing Machine means investing in high efficiency and productivity. With its automatic vacuum function and high welding capacity, it can significantly reduce the time and effort spent on welding, allowing you to focus on other important tasks. The machine's precise welding also eliminates the need for any rework, further saving time and increasing productivity.

The Vacuum Brazing Machine is a reliable and durable choice for any workshop. It is made from high-quality materials and is built to withstand the rigors of daily use. Its efficient heating source and advanced welding technology also ensure that the machine has a long lifespan, making it a cost-effective investment for any workshop.

The Vacuum Brazing Machine is the perfect choice for any workshop that deals with diamond tools. Its high capacity, efficiency, and precise welding make it an essential tool for increasing productivity and ensuring high-quality welding. With its compact design, easy operation, and minimal maintenance requirements, it is a valuable addition to any workshop. Invest in the Vacuum Brazing Machine today and see the difference it can make in your welding process!

• Brazing Capability: CNGA1204 Appr. 600pcs/cycle
• Power Supply: 380V-3Phases-5Wires/20KW
• Max Temperature: 950°
• Dimensions: L1600×W950×H900mm
• Heating Source: 18pcs Halogen Tubes
• High Efficiency: Automatic vacuum function and high welding capacity
• Precise Welding: Advanced welding technology for firm bonding and minimal deformation
• Minimal Deformation: Ensures high-quality welding without any gaps or cracks
• Easy Operation: User-friendly control panel for easy operation
• Compact Design: Fits into any workshop without taking up too much space

Features:

• Product Name: Vacuum Brazing Machine
• Brazing Capability: CNGA1204 Appr. 600pcs/cycle
• Guarranty: 1 Year
• Vacuum Process:
  • Cleaning
  • Fixing Flux
  • Drying At The Temperature Of 200℃ For 30mins
  • Brazing
• Power Supply: 380V-3Phases-5Wires/20KW
• Chilling: Water Cooling
• Automatic Vacuum Machine for PCD/PCBN
• Automatic Vacuum Machine for PCD/PCBN Tools

Technical Parameters:

Applications:

The Vacuum Brazing Machine is a highly advanced and efficient automatic vacuum machine designed for brazing PCD/PCBN/Ceramic Tools in the manufacturing industry. Developed and manufactured by CTSTC, a leading company in the field of vacuum brazing technology, this machine delivers exceptional performance and superior results.

• Brand Name: CTSTC
• Model Number: ZT-ZHKJ180
• Place of Origin: CHINA
• Certification: CE
• Minimum Order Quantity: 1
• Price: Negotiable
• Packaging Details: Plywood Box
• Delivery Time: 45-60 days
• Payment Terms: TT/LC/Western Union
• Operation Mode: Automatic
• Weight: 600kg
• Brazing Capability: CNGA1204 Appr. 600pcs/cycle
• Chamber Size: 180*500mm
• Chamber: Quartz Glass Tube

The Vacuum Brazing Machine - CTSTC ZT-ZHKJ180 is specifically designed for the brazing process in the PCD/PCBN/Ceramic Tools manufacturing industry. It is suitable for a wide range of tools such as diamond tools, carbide tools, and ceramic tools. The machine is ideal for brazing operations involving high precision and complex shapes.

• Automatic Operation: The machine is fully automatic, which reduces the need for manual labor and ensures consistent and accurate results.
• High Efficiency: With its advanced technology and design, the machine can complete the brazing process quickly and efficiently, saving time and increasing productivity.
• High Precision: The machine has a high precision brazing capability, ensuring precise and accurate results every time.
• Stable Performance: The Vacuum Brazing Machine is built with high-quality components and materials, ensuring stable and reliable performance.

The Vacuum Brazing Machine uses the principle of vacuum brazing, which involves heating the PCD/PCBN/Ceramic Tools in a vacuum chamber to a high temperature and then cooling it down. This process creates a strong bond between the tool and the brazing material, resulting in a durable and high-quality product.

The Vacuum Brazing Machine - CTSTC ZT-ZHKJ180 is a top-of-the-line automatic vacuum machine designed for the PCD/PCBN/Ceramic Tools manufacturing industry. With its advanced technology, high efficiency, and precise performance, it is an essential tool for companies looking to improve their brazing process and achieve superior results.

Customization:

Brand Name: CTSTC

Model Number: ZT-ZHKJ180

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Brazing Capability: CNGA1204 Appr. 600pcs/cycle

Machine Type: Vacuum Welding/Brazing Machine

Max Temperature: 950°

Guarranty: 1 Year

Max Vacuum Rate: 10^-2 Pa

• Diamond Vacuum Brazing Device
• Vacuum Brazing Device
• Customized Service
