ZT-ZKHJ180E Vacuum Brazing Machine For PCD PCBN Welding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ZT-ZKHJ180E Vacuum Brazing Machine For PCD/PCBN Welding With Competitive Price | Application | PCD/PCBN Inserts Welding |
|---|---|---|---|
| Guarranty | 1 Year | Chamber Size | φ180*500*4 (T)mm |
| Rate Power | 20KW | Max Temperature | 950℃ |
| After-sales Service | On-line Training Or Engineers Go Abroad To Training | Heating Source | 18 Pcs Halogen Tubes |
| Highlight | ZT-ZKHJ180E Vacuum Brazing Machine,PCBN Welding Vacuum Brazing Machine,PCD Welding Vacuum Brazing Machine |
||
Product Description

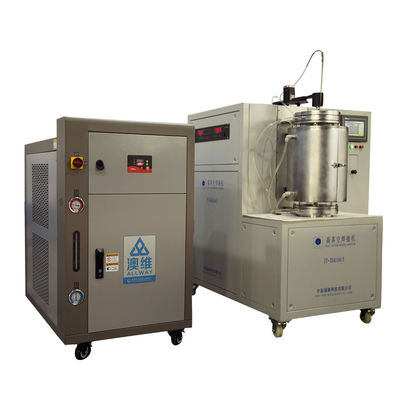

ZT-ZKHJ180E Vacuum Brazing Machine For PCD/PCBN Welding With Competitive Price
| Technology Parameters | |
| Dimensions | 1600*950*900mm (L*W*H) |
| Power Supply | 380V-3Phases-5Wires 50Hz |
| Chamber | Quartz Glass Tube |
| Rated Power | 20KW |
| Chamber Size | φ180*500*4 (T)mm |
| Max Temperature | 950° |
| Max Vacuum Rate | 10-6 Torr (10-4 Pa) |
| Brazing Vacuum Rate | 10-5 Torr (10-3 Pa) |
| Heating Source | 18 pcs halogen tubes |
| Chilling | Water cooling |
| Vacuum Process |
1. Cleaning 2. Fixing Flux 3. Drying :200℃ 30mins 4. Brazing |
Design Features:
• PLC control, SCR heating, touch panel, automatic running after simple setting.
• No oxidation, clean surface and environment-friendly.
• Brazing quantity is more than 500 pcs (CNGA1204), reducing total cost.
• The machine is fully automatic, once loaded, the cycle time is approximately 70-120 minutes.
• Reduction of distortion, even a very small tool insert can be brazed.
• Brazing strength is 2 times higher than induction welding.
• Advanced quartz stone for table-board, high temperature resistance.
MATERIALS
Natural diamond, Monocrystal diamond, PCD, PCBN, CVD and Cermet.
SUBSTRATE MATERIAL
Cermet, Tungsten carbide, Steel, Stainless steel, Steel alloy, Ceramic and etc.
PRODUCING STEPS
1, Washing, put the work piece into the Ultrasonic cleaning machine for 15-20 minutes;2, Fixing;
3, Drying, adjust the drying oven at 210 degree for 10-15 minutes;

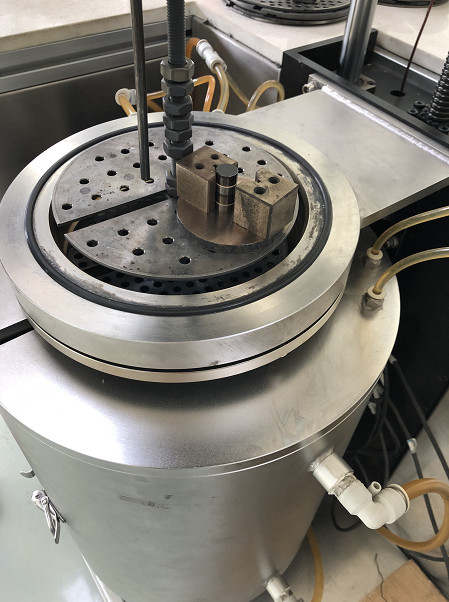

4, Brazing/Welding, put the work piece into the chamber, according to preset program welding;
5, Finished brazing / welding and below are the ready goods.
Package:
Bubble film - Carton box - Wooden box
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
