950℃ Temperature Vacuum Brazing Machine For Ultra Hard Material Tools Welding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 950℃ Temperature Vacuum Brazing Machine For Ultra-hard Material Tools Welding | Application | PCD/PCBN Inserts Welding |
|---|---|---|---|
| Power Supply | 380V-3Phases-5Wires | Chamber Size | φ180*500*4 (T)mm |
| Chilling | Water Cooling | Max Temperature | 950℃ |
| After-sales Service | On-line Training Or Engineers Go Abroad To Training | Heating Source | 18 Pcs Halogen Tubes |
| High Light | 950C Temperature Vacuum Brazing Machine,Hard Material Tools Vacuum Brazing Machine,PCBN Inserts Brazing Welding Machine |
||
Product Description
950℃ Temperature Vacuum Brazing Machine For Ultra-hard Material Tools Welding
| Technology Parameters | |
| Dimensions | 1600*950*900mm (L*W*H) |
| Power Supply | 380V-3Phases-5Wires 50Hz |
| Chamber | Quartz Glass Tube |
| Rated Power | 20KW |
| Chamber Size | φ180*500*4 (T)mm |
| Max Temperature | 950° |
| Max Vacuum Rate | 10-6 Torr (10-4 Pa) |
| Brazing Vacuum Rate | 10-5 Torr (10-3 Pa) |
| Heating Source | 18 pcs halogen tubes |
| Chilling | Water cooling |
| Vacuum Process |
1. Cleaning 2. Fixing Flux 3. Drying :200℃ 30mins 4. Brazing |
Design Features:
• PLC control, SCR heating, touch panel, automatic running after simple setting.
• No oxidation, clean surface and environment-friendly.
• Brazing quantity is more than 500 pcs (CNGA1204), reducing total cost.
• The machine is fully automatic, once loaded, the cycle time is approximately 70-120 minutes.
• Reduction of distortion, even a very small tool insert can be brazed.
• Brazing strength is 2 times higher than induction welding.
• Advanced quartz stone for table-board, high temperature resistance.
PRODUCING STEPS
1, Washing, put the work piece into the Ultrasonic cleaning machine for 15-20 minutes;2, Fixing;
3, Drying, adjust the drying oven at 210 degree for 10-15 minutes;
4, Brazing/Welding, put the work piece into the chamber, according to preset program welding;

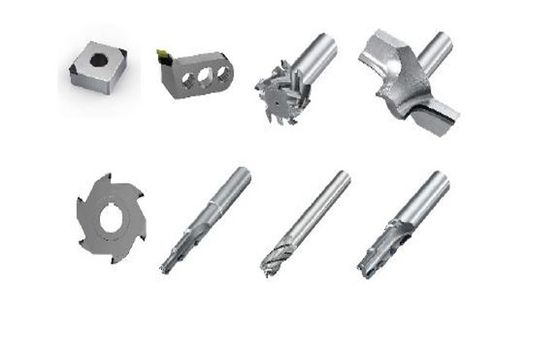

5, Finished brazing / welding and below are the ready goods.
Package:
Company Introduction:
Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.
We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
