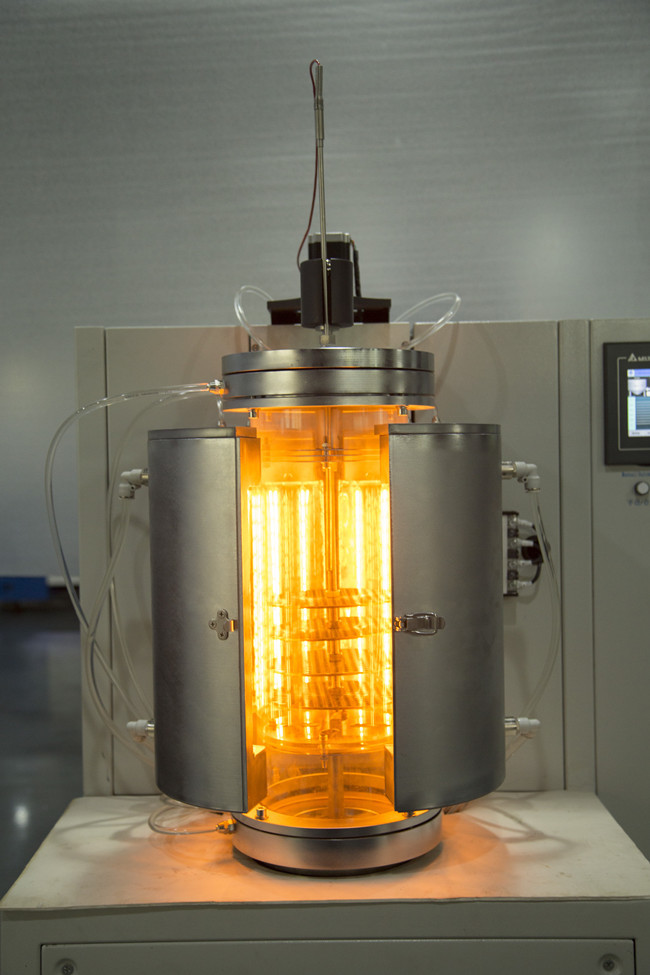

CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics

  • CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics
  • CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics
  • CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics
  • CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics
Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-ZKHJ180
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1600*950*900mm
Delivery Time 15-30 days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 20 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ZT-ZKHJ180 Vacuum Brazing Machine Application PCD/PCBN Inserts Brazing
Mode 2022 New Certificate CE
Chilling Water Cooling Size 1600*950*900
After-sales Service On-line Training Guarantee 2 Years
High Light

CE Vacuum Brazing Equipment

,

500pcs Vacuum Brazing Equipment

,

Tungsten Carbide Vacuum Brazing Equipment
Leave a Message
Product Description

ZT-ZKHJ180 Vacuum Brazing Machine



ZT-ZKHJ180 is excellent for brazing ultra-hard materials (PCD/PCBN/MD/ND/CVD), tungsten carbide, ceramics, etc. It is fully automatic and easy to operate at high efficiency.

Materials: Natural Diamond, Mono Crystal Diamond, PCD, PCBN, CVD and Cermet.

Substrate Materials: Cermet, Tungsten Carbide, Steel, Stainless Steel, Steel Alloy, Ceramics, etc.



CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics 0



Design Features:



• PLC control, SCR heating, touch panel, automatic running after simple setting.

• No oxidation, clean surface and environment-friendly.

• Brazing quantity is more than 500 pcs (CNGA1204), reducing total cost.

• The machine is fully automatic, once loaded, the cycle time is approximately 70-120 minutes.

• Reduction of distortion, even a very small tool insert can be brazed.

• Brazing strength is 2 times higher than induction welding.

• Advanced quartz stone for table-board, high temperature resistance.





CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics 1



CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics 2CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics 3

CE Certified 500pcs Vacuum Brazing equipment For Tungsten Carbide, Ceramics 4





Technology Parameters
Dimensions 1600*950*900mm (L*W*H)
Power Supply 380V-3Phases-5Wires 50Hz
Chamber Quartz Glass Tube
Rated Power 20KW
Chamber Size φ180*500*4 (T)mm
Max Temperature 950°
Max Vacuum Rate 10-6 Torr (10-4 Pa)
Brazing Vacuum Rate 10-5 Torr (10-3 Pa)
Heating Source 18 pcs halogen tubes
Chilling Water cooling
Vacuum Process

Cleaning

Fixing Flux

Drying :200℃ 30mins

Brazing
