Size of Cross Table 210*160mm PCD/PCBN Materials Grinder with 4T Grooves and Adjustable Grinding Pressure 0-450N

Product Description:

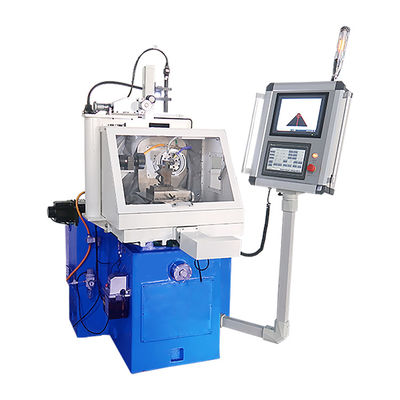

The PCD Grinding Machine is a versatile and efficient tool designed for precision grinding of PCD/PCBN tools and materials. With advanced features and high-quality construction, this machine is ideal for various industrial applications requiring accurate and reliable grinding performance.

Featuring a Tip Radius ranging from 0 to 70mm, the PCD Grinding Machine offers great flexibility in grinding different sizes and shapes of PCD/PCBN tools. This wide range of tip radius options ensures that you can achieve precise and customized grinding results based on your specific requirements.

The Image Magnification capability of 45-250 times (digital zoom) provides enhanced visibility and precision during the grinding process. This feature allows you to closely monitor and control the grinding operation, ensuring consistent and high-quality results every time.

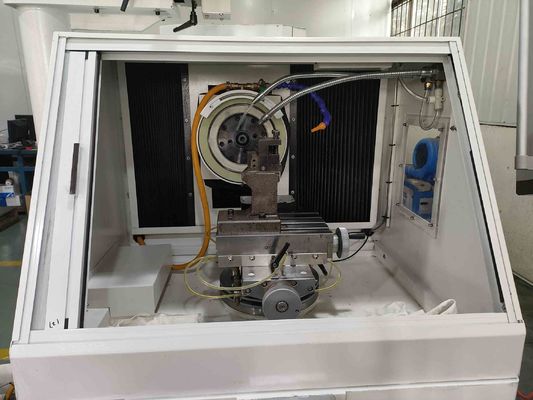

The Size of Cross Table measures 210*160mm and comes with 4T grooves, offering a sturdy and stable platform for your grinding tasks. The spacious table provides ample space for positioning and securing your workpieces, while the 4T grooves enhance the versatility and compatibility with various tooling accessories.

With a Spindle Speed ranging from 0 to 42000RPM (adjustable), the PCD Grinding Machine delivers exceptional speed control and grinding efficiency. Whether you need high-speed precision grinding or slower material removal, this machine allows you to customize the spindle speed according to your specific applications and preferences.

The PCD/PCBN Grinding Machine is a reliable and durable tool grinder that is specially designed for grinding PCD/PCBN tools and materials. With its robust construction and precise grinding capabilities, this machine is suitable for a wide range of industries, including automotive, aerospace, and tool manufacturing.

Overall, the PCD Grinding Machine offers exceptional performance, versatility, and precision for all your grinding needs. Whether you are working with PCD/PCBN tools or materials, this machine provides the accuracy and efficiency required to achieve superior grinding results.

Technical Parameters:

Applications:

CTSTC PCD Grinding Machine is a high-quality and efficient tool designed for grinding hard materials with precision. Its exceptional performance makes it suitable for a wide range of application occasions and scenarios.

As a leading brand from CHINA, CTSTC PCD Grinding Machine is CE certified, ensuring top-notch quality and safety standards. With a minimum order quantity of 1 and packaging details in a sturdy plywood box, this machine is convenient to order and receive.

Delivery of the PCD Grinding Machine takes 45-60 days, and payment terms can be flexible with options such as TT, LC, and Western Union. Weighing 1450kgs, this machine is sturdy and durable for long-term use.

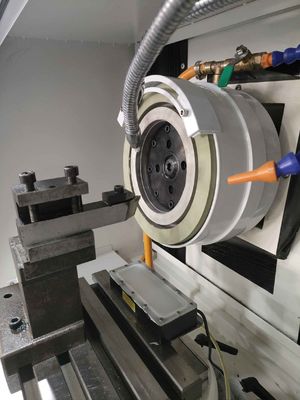

The spindle speed of the PCD Grinding Machine is adjustable from 0 to 42000 RPM, providing the versatility needed for various grinding tasks. The grinding wheel size is 150*40*40mm (D*H*T), suitable for precise and intricate grinding operations.

Featuring an image magnification of 45-250 times (digital zoom), the CTSTC PCD Grinding Machine ensures accurate and detailed grinding results. The grinding wheel inclination range of -13° to +24° offers flexibility in adjusting the grinding angle as needed.

With its capabilities as a hard materials grinder, PCD grinder, and PCD/PCBN materials grinder, the CTSTC PCD Grinding Machine is ideal for industries requiring precision grinding of tough materials. Whether in tool manufacturing, automotive, aerospace, or other sectors, this machine delivers consistent and reliable performance.

Customization:

Customize your PCD grinding machine from CTSTC to meet your specific needs:

- Brand Name: CTSTC

- Place of Origin: China

- Certification: CE

- Minimum Order Quantity: 1

- Packaging Details: Plywood box

- Delivery Time: 45-60 days

- Payment Terms: TT/LC/Western Union

- Grinding Wheel Height Adjustment: 140mm

- Image Magnification: 45-250 Times (digital zoom)

- Pixel Size: 3.75um*3.75um

- Dimension: 1200*1168*1530mm (L*H*W)

- Spindle Speed: 0-42000RPM (adjustable)
