LCD Monitor High Accuracy PCD Grinding Machine For Diamond Tools

CNC GRINDING MACHINE PCD GRINDING MACHINE FOR DIAMOND TOOLS WITH AUTOMATIC GRINDING WITH ONLINE SYSTEM AND MONITOR

ZT-180 High precision PCD PCBN tools' grinder is a high precision PCD PCBN tools automatic grinder, expecially for indexable inserts and milling cutters.

Features

• All machine body and cast accessories is 18 months natural ageing
• SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
• Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable durable
• Use advanced technical CNC control system, 5 axis control, two –axis CNC machining
• The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
• Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.

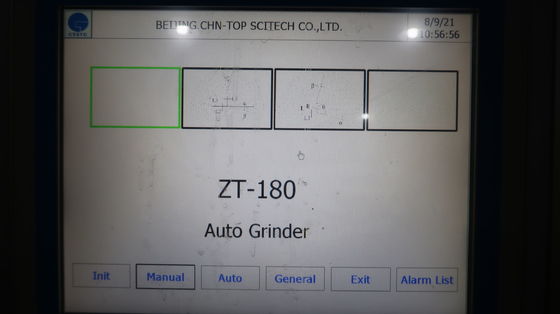

• Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
• LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.

TECHNICAL PARAMETERS

1. Spindle and Grinding Wheel

2. Grind Wheel Oscillation( X axis)

3. CCD Monitor System

Grinding Samples

Optional Accessories

                                                                              Factory View

CHN-TOP is the company offer comprehensive solutions for diamond tools making

FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D

team and production workshop. We can develop our customers' unique products according to their needs.

Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.

Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service

according to the needs of customers, and one-on-one service to solve customers' worries.

Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,

customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according

to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.

Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum

thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
