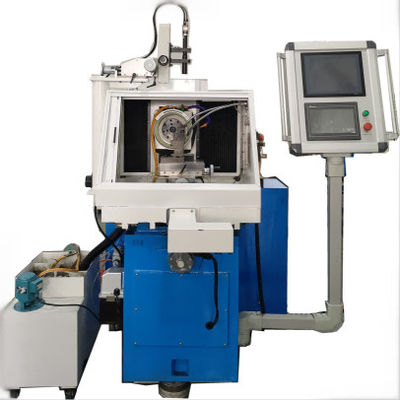

Adjustable PCD Grinding Machine with Image Magnification 45-250 Times and Grinding Wheel Oscillation Frequency 0-45/min

Product Description:

The PCD Grinding Machine is a specialized tool designed for precision grinding of PCD/PCBN materials. It features a Grinding Wheel Traveling Range of 170mm, allowing for versatile grinding applications. The spindle speed is adjustable from 0 to 42000RPM, providing flexibility to meet varying grinding requirements.

With a Grinding Wheel Oscillation Frequency range of 0 to 45/min, the PCD Grinding Machine offers precise control over the grinding process. This feature enables users to achieve the desired finish and accuracy in their grinding operations. The machine is equipped with a Grinding Wheel Size of 150*40*40mm (D*H*T), ensuring compatibility with a wide range of grinding wheel types.

Moreover, the Grinding Wheel Oscillation Distance can be adjusted from 0 to 40mm, allowing for customization based on specific grinding needs. This adjustable feature enhances the machine's capability to handle different materials and grinding tasks with precision.

Whether you are working on PCD or PCBN materials, the PCD Grinding Machine is a reliable and efficient tool for achieving high-quality grinding results. Its advanced features and adjustable settings make it an ideal choice for professionals seeking a versatile PCD grinder that delivers consistent performance.

Technical Parameters:

Applications:

When it comes to precision grinding of PCD/PCBN materials, the CTSTC PCD Grinding Machine stands out as a top choice for various application occasions and scenarios. Manufactured in CHINA, this CE-certified grinding machine is designed to meet the high demands of grinding hard materials with efficiency and accuracy.

With a minimum order quantity of 1 and packaging details in a sturdy plywood box, this PCD grinding machine is perfect for both small-scale workshops and larger industrial settings. The delivery time of 45-60 days ensures that you can quickly integrate this essential equipment into your production line.

The CTSTC PCD Grinding Machine offers versatile payment terms including TT, LC, and Western Union, making it convenient for businesses of all sizes to acquire this essential tool. Weighing at 1450kgs and with dimensions of 1200*1168*1530mm (L*H*W), this machine is robust and compact, fitting well into various workspaces.

Equipped with a grinding wheel inclination range of -13° to +24°, this PCD grinding machine allows for precise and customizable grinding operations on hard materials. The optical tube distance of 300mm and image system resolution of 1280dpi*960dpi ensure sharp and detailed visuals for accurate grinding processes.

Whether you are in the automotive, aerospace, or tool manufacturing industry, the CTSTC PCD Grinding Machine is indispensable for grinding PCD/PCBN materials with exceptional precision and repeatability. Its advanced features and reliable performance make it a must-have for any workshop or production facility dealing with hard materials.

Customization:

Product Customization Services for the PCD Grinding Machine:

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Image Magnification: 45-250 Times (digital Zoom)

Pixel Size: 3.75um*3.75um

Grinding Wheel Oscillation Distance: 0-40mm (adjustable)

Spindle Power: 2.2kw

Optical Tube Distance: 300mm

Customization options available for PCD/PCBN materials grinder, Hard materials grinder, PCD/PCBN Tools grinder
