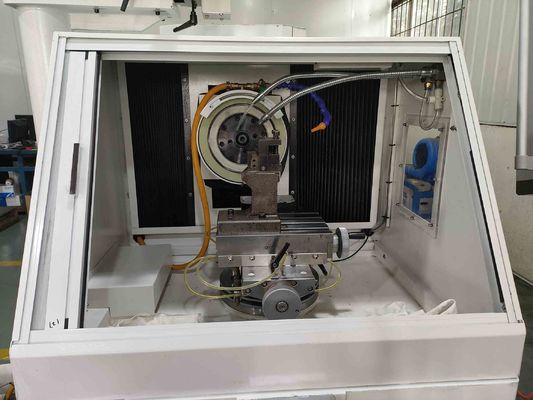

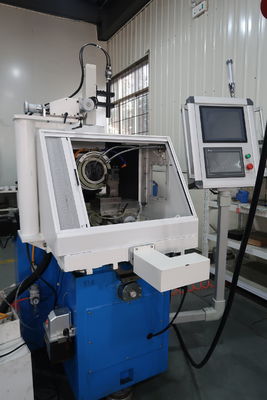

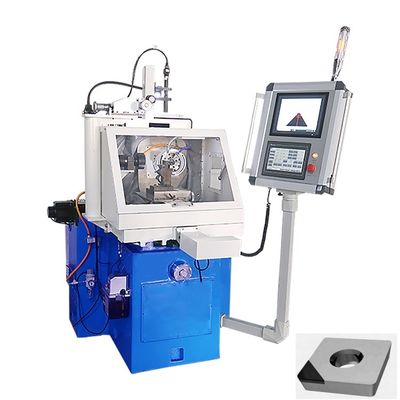

PCD Grinder with Adjustable Grinding Pressure 0-450N adjustable and 2.2kw Spindle Power

Product Description:

The PCD Grinding Machine is a high-precision machine designed for grinding PCD/PCBN materials, offering exceptional performance and accuracy for various grinding applications.

Key Features:

• Optical Tube Distance: 300mm

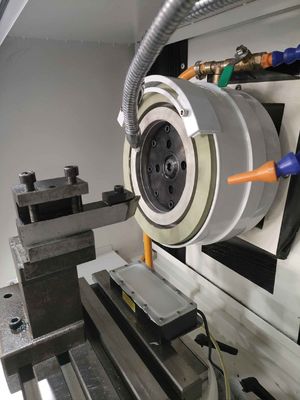

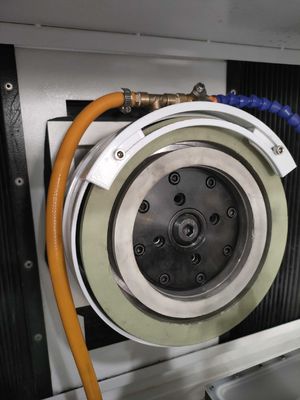

• Grinding Wheel Size: 150*40*40mm (D*H*T)
• Pixel Size: 3.75um*3.75um
• Grinding Wheel Oscillation Frequency: 0-45/min (adjustable)
• Size of Cross Table: 210*160mm With 4T Grooves

The PCD Grinding Machine is equipped with a precision optical tube distance of 300mm, enabling accurate and efficient grinding operations. The grinding wheel size of 150*40*40mm (D*H*T) ensures versatility and compatibility with various PCD/PCBN materials, making it an ideal choice for professional grinding tasks.

With a pixel size of 3.75um*3.75um, this PCD grinder offers exceptional precision and control over the grinding process, allowing for fine adjustments and detailed work. The grinding wheel oscillation frequency is adjustable from 0 to 45/min, providing flexibility and customization options based on specific grinding requirements.

The size of the cross table is 210*160mm, featuring 4T grooves for secure positioning and stability during grinding operations. This design enhances the overall efficiency and accuracy of the grinding process, ensuring consistent results and high-quality finishes.

Whether you are working on PCD, PCBN, or other hard materials, the PCD Grinding Machine delivers reliable performance and exceptional results. Its advanced features and precision engineering make it a valuable tool for professionals in various industries, including manufacturing, tooling, and precision engineering.

Technical Parameters:

Applications:

CTSTC PCD Grinding Machine, originating from China, is a high-quality grinder specifically designed for PCD/PCBN materials, hard materials, and PCD/PCBN tools. With a CE certification, this machine guarantees superior performance and durability.

The product is suitable for various application occasions and scenarios due to its exceptional features:

• Cross Table Swiveling Angle of 270°, allowing for versatile grinding options
• Readout of Linear Gratings at 0.001mm for precise and accurate grinding
• Grinding Pressure adjustable from 0 to 450N to accommodate different material requirements
• Grinding Wheel Oscillation Frequency adjustable from 0 to 45/min for optimal grinding results
• Compact Dimension of 1200*1168*1530mm (L*H*W), ideal for various workshop sizes

Whether you need to grind PCD/PCBN materials, hard materials, or PCD/PCBN tools, this machine is the perfect choice. The minimum order quantity is 1, and the packaging details include a sturdy plywood box to ensure safe delivery.

With a delivery time of 45-60 days, you can receive your CTSTC PCD Grinding Machine promptly. The payment terms accepted are TT, LC, and Western Union, providing flexibility for your convenience.

Customization:

Product Customization Services for the PCD Grinding Machine:

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Spindle Speed: 0-42000RPM (adjustable)

Name: PCD/PCBN Grinding Machine

Spindle Power: 2.2kw

Optical Tube Distance: 300mm

Grinding Wheel Oscillation Frequency: 0-45/min (adjustable)
