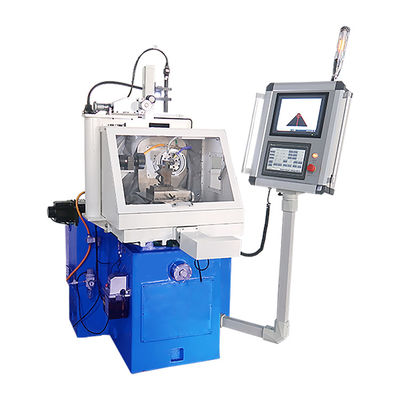

High Precision PCD Grinding Machine for 3.75um*3.75um Pixel Size and 210*160mm Cross Table

Product Description:

The PCD Grinding Machine is a high-precision tool specifically designed for grinding PCD/PCBN materials with ease and efficiency. This cutting-edge machine is ideal for industries requiring precise grinding of hard materials such as PCD, PCBN, and other challenging materials.

Key Product Attributes:

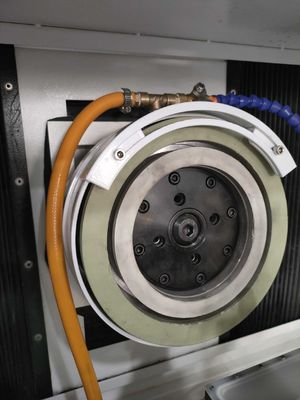

• Grinding Wheel Size: 150*40*40mm(D*H*T) - The PCD Grinding Machine is equipped with a robust grinding wheel measuring 150mm in diameter, 40mm in height, and 40mm in thickness. This ensures efficient and effective grinding of PCD/PCBN materials.
• Net Weight: 1450kgs - With a sturdy construction and a net weight of 1450kgs, this PCD grinder offers stability and durability during operation, ensuring consistent and reliable performance.
• Cross Table Swiveling Angle: 270° - The machine features a cross table swiveling angle of 270°, allowing for versatile grinding options and precise control over the grinding process.
• Pixel Size: 3.75um*3.75um - The PCD Grinding Machine boasts a high-resolution pixel size of 3.75um*3.75um, enabling detailed and accurate grinding of PCD/PCBN materials with exceptional precision.
• Tip Radius: 0-70mm - With a tip radius ranging from 0mm to 70mm, this machine offers the flexibility to grind PCD/PCBN materials to different specifications and requirements, catering to a wide range of applications.

Whether you are in the automotive, aerospace, or tooling industry, the PCD Grinding Machine is a reliable and efficient solution for your hard materials grinding needs. Its advanced features and precise capabilities make it an essential tool for achieving superior grinding results with PCD and PCBN materials.

Technical Parameters:

Applications:

CTSTC PCD Grinding Machine is a high-precision tool designed for grinding PCD/PCBN materials with exceptional efficiency and accuracy. Originating from CHINA, this machine is CE certified and offers a minimum order quantity of 1 unit. Each unit is carefully packaged in a sturdy plywood box to ensure safe delivery to your location.

The PCD Grinding Machine is suitable for a variety of application occasions and scenarios due to its versatile features. With a readout of Linear Gratings at 0.001mm, this machine guarantees precise and consistent results for your grinding needs. The Grinding Wheel Height Adjustment of 140mm allows for flexibility in handling different workpiece sizes and shapes.

The pixel size of 3.75um*3.75um ensures fine detailing and accuracy in the grinding process, making it ideal for intricate work on PCD/PCBN materials. The adjustable Spindle Speed ranging from 0 to 42000RPM enables you to customize the grinding process according to your specific requirements.

Furthermore, the adjustable Grinding Pressure of 0-450N provides you with control over the material removal rate, making it suitable for a wide range of grinding applications. Whether you are in the automotive, aerospace, or tool manufacturing industry, the CTSTC PCD Grinding Machine is a reliable choice for enhancing your production efficiency.

Ordering this machine is convenient with flexible payment terms including TT, LC, and Western Union. The delivery time of 45-60 days ensures that you receive your PCD grinder promptly to meet your operational needs. Invest in the CTSTC PCD Grinding Machine to experience high-quality grinding performance and achieve superior results on PCD/PCBN materials.

Customization:

Product Customization Services for the PCD Grinding Machine:

Brand Name: CTSTC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Grinding Wheel Oscillation Frequency: 0-45/min (adjustable)

Grinding Wheel Traveling Range: 170mm

Grinding Wheel Inclination: -13° to +24°

Readout of Linear Gratings: 0.001mm

Spindle Power: 2.2kw

Customization services available for PCD/PCBN materials grinder, PCD/PCBN Tools grinder, and Hard materials grinder.
