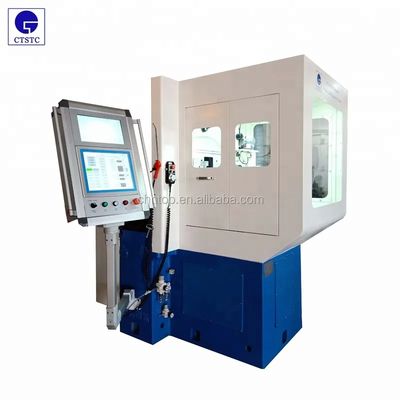

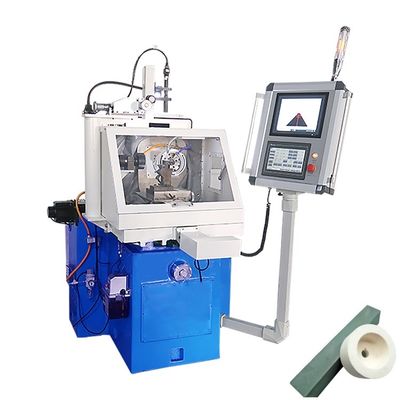

Adjustable PCD Grinding Machine with 140mm Wheel Height 1280dpi Resolution and Variable Grinding Pressure

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grinding Wheel Inclination -13°~+24° Pixel Size 3.75um*3.75um
Grinding Pressure 0-450N(adjustable) Grinding Wheel Height Adjustment 140mm
Dimension 1200*1168*1530mm(L*H*W) Image System Resolution 1280dpi*960dpi
Grinding Wheel Oscillation Frequency 0-45/min(adjustable) Grinding Wheel Size 150*40*40mm(D*H*T)
High Light

Adjustable PCD Grinding Machine

,

1280dpi Resolution PCD Grinding Machine

,

140mm Wheel Height PCD Grinding Machine

Leave a Message
Product Description

Product Description:

The grinding wheel size is 150*40*40mm(D*H*T), which is suitable for grinding PCD/PCBN Tools. The tip radius of the machine can be adjusted from 0 to 70mm, allowing for a wide range of grinding applications. This makes it a versatile tool that can be used for various grinding needs.

The PCD/PCBN Grinding Machine is a must-have for anyone who needs to grind PCD/PCBN materials. It is a high-quality tool that is designed to deliver exceptional results. It is easy to use, efficient, and reliable, making it a great investment for anyone who needs to grind PCD/PCBN materials.

Adjustable PCD Grinding Machine with 140mm Wheel Height 1280dpi Resolution and Variable Grinding Pressure 0


Technical Parameters:

Product Name: PCD/PCBN Grinding Machine
Grinding Wheel Oscillation Distance: 0-40mm (adjustable)
Grinding Wheel Traveling Range: 170mm
Size of Cross Table: 210*160mm With 4T Grooves
Optical Tube Distance: 300mm
Grinding Wheel Height Adjustment: 140mm
Grinding Wheel Size: 150*40*40mm (D*H*T)
Image Magnification: 45-250 Times (digital Zoom)
Readout of Linear Gratings: 0.001mm
Spindle Power: 2.2kw
Adjustable PCD Grinding Machine with 140mm Wheel Height 1280dpi Resolution and Variable Grinding Pressure 1


Applications:

The ZT-90CNC PCD Grinder is CE certified and has a minimum order quantity of 1. It comes packaged in a sturdy plywood box and has a delivery time of 45-60 days. Payment terms include TT, LC, and Western Union.

One of the key features of the ZT-90CNC PCD Grinder is its grinding wheel height adjustment, which can be adjusted up to 140mm. This makes it suitable for grinding a variety of tool sizes and shapes. Additionally, the machine has a pixel size of 3.75um*3.75um and an optical tube distance of 300mm, which ensures high-precision grinding results.

The grinding pressure of the ZT-90CNC PCD Grinder is adjustable up to 450N, which means that it can be used to grind a variety of materials with varying degrees of hardness. The cross table swiveling angle is 270°, which makes it easy to position the tool accurately and efficiently.

The ZT-90CNC PCD Grinder is suitable for use in a variety of applications, including precision tool grinding, grinding PCD and PCBN cutting tools, and grinding other hard materials. It is ideal for use in industries such as aerospace, automotive, and manufacturing.

In summary, the CTSTC ZT-90CNC PCD Grinder is a high-precision grinding machine that is suitable for a variety of grinding applications. Its adjustable grinding wheel height, high-precision optics, and adjustable grinding pressure make it a versatile and efficient tool for grinding PCD and PCBN tools. With a minimum order quantity of 1, it is a great investment for any manufacturing or precision engineering company.



Support and Services:

The PCD grinding machine is designed for grinding and sharpening polycrystalline diamond (PCD) cutting tools. Our technical support and services for this product include:

  • Installation and setup assistance
  • Training on proper use and maintenance of the machine
  • Technical troubleshooting and repair services
  • Supply of replacement parts and consumables
  • Customization services to meet specific requirements

We are committed to providing comprehensive support to ensure the optimal performance and longevity of your PCD grinding machine.
