Precision PCD/PCBN Grinding Machine with Adjustable Tip Radius and Spindle Speed

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Net Weight 1450kgs Tip Radius 0-70mm
Spindle Speed 0-42000RPM(adjustable) Name PCD/PCBN Grinding Machine
Image Magnification 45-250 Times(digital Zoom) Size Of Cross Table 210*160mm With 4T Grooves
Grinding Wheel Height Adjustment 140mm Grinding Wheel Oscillation Distance 0-40mm(adjustable)
High Light

Adjustable Tip Radius PCD Grinding Machine

,

Precision PCD Grinding Machine

,

Spindle Speed PCD Grinding Machine

Leave a Message
Product Description

Product Description:

The PCD Grinding Machine is a sturdy and durable machine. It has a net weight of 1450kgs, making it a reliable grinding machine that can handle tough grinding jobs. The grinding wheel height adjustment of 140mm makes it easy to set the height of the wheel to fit your grinding needs. You can easily adjust the grinding wheel height to ensure that your grinding is done accurately and efficiently.

The PCD Grinding Machine is a versatile machine that can be used for a variety of grinding tasks. It is perfect for grinding hard materials, such as PCD, and is designed to ensure that your grinding is done quickly and efficiently. The grinding wheel oscillation frequency of 0-45/min (adjustable) ensures that your grinding is done with precision and accuracy, giving you the perfect finish every time.

If you are looking for a reliable, hard materials grinder, look no further than the PCD Grinding Machine. With its high precision grinding capabilities and durable construction, this PCD grinder is the perfect tool for all your grinding needs. Get yours today and experience the difference for yourself!

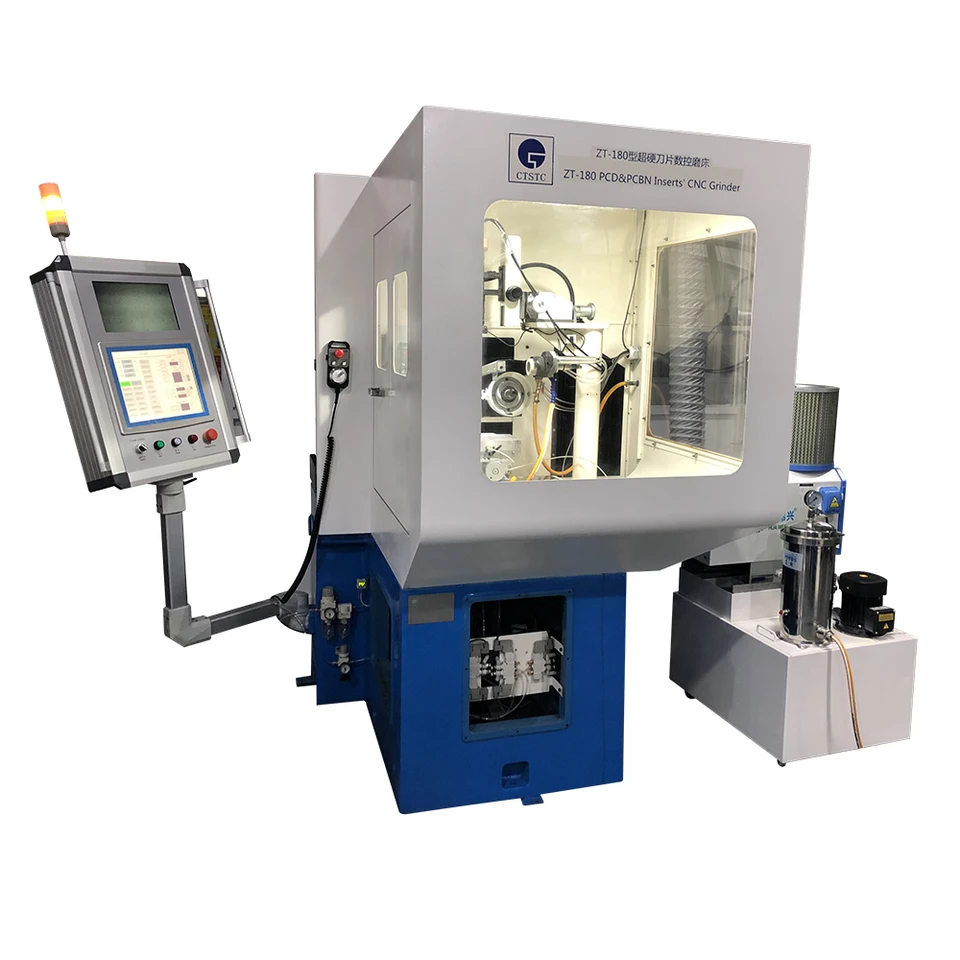

Precision PCD/PCBN Grinding Machine with Adjustable Tip Radius and Spindle Speed 0







Technical Parameters:

Grinding Wheel Height Adjustment: 140mm
Grinding Wheel Size: 150*40*40mm(D*H*T)
Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
Grinding Pressure: 0-450N(adjustable)
Dimension: 1200*1168*1530mm(L*H*W)
Net Weight: 1450kgs
Grinding Wheel Inclination: -13°~+24°
Readout of Linear Gratings: 0.001mm
Spindle Power: 2.2kw
Grinding Wheel Oscillation Frequency: 0-45/min(adjustable)

This is a hard materials grinder, specifically designed for PCD/PCBN Tools grinding.



Applications:

The PCD/PCBN Grinding Machine is used for grinding PCD/PCBN tools, which are widely used in the automotive, aerospace, and electronics industries. The machine has a grinding wheel height adjustment of 140mm and a readout of linear gratings of 0.001mm, which ensures high-precision grinding. The spindle power of the machine is 2.2kw, which provides enough power to grind PCD/PCBN tools. The tip radius of the machine can be adjusted from 0-70mm, which makes it suitable for grinding different types of PCD/PCBN tools.

The PCD/PCBN Grinding Machine is ideal for grinding PCD/PCBN tools for various applications. It can be used for grinding tools used in the automotive industry such as engine blocks, cylinder heads, and camshafts. It can also be used for grinding tools used in the aerospace industry such as turbine blades, compressor blades, and vanes. Furthermore, it can be used for grinding tools used in the electronics industry such as printed circuit boards and semiconductors.

Overall, the PCD/PCBN Grinding Machine is a high-precision grinder that is ideal for grinding PCD/PCBN tools for various applications. Its high-precision grinding ensures that the tools are ground to the required specifications, which makes it suitable for use in different industries. The machine is packed in a plywood box for safe transportation and is delivered within 45-60 days. The payment terms include TT, LC, and Western Union.

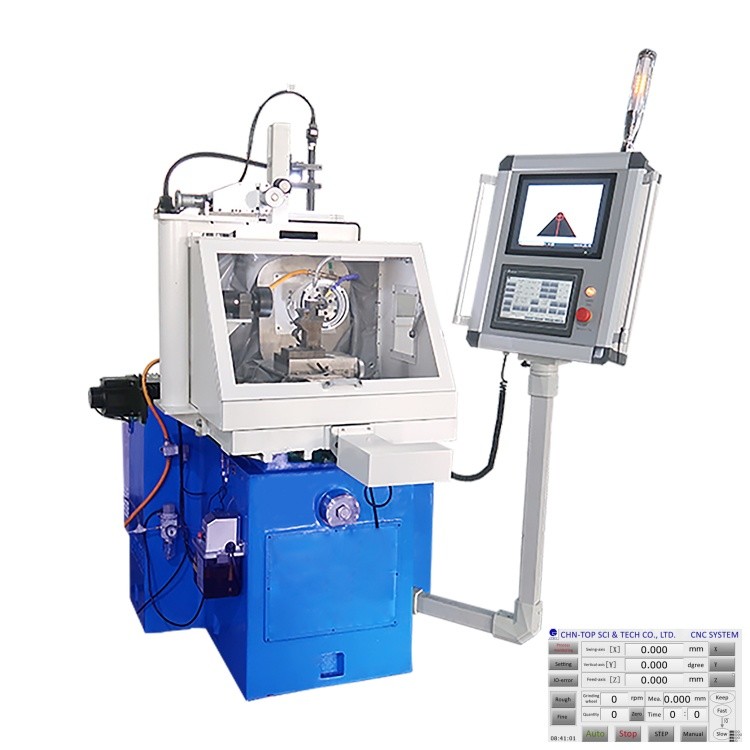

Precision PCD/PCBN Grinding Machine with Adjustable Tip Radius and Spindle Speed 1

Support and Services:

The PCD Grinding Machine is a high-precision tool designed for grinding polycrystalline diamond (PCD) and cubic boron nitride (CBN) tools. It features a sturdy and ergonomic design that ensures high accuracy and efficiency. Our product technical support and services include:

  • Installation and set-up assistance
  • Training on how to use the machine and its features
  • Regular maintenance and repair services
  • Technical troubleshooting and support
  • Upgrades and customization services to suit your specific needs

Our team of experienced technicians and engineers are always available to assist you with any technical issues or questions you may have. We are committed to providing you with the highest quality products and services to ensure your success.

Precision PCD/PCBN Grinding Machine with Adjustable Tip Radius and Spindle Speed 2

Packing and Shipping:

Product Packaging:

  • One PCD Grinding Machine
  • One Grinding Wheel
  • One Instruction Manual

Shipping:

  • Shipping Method: Standard Shipping
  • Estimated Delivery Time: 5-7 Business Days
  • Shipping Cost: Free


FAQ:

Q: What is the brand name of the PCD Grinding Machine?

A: The brand name of the PCD Grinding Machine is CTSTC.

Q: What is the model number of the PCD Grinding Machine?

A: The model number of the PCD Grinding Machine is ZT-90CNC.

Q: Where is the PCD Grinding Machine manufactured?

A: The PCD Grinding Machine is manufactured in China.

Q: Does the PCD Grinding Machine come with any certification?

A: Yes, the PCD Grinding Machine comes with CE certification.

Q: What is the minimum order quantity for the PCD Grinding Machine?

A: The minimum order quantity for the PCD Grinding Machine is 1.

Q: What is the packaging of the PCD Grinding Machine?

A: The PCD Grinding Machine is packaged in a plywood box.

Q: What is the delivery time for the PCD Grinding Machine?

A: The delivery time for the PCD Grinding Machine is 45-60 days.

Q: What are the payment terms for the PCD Grinding Machine?

A: The payment terms for the PCD Grinding Machine can be TT, LC, or Western Union.
