PCD grinder with 170mm Wheel Travel 270° Swivel Angle 1280dpi Image System Resolution

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Net Weight 1450kgs Grinding Wheel Traveling Range 170mm
Cross Table Swiveling Angle 270° Pixel Size 3.75um*3.75um
Grinding Wheel Inclination -13°~+24° Grinding Wheel Size 150*40*40mm(D*H*T)
Grinding Wheel Oscillation Frequency 0-45/min(adjustable) Image System Resolution 1280dpi*960dpi
High Light

170mm Wheel Travel PCD Grinder

,

270° Swivel Angle PCD Grinder

,

1280dpi Image System Resolution PCD Grinder

Leave a Message
Product Description

Product Description:

The PCD Grinding Machine has a tip radius range of 0-70mm and a grinding pressure that can be adjusted up to a maximum of 450N. The grinding pressure can be adjusted depending on the material being worked on, ensuring that the machine is suitable for a wide range of applications.

One of the standout features of the PCD Grinding Machine is its spindle speed. The spindle speed is adjustable within a range of 0-42000RPM. This high spindle speed ensures that the machine is capable of handling even the toughest grinding tasks with ease.

Overall, the PCD Grinding Machine is a versatile and reliable piece of equipment that is perfect for anyone looking to grind PCD/PCBN tools and materials. With its adjustable grinding wheel height, inclination, tip radius, grinding pressure, and spindle speed, this machine can handle a wide range of grinding tasks with ease.

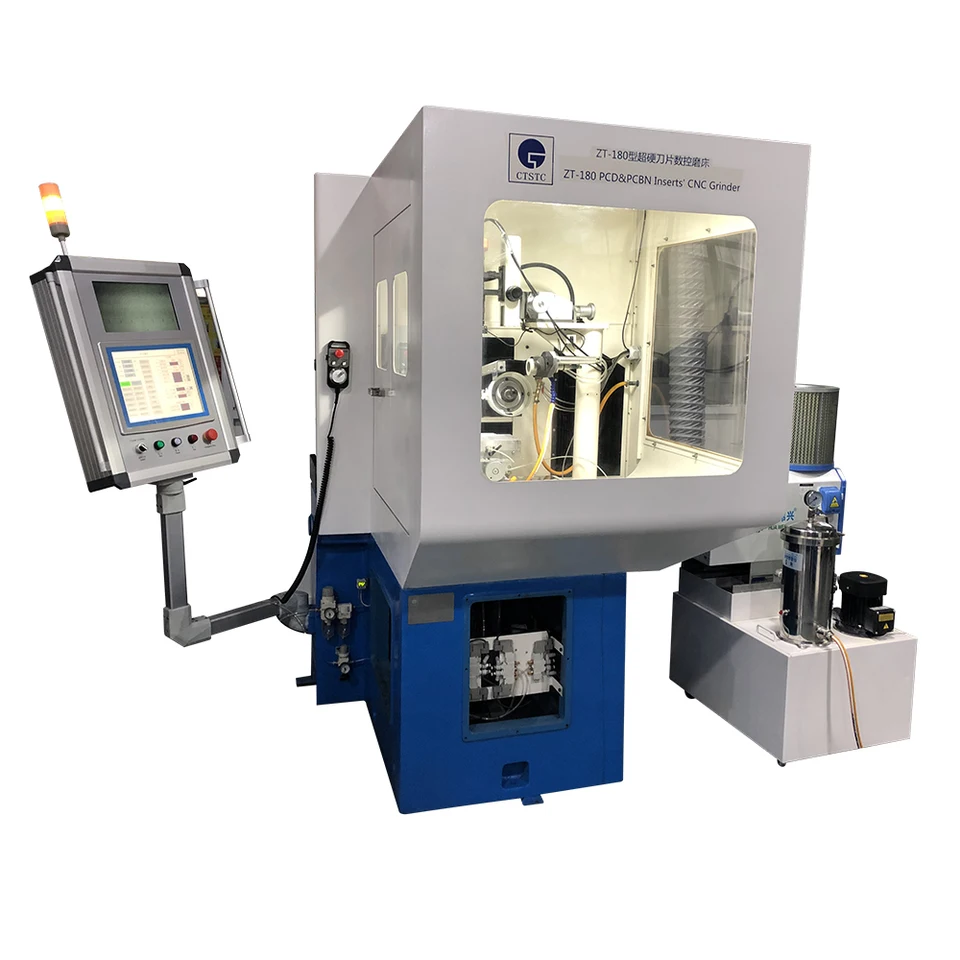

PCD grinder with 170mm Wheel Travel 270° Swivel Angle 1280dpi Image System Resolution 0





Technical Parameters:

Name PCD/PCBN Grinding Machine
Dimension 1200*1168*1530mm(L*H*W)
Grinding Wheel Size 150*40*40mm(D*H*T)
Grinding Wheel Inclination -13°~+24°
Grinding Wheel Oscillation Distance 0-40mm(adjustable)
Grinding Wheel Oscillation Frequency 0-45/min(adjustable)
Spindle Speed 0-42000RPM(adjustable)
Grinding Wheel Height Adjustment 140mm
Image Magnification 45-250 Times(digital Zoom)
Net Weight 1450kgs


Applications:

Our PCD grinding machine is designed to handle various grinding tasks on PCD/PCBN materials with ease. With a grinding wheel size of 150*40*40mm(D*H*T), you can expect efficient and precise grinding results. The grinding wheel inclination of -13°~+24° allows you to achieve the perfect angle for your grinding needs, while the grinding wheel height adjustment of 140mm lets you adjust the grinding depth according to your requirements.

The ZT-90CNC PCD grinding machine is equipped with an image system resolution of 1280dpi*960dpi, ensuring high-definition imaging for accurate grinding. Whether you're grinding PCD/PCBN inserts, grinding wheels, or other PCD/PCBN materials, this machine can help you achieve the desired results with ease.

Our PCD grinding machine has a delivery time of 45-60 days and offers flexible payment terms such as TT, LC, and Western Union. It comes packaged in a sturdy plywood box for safe transportation and storage.

Whether you're in the automotive, aerospace, or other industries that require precision grinding of PCD/PCBN materials, our PCD grinder is the perfect solution for your needs. Contact us today to learn more about the ZT-90CNC PCD grinding machine and place your order!

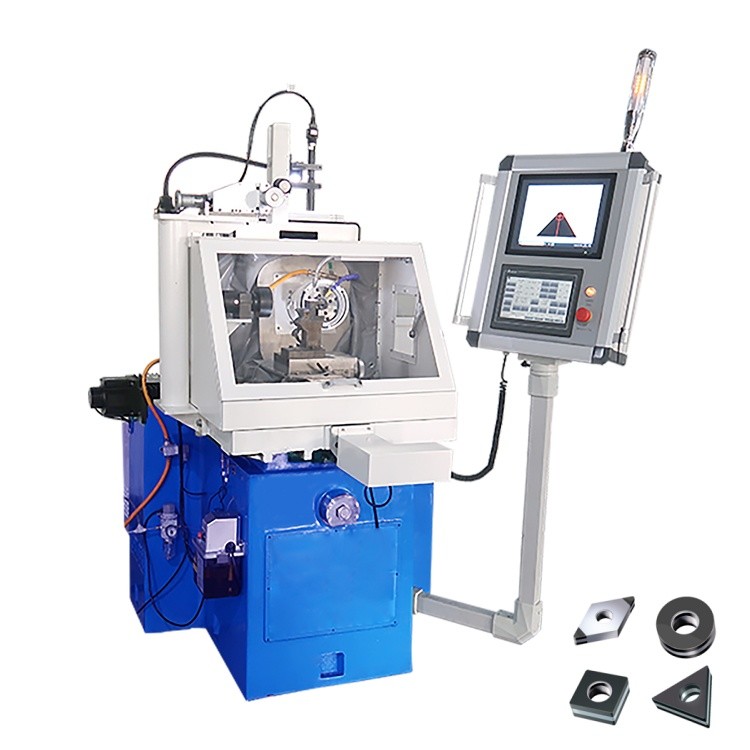

PCD grinder with 170mm Wheel Travel 270° Swivel Angle 1280dpi Image System Resolution 1

Support and Services:

The PCD grinding machine is a high-performance machine designed to grind polycrystalline diamond (PCD) tools. The technical support and services for this product include:

1. Installation and training services for the PCD grinding machine.

2. Technical support for the PCD grinding machine, including troubleshooting and repair services.

3. Regular maintenance services to ensure optimal performance of the PCD grinding machine.

4. Upgrades and retrofits to keep the PCD grinding machine up-to-date with the latest technology.

5. Spare parts and consumables for the PCD grinding machine.

Our team of experienced technicians and engineers is dedicated to providing the highest quality technical support and services for our customers. We are committed to ensuring that your PCD grinding machine operates at peak performance, so you can achieve the best possible results.

PCD grinder with 170mm Wheel Travel 270° Swivel Angle 1280dpi Image System Resolution 2

Packing and Shipping:

The PCD Grinding Machine will be carefully packed in a sturdy cardboard box to ensure safe delivery. The machine will be wrapped in bubble wrap and secured with packing peanuts to prevent any damage during transportation.

Shipping:

We offer free shipping for the PCD Grinding Machine to all locations within the United States. The machine will be shipped via FedEx Ground and will typically arrive within 3-5 business days. International shipping is also available at an additional cost and delivery times will vary depending on location.



FAQ:

Q: What is the brand name of this grinding machine?

A: The brand name of this grinding machine is CTSTC.

Q: What is the model number of this grinding machine?

A: The model number of this grinding machine is ZT-90CNC.

Q: Where is this grinding machine made?

A: This grinding machine is made in China.

Q: Is this grinding machine certified?

A: Yes, this grinding machine is certified with CE.

Q: What is the minimum order quantity for this grinding machine?

A: The minimum order quantity for this grinding machine is 1.

Q: How is this grinding machine packaged?

A: This grinding machine is packaged in a plywood box.

Q: How long does it take to deliver this grinding machine?

A: It takes 45-60 days to deliver this grinding machine.

Q: What are the payment terms for this grinding machine?

A: The payment terms for this grinding machine are TT/LC/Western Union.
