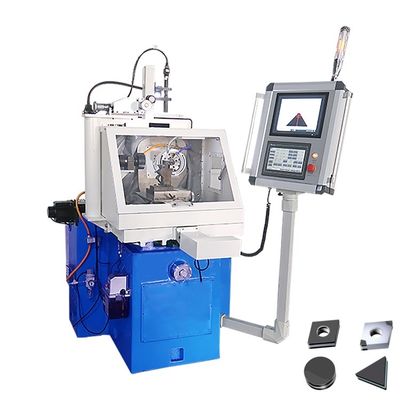

Precision PCD/PCBN Grinding Machine with Adjustable Pressure and 300mm Optical Tube Distance

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pixel Size 3.75um*3.75um Grinding Pressure 0-450N(adjustable)
Name PCD/PCBN Grinding Machine Grinding Wheel Size 150*40*40mm(D*H*T)
Grinding Wheel Height Adjustment 140mm Optical Tube Distance 300mm
Image Magnification 45-250 Times(digital Zoom) Spindle Power 2.2kw
High Light

Precision PCD Grinding Machine

,

Adjustable Pressure PCD Grinding Machine

,

300mm Tube Distance PCBN Grinding Machine

Leave a Message
Product Description

Product Description:

The PCD Grinding Machine is designed with a Tip Radius of 0-70mm, which makes it ideal for sharpening tools with different shapes and sizes. It also has an Image Magnification of 45-250 Times (digital Zoom), which provides users with a clear view of the grinding process. The machine's Grinding Wheel Height Adjustment of 140mm makes it easy to adjust the height of the grinding wheel to achieve precision grinding results.

The PCD Grinding Machine is a versatile and reliable tool that is perfect for grinding and sharpening PCD/PCBN Tools and other hard materials. Whether you are a professional or a DIY enthusiast, this machine is easy to use and delivers superior results. With its advanced features, it is the perfect tool for anyone looking to achieve precision grinding results.

Precision PCD/PCBN Grinding Machine with Adjustable Pressure and 300mm Optical Tube Distance 0







Technical Parameters:

Product Name PCD/PCBN Grinding Machine
Dimension 1200*1168*1530mm(L*H*W)
Readout of Linear Gratings 0.001mm
Cross Table Swiveling Angle 270°
Grinding Wheel Size 150*40*40mm(D*H*T)
Grinding Wheel Oscillation Frequency 0-45/min(adjustable)
Tip Radius 0-70mm
Grinding Wheel Inclination -13°~+24°
Grinding Wheel Traveling Range 170mm
Spindle Speed 0-42000RPM(adjustable)

Hard materials grinder, PCD/PCBN materials grinder, PCD/PCBN Tools grinder

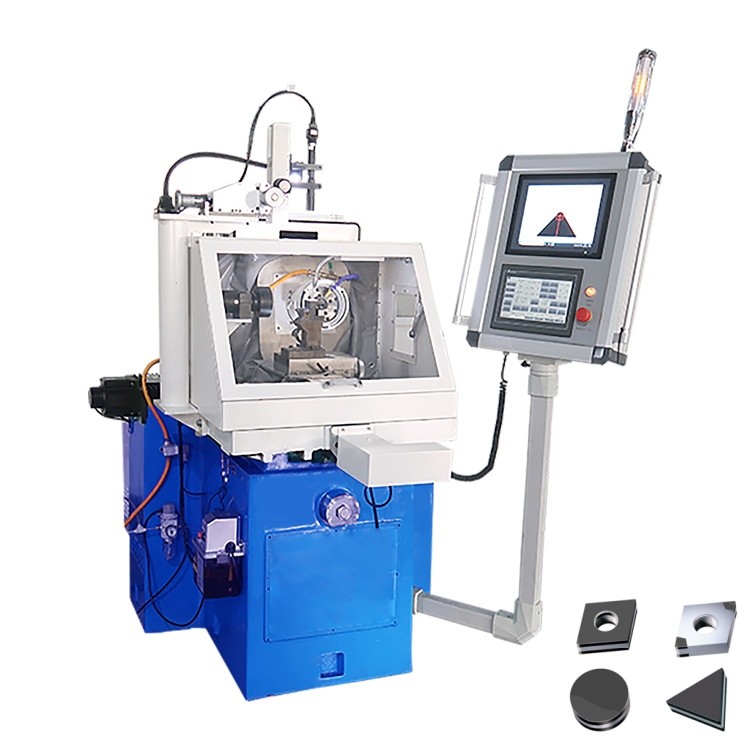

Precision PCD/PCBN Grinding Machine with Adjustable Pressure and 300mm Optical Tube Distance 1

Applications:

Whether you need to sharpen PCD/PCBN tools or grind other hard materials, the ZT-90CNC is up to the task. Its adjustable grinding wheel inclination allows you to achieve precision results every time, while the grinding wheel oscillation distance can be easily adjusted to suit your specific needs.

The ZT-90CNC also features an impressive optical tube distance of 300mm, which allows for detailed and accurate grinding. And with a digital zoom image magnification of 45-250 times, you can be sure that even the smallest details will not be overlooked.

The image system resolution of 1280dpi*960dpi ensures that you have a clear view of your work at all times, allowing for precise and accurate grinding. And with a minimum order quantity of just one and packaging details in a sturdy plywood box, the ZT-90CNC is easy to order and transport.

Whether you are a professional toolmaker or simply need a reliable grinder for your workshop, the CTSTC ZT-90CNC is the perfect choice. With fast delivery times of 45-60 days and flexible payment terms including TT, LC, and Western Union, you can have your grinder up and running in no time.



Support and Services:

The PCD grinding machine is a highly efficient and reliable tool used for grinding and polishing hard materials such as diamond, ceramic, and metal. Our technical support team is available to assist you with any questions or concerns you may have regarding the operation and maintenance of your PCD grinding machine.

We offer a comprehensive range of services to ensure that your PCD grinding machine is operating at its best. Our services include:

  • Installation and setup
  • Training and education
  • Preventative maintenance
  • Repairs and replacements
  • Upgrades and retrofits

Our team of experienced technicians is committed to providing you with the highest level of service and support. Whether you need assistance with troubleshooting, repair, or maintenance, we are here to help.

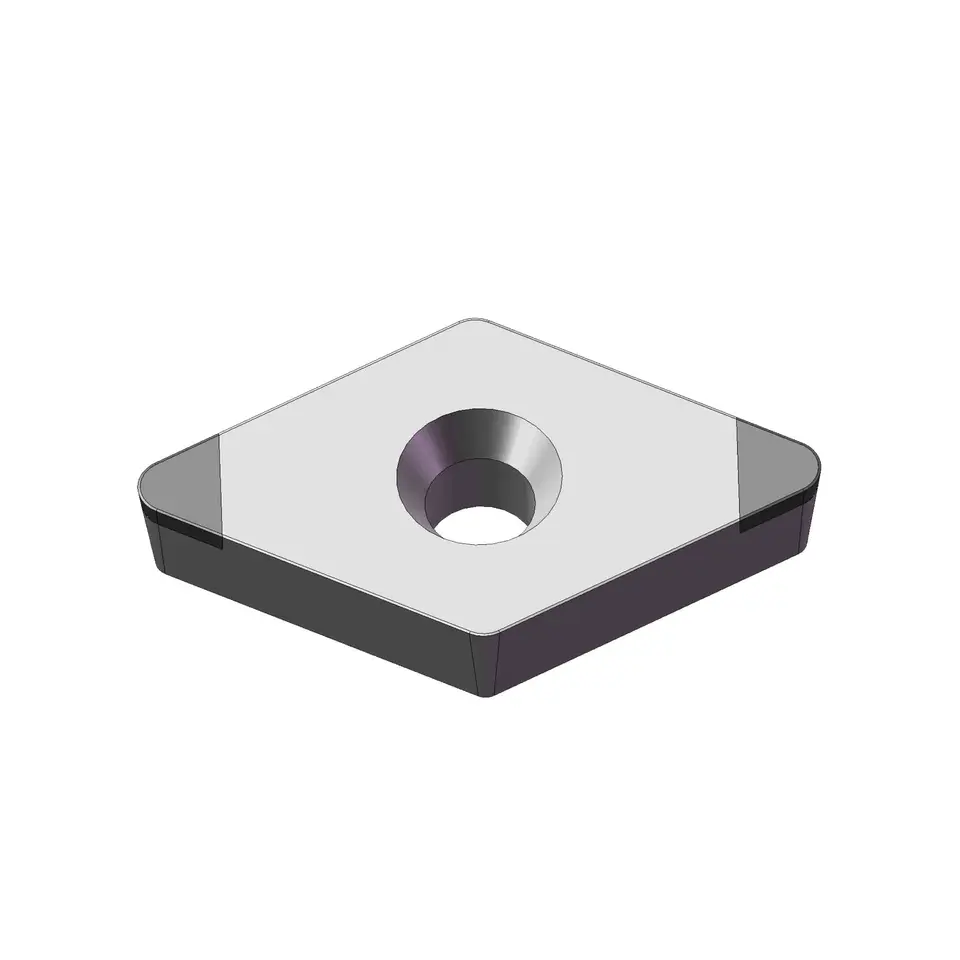

Precision PCD/PCBN Grinding Machine with Adjustable Pressure and 300mm Optical Tube Distance 2

Packing and Shipping:

Product Packaging:

  • One PCD Grinding Machine
  • One set of grinding wheels
  • One instruction manual

Shipping:

  • Shipping will be done through a standard courier service
  • Shipping time may vary depending on the delivery location
  • Tracking information will be provided once the product has been shipped


FAQ:

1,What is the brand name of this grinding machine?

The brand name of this grinding machine is CTSTC.,

2,What is the model number of this grinding machine?

The model number of this grinding machine is ZT-90CNC.,

3,Where is this grinding machine made?

This grinding machine is made in China.,

4,Is this grinding machine certified?

Yes, this grinding machine is certified with CE.,

5,What is the minimum order quantity for this grinding machine?

The minimum order quantity for this grinding machine is 1.



Additional Information:

Packaging Details: This grinding machine is packed in a plywood box.

Delivery Time: The delivery time for this grinding machine is 45-60 days.

Payment Terms: The payment terms for this grinding machine are TT/LC/Western Union.
