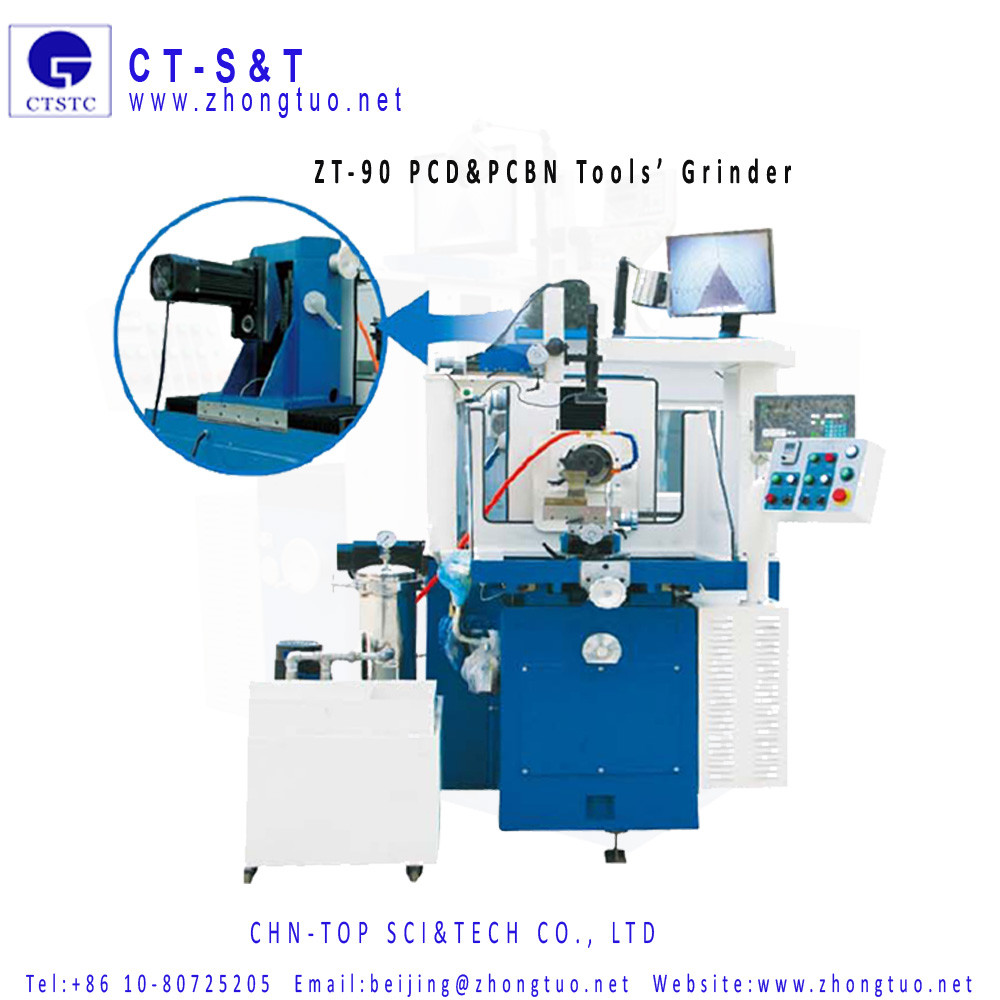

High Speed PCD Grinding Machine With Adjustable Grinding Wheel Oscillation Frequency

  • High Speed PCD Grinding Machine With Adjustable Grinding Wheel Oscillation Frequency
  • High Speed PCD Grinding Machine With Adjustable Grinding Wheel Oscillation Frequency
Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 1200*1168*1530mm(L*H*W) Tip Radius 0-70mm
Spindle Speed 0-42000RPM(adjustable) Grinding Wheel Size 150*40*40mm(D*H*T)
Spindle Power 2.2kw Cross Table Swiveling Angle 270°
Name PCD/PCBN Grinding Machine Optical Tube Distance 300mm
High Light

Adjustable Wheel PCD Grinding Machine

,

OEM PCD Grinding Machine

,

2.2kw Pcd Drilling Machine
Leave a Message
Product Description

Product Description:

PCD Grinding Machine is a precision grinding machine specially designed for PCD/PCBN tools making. It has a spindle speed range of 0-42000RPM, adjustable grinding pressure of 0-450N, net weight of 1450kgs and a grinding wheel oscillation frequency of 0-45/min, adjustable. It is equipped with a readout of linear gratings with 0.001mm accuracy. This high-tech PCD/PCBN tools grinder is able to provide superior grinding performance and accuracy for PCD and PCBN cutting tools.



Features:

  • Product Name: PCD Grinding Machine
  • Grinding Wheel Oscillation Distance: 0-40mm (adjustable)
  • Grinding Wheel Height Adjustment: 140mm
  • Spindle Speed: 0-42000RPM (adjustable)
  • Image System Resolution: 1280dpi*960dpi
  • Net Weight: 1450kgs
  • Designed for PCD/PCBN Tools grinding
  • Advanced PCD/PCBN materials grinding


Technical Parameters:

Parameters Values
Spindle Speed 0-42000RPM(adjustable)
Optical Tube Distance 300mm
Grinding Wheel Height Adjustment 140mm
Grinding Wheel Oscillation Frequency 0-45/min(adjustable)
Pixel Size 3.75um*3.75um
Grinding Wheel Size 150*40*40mm(D*H*T)
Size of Cross Table 210*160mm With 4T Grooves
Grinding Wheel Traveling Range 170mm
Image Magnification 45-250 Times(digital Zoom)
Spindle Power 2.2kw
Applicable Materials Hard materials grinder, PCD/PCBN Tools grinder


Applications:

The PCD Grinding Machine, model ZT-90CNC, is produced by CTSTC and is certified with CE. It is perfect for grinding PCD and PCBN tools. With a minimum order quantity of 1 and a delivery time of 45-60 days, it is packaged in a plywood box and payment can be made through TT/LC/Western Union. This machine is equipped with an image system resolution of 1280dpi*960dpi, a cross table swiveling angle of 270°, an optical tube distance of 300mm, a net weight of 1450kgs and a grinding wheel height adjustment of 140mm.



Customization:

PCD Grinding Machine
  • Brand Name: CTSTC
  • Model Number: ZT-90CNC
  • Place of Origin: CHINA
  • Certification: CE
  • Minimum Order Quantity: 1
  • Packaging Details: plywood box
  • Delivery Time: 45-60 days
  • Payment Terms: TT/LC/Western Union
  • Image System Resolution: 1280dpi*960dpi
  • Grinding Pressure: 0-450N(adjustable)
  • Name: PCD/PCBN Grinding Machine
  • Spindle Power: 2.2kw
  • Spindle Speed: 0-42000RPM(adjustable)


Support and Services:

PCD Grinding Machine technical support and service include the following:

  • Troubleshooting of software and hardware problems
  • Regular maintenance and inspection of the machine
  • Replacement and repair of broken parts
  • Regular software updates
  • Technical training and consultation


Packing and Shipping:

Packaging and Shipping for PCD Grinding Machine:

  • The PCD Grinding Machine will be securely packaged in bubble wrap, cardboard boxes and packing peanuts.
  • The package will be labeled with the customer's address and order number.
  • The package will be shipped using a reputable shipping company with tracking information.
  • The customer will be provided with a tracking number after the package is shipped.
Tags:

4200RPM PCD Grinding Machine

PCD automatic grinder machine

450N cnc internal grinding machine
