PCD/PCBN Grinding Machine With 300mm Optical Tube Distance Hard Materials Grinder

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Dimension 1200*1168*1530mm(L*H*W) Optical Tube Distance 300mm
Image System Resolution 1280dpi*960dpi Spindle Power 2.2kw
Cross Table Swiveling Angle 270° Grinding Wheel Inclination -13°~+24°
Spindle Speed 0-42000RPM(adjustable) Grinding Pressure 0-450N(adjustable)
High Light

Hard Materials PCBN Grinding Machine


300mm Tube Distance PCBN Grinder


Customized PCD Grinding Machine

Leave a Message
Product Description

Product Description:

The PCD grinding machine is a professional high-precision grinder for processing hard materials, such as PCD, PCBN, carbide, and ceramics. It is specially designed for grinding PCD and PCBN inserts. It is equipped with a high-precision CNC system, high-precision spindle, and high-precision linear guide rail. It offers maximum grinding accuracy and stability, so that it can meet the requirements of precision machining. Equipped with a powerful spindle, the machine can reach a maximum speed of 42000 RPM, allowing for fast and highly efficient grinding. The grinding wheel inclination is adjustable from -13° to +24°. The grinding wheel traveling range is up to 170mm, and the optical tube distance is up to 300mm. The total weight of the machine is 1450kgs.

The PCD grinding machine is suitable for grinding PCD, PCBN, and other hard materials. It offers superior grinding performance and accuracy. It is highly reliable and has a long service life. It is widely used in the industry for machining PCD inserts. The PCD grinder is a perfect choice for machining hard materials, such as PCD, PCBN, and carbide.

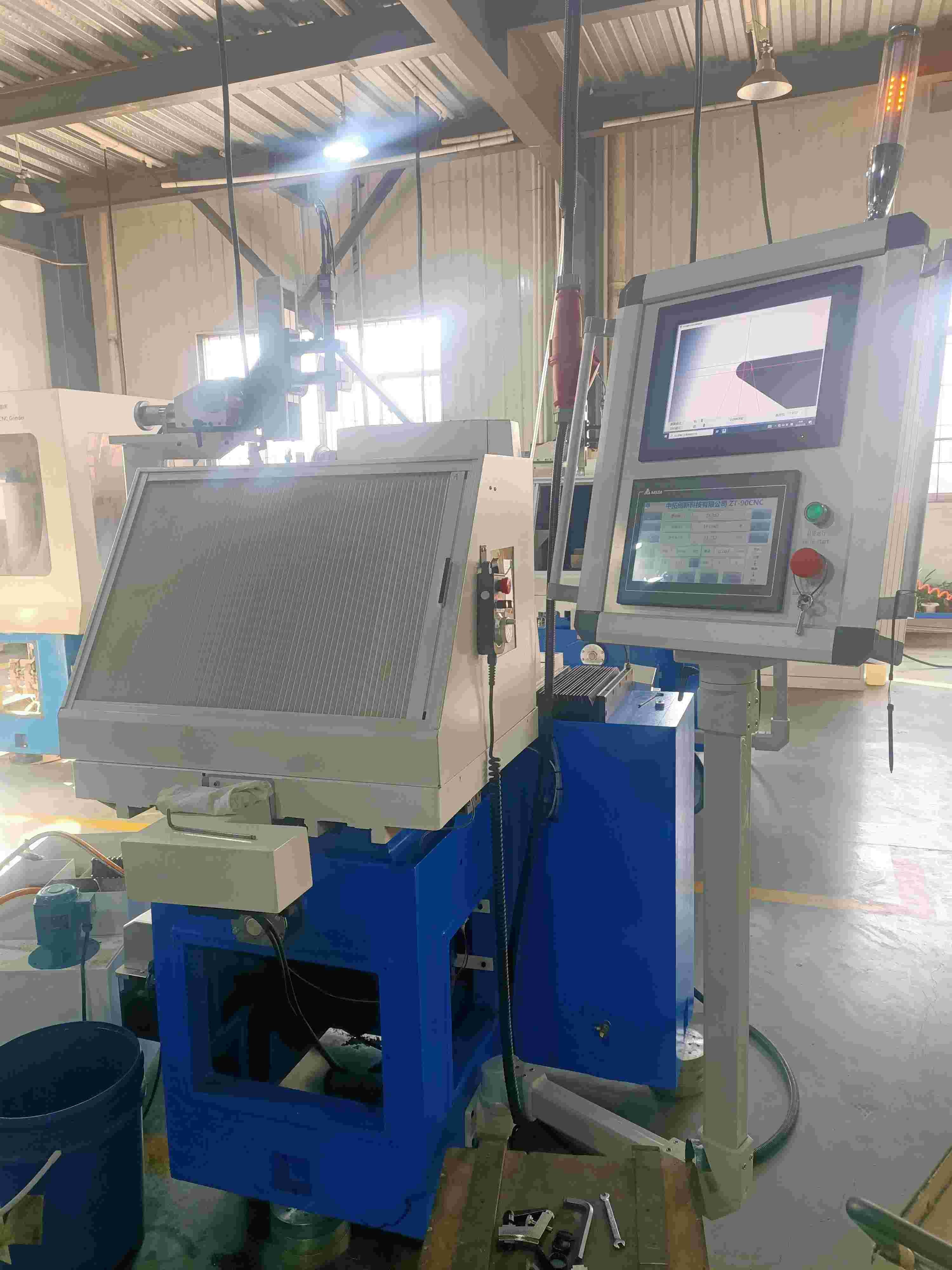

PCD/PCBN Grinding Machine With 300mm Optical Tube Distance Hard Materials Grinder 0


  • Product Name: PCD Grinding Machine
  • Specialized for PCD/PCBN Tools Grinder and Hard Materials Grinder
  • Size of Cross Table: 210*160mm With 4T Grooves
  • Image Magnification: 45-250 Times(digital Zoom)
  • Grinding Wheel Traveling Range: 170mm
  • Grinding Wheel Size: 150*40*40mm(D*H*T)
  • Tip Radius: 0-70mm

Technical Parameters:

Name Technical Parameters
Grinding Wheel Traveling Range 170mm
Dimension 1200*1168*1530mm(L*H*W)
Pixel Size 3.75um*3.75um
Net Weight 1450kgs
Image System Resolution 1280dpi*960dpi
Optical Tube Distance 300mm
Name PCD/PCBN Grinding Machine
Size of Cross Table 210*160mm With 4T Grooves
Tip Radius 0-70mm
Readout of Linear Gratings 0.001mm


The CTSTC ZT-90CNC PCD Grinding Machine is designed to grind PCD/PCBN materials with accuracy and reliability. It features a grinding pressure range of 0-450N and a cross table swiveling angle of up to 270°. The grinding wheel size of the machine is 150*40*40mm (D*H*T) and the grinding wheel height adjustment is 140mm. It also features a readout of linear gratings up to 0.001mm. The machine is certified with CE and comes with a minimum order quantity of 1. It is packed in a plywood box and delivered within 45-60 days. Payment can be done via TT/LC/Western Union.

The CTSTC ZT-90CNC PCD Grinding Machine is suitable for a wide range of applications, including precision grinding of PCD/PCBN materials, precision grinding of blades, molds and other complex shaped parts. It is also suitable for sharpening of drills, reamers and other cutting tools. The machine is easy to operate and maintain and can be used to produce high precision parts with repeatability. It is an ideal choice for industries such as tool and die making, automotive, aerospace, and medical.



CTSTC is the leading brand in PCD grinding machine. Our model ZT-90CNC is certified with CE and comes with a minimum order quantity of 1. It is packaged safely with the help of plywood boxes and the delivery time is 45-60 days. Payment can be done through TT/LC/Western Union. It has pixel size of 3.75um*3.75um and spindle power of 2.2kw. It comes with a net weight of 1450kgs and tip radius of 0-70mm. The grinding wheel inclination is -13°~+24°.

If you are looking for a reliable PCD grinder machine, then CTSTC’s ZT-90CNC is the perfect choice for you. It is a great combination of quality and affordability. Our team is always ready to provide personalized services according to your requirements.
