Precision Grinding with Adjustable Pressure PCD Grinding Machine

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Cross Table Swiveling Angle 270° Grinding Wheel Traveling Range 170mm
Grinding Wheel Oscillation Distance 0-40mm(adjustable) Grinding Wheel Size 150*40*40mm(D*H*T)
Readout Of Linear Gratings 0.001mm Image Magnification 45-250 Times(digital Zoom)
Name PCD/PCBN Grinding Machine Net Weight 1450kgs
High Light

Adjustable Pressure PCD Grinding Machine


170mm Wheel PCD Grinding Machine


Precision PCBN Grinding Machine

Leave a Message
Product Description

Product Description:

PCD Grinding Machine is specialized in grinding PCD and PCBN materials. It is a highly efficient grinder with adjustable grinding pressure, spindle power of 2.2kw and optical tube distance of 300mm. The size of its cross table is 210*160mm with 4T grooves, and its grinding wheel oscillation frequency is 0-45/min, which is adjustable. This PCD grinder machine is an ideal choice for precision grinding of PCD/PCBN materials.

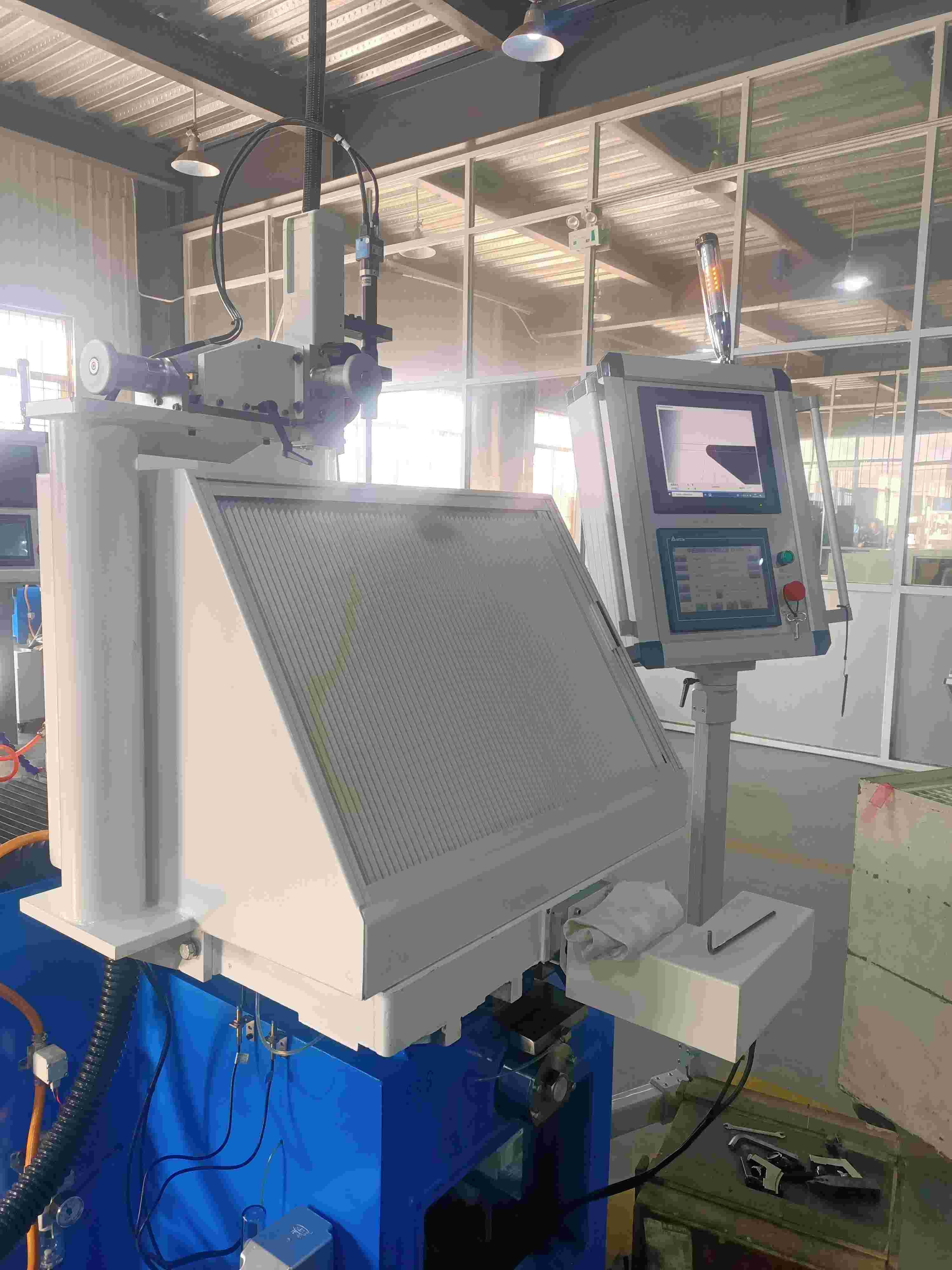

Precision Grinding with Adjustable Pressure PCD Grinding Machine 0


  • Product Name: PCD Grinding Machine
  • Grinding Wheel Traveling Range: 170mm
  • Grinding Wheel Height Adjustment: 140mm
  • Readout of Linear Gratings: 0.001mm
  • Size of Cross Table: 210*160mm With 4T Grooves
  • Dimension: 1200*1168*1530mm(L*H*W)
  • Specialty: Hard materials grinder, PCD/PCBN Tools grinder

Technical Parameters:

Technical Parameters Description
PCD grinding machine Hard materials grinder, PCD/PCBN Tools grinder
Tip Radius 0-70mm
Optical Tube Distance 300mm
Image System Resolution 1280dpi*960dpi
Size of Cross Table 210*160mm With 4T Grooves
Image Magnification 45-250 Times(digital Zoom)
Pixel Size 3.75um*3.75um
Grinding Pressure 0-450N(adjustable)
Cross Table Swiveling Angle 270°
Grinding Wheel Height Adjustment 140mm
Dimension 1200*1168*1530mm(L*H*W)


The CTSTC ZT-90CNC PCD Grinding Machine is a high-precision and multifunctional grinder for PCD/PCBN materials. This grinding machine is perfect for all kinds of hard material grinding, including PCD/PCBN materials. It is CE certified and with a minimum order quantity of 1, it comes in a plywood box and can be delivered within 45-60 days. With a dimension of 1200*1168*1530mm(L*H*W), the machine comes with a 150*40*40mm(D*H*T) grinding wheel with a 300mm optical tube distance and 140mm grinding wheel height adjustment. The tip radius can be adjusted from 0-70mm. This PCD/PCBN materials grinder, PCD grinder, and Hard materials grinder is a reliable choice for many grinding applications.



Customized PCD Grinding Machine with CE Certification

CTSTC's PCD Grinding Machine (Model Number: ZT-90CNC) is made in China and has been certified with CE. This machine is perfect for grinding PCD/PCBN materials with its high precision and spindle power of 2.2kw. The grinding wheel oscillation frequency is adjustable from 0-45/min and the grinding wheel inclination is adjustable from -13°~+24°. The readout of linear gratings is 0.001mm.

Key Features
  • Brand Name: CTSTC
  • Model Number: ZT-90CNC
  • Place of Origin: CHINA
  • Certification: CE
  • Minimum Order Quantity: 1
  • Packaging Details: plywood box
  • Delivery Time: 45-60 days
  • Payment Terms: TT/LC/Western Union
  • Spindle Power: 2.2kw
  • Grinding Wheel Oscillation Frequency: 0-45/min(adjustable)
  • Grinding Wheel Inclination: -13°~+24°
  • Name: PCD/PCBN Grinding Machine
  • Readout of Linear Gratings: 0.001mm
Highlights of Our PCD Grinder
  • Ideal for PCD/PCBN materials grinding
  • High precision and spindle power of 2.2kw
  • Adjustable grinding wheel oscillation frequency and inclination
  • CE certification for quality assurance
Why Choose Us?

CTSTC is a reliable provider of PCD grinders with CE certification. Our PCD grinder is designed with high precision to ensure the best grinding performance. With our advanced technology and experienced team, we are confident that our PCD grinder will meet your needs.


Support and Services:

PCD Grinding Machine Technical Support and Service:

  • Provide technical support and troubleshooting services for PCD Grinding Machine.
  • Provide guidance and assistance on installation, calibration, and operation of PCD Grinding Machine.
  • Provide maintenance and repair services including replacement of parts.
  • Provide technical support for software and firmware updates.
  • Provide technical support and advice on usage and application of PCD Grinding Machine.

Packing and Shipping:

Packaging and Shipping of PCD Grinding Machine:

The PCD Grinding machine will be packaged in a wooden box to ensure that it is secure and protected during transportation. The box will be reinforced with straps and secured with nails to provide additional stability. The box will also be labeled with the product name and shipping address. Once the box is securely packaged, it will be shipped via a reliable carrier.
