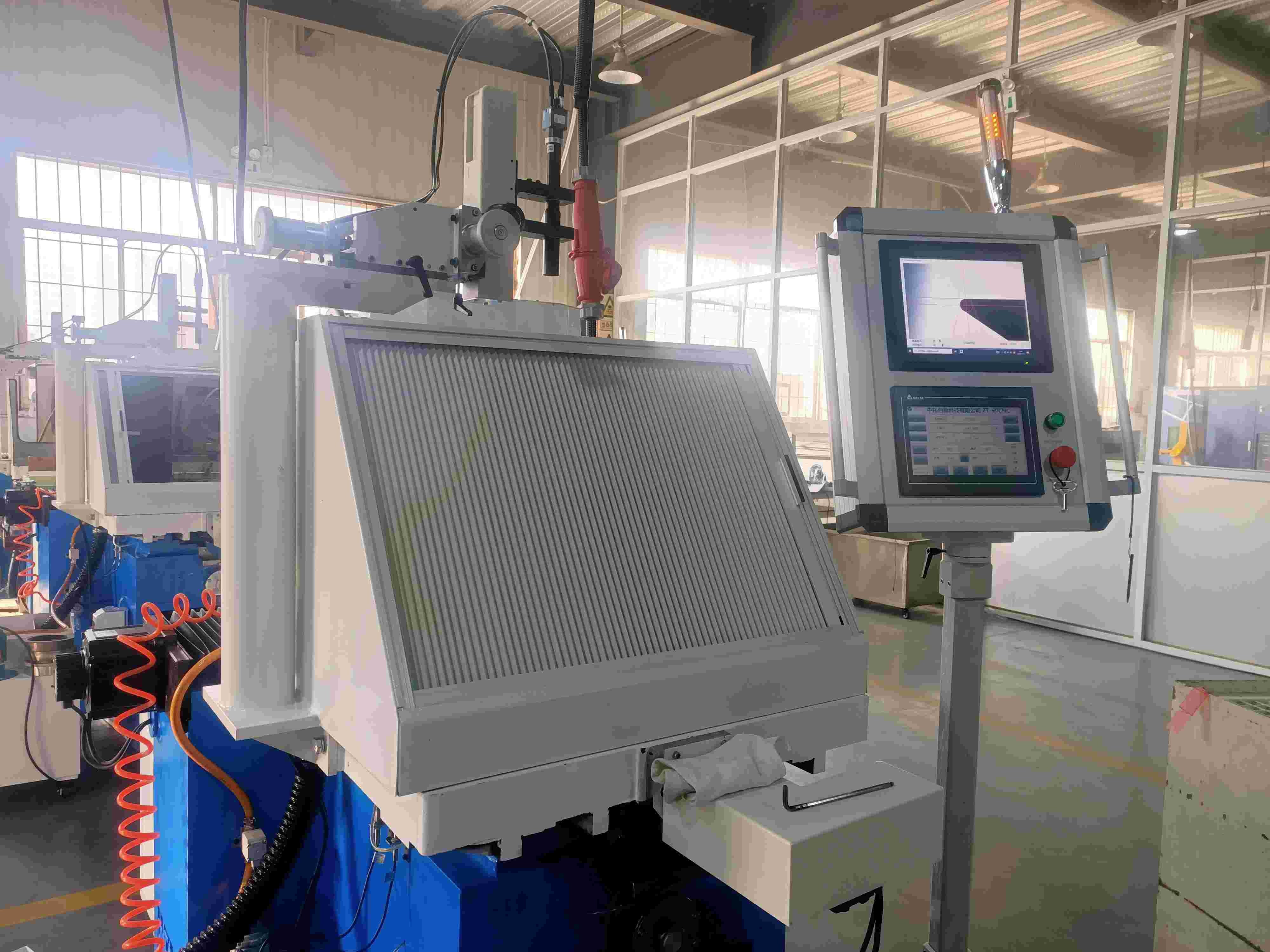

Professional PCD/PCBN Tools Grinder For Precise Grinding Adjustable Spindle Speed
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Tube Distance | 300mm | Dimension | 1200*1168*1530mm(L*H*W) |
|---|---|---|---|
| Grinding Wheel Oscillation Frequency | 0-45/min(adjustable) | Size Of Cross Table | 210*160mm With 4T Grooves |
| Net Weight | 1450kgs | Pixel Size | 3.75um*3.75um |
| Spindle Speed | 0-42000RPM(adjustable) | Grinding Wheel Size | 150*40*40mm(D*H*T) |
| High Light | Adjustable Speed PCD Tools Grinder,Adjustable Speed PCBN Tools Grinder,Precise Grinding PCBN Grinder |
||
Product Description
Product Description:
The PCD/PCBN Grinding Machine is designed for hard material grinding. It is suitable for grinding PCD and PCBN materials, and it is a precision grinder with a grinding wheel height adjustable up to 140mm. The spindle speed is adjustable from 0 to 42000RPM, and the grinding wheel size is 150*40*40mm(D*H*T). Furthermore, the image system resolution is 1280dpi*960dpi, which is perfect for grinding hard materials like PCD and PCBN. It is ideal for precision grinding of hard materials.
Features:
- Product Name: PCD Grinding Machine
- Specialized in grinding PCD/PCBN Tools, materials, cutting tools
- Readout of Linear Gratings: 0.001mm
- Spindle Speed: 0-42000RPM(adjustable)
- Tip Radius: 0-70mm
- Grinding Wheel Traveling Range: 170mm
- Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
Technical Parameters:
| Parameters | Specification |
|---|---|
| Image Magnification | 45-250 Times(digital Zoom) |
| Grinding Wheel Oscillation Frequency | 0-45/min(adjustable) |
| Grinding Wheel Size | 150*40*40mm(D*H*T) |
| Spindle Speed | 0-42000RPM(adjustable) |
| Grinding Wheel Height Adjustment | 140mm |
| Readout of Linear Gratings | 0.001mm |
| Optical Tube Distance | 300mm |
| Spindle Power | 2.2kw |
| Cross Table Swiveling Angle | 270° |
| Grinding Wheel Inclination | -13°~+24° |
Applications:
CTSTC ZT-90CNC PCD Grinding Machine is a professional grinding device for PCD/PCBN materials and PCD/PCBN tools. It is suitable for machining PCD/PCBN materials in the fields of aerospace, automobile, electronics, electrical appliances, instruments, medical and other industries. The size of the cross table is 210*160mm with 4T grooves, and the grinding wheel size is 150*40*40mm(D*H*T). It also has a high image system resolution of 1280dpi*960dpi. The grinding wheel oscillation distance can be adjusted from 0-40mm, and the tip radius can be adjusted from 0-70mm. This grinding machine is certified by CE and the minimum order quantity is 1. It is delivered in a plywood box, and the delivery time is 45-60 days. Payment terms include TT/LC/Western Union.
CTSTC ZT-90CNC PCD Grinding Machine has excellent performance and can achieve high precision grinding. It is suitable for grinding PCD/PCBN materials and PCD/PCBN tools. It is widely used in the fields of aerospace, automobile, electronics, electrical appliances, instruments, medical and other industries. It is an ideal choice for grinding PCD/PCBN tools.
Customization:
PCD Grinding Machine
Brand Name: CTSTC
Model Number: ZT-90CNC
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1
Packaging Details: plywood box
Delivery Time: 45-60 days
Payment Terms: TT/LC/Western Union
Net Weight: 1450kgs
Image Magnification: 45-250 Times(digital Zoom)
Grinding Wheel Inclination: -13°~+24°
Grinding Wheel Size: 150*40*40mm(D*H*T)
Optical Tube Distance: 300mm
PCD/PCBN Tools grinder, Hard materials grinder, PCD grinder, PCD grinding machine, the ZT-90CNC PCD Grinding Machine from CTSTC is designed for grinding PCD/PCBN Tools and Hard materials. This PCD grinder can achieve a image magnification of 45-250 times and a grinding wheel inclination of -13°~+24°. With grinding wheel size of 150*40*40mm(D*H*T) and an optical tube distance of 300mm, this PCD grinding machine has a net weight of 1450kgs. It is CE certified and the minimum order quantity is 1.
Support and Services:
PCD Grinding Machine
Technical Support and Service
We provide technical support and services to ensure the optimal performance of your PCD Grinding Machine. Our technical support team is available to answer any questions you have about installation, operation, maintenance, and repair. We can also provide on-site service if needed.
We provide spare parts and consumables for your PCD Grinding Machine, including grinding wheels, abrasives, coolant, and other materials. We will also repair or replace any defective parts of your machine. We offer a wide range of services, including preventive maintenance, troubleshooting, and emergency repair.
We also provide training on the use and operation of your PCD Grinding Machine. Our experienced technicians will provide you with the necessary knowledge and skills to ensure your machine runs smoothly and efficiently.
Packing and Shipping:
PCD Grinding Machine Packaging and Shipping:
- The PCD Grinding Machine will be packed in a wooden box with foam padding to protect it from damage during transport.
- The box will be sealed with tape to secure it and prevent tampering.
- The PCD Grinding Machine will be shipped via a reliable carrier, with tracking information provided to the customer.
