Grinding Wheel Size 150*40*40mm PCD/PCBN Materials Grinder With Tip Radius 0-70mm

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Grinding Wheel Height Adjustment 140mm Name PCD/PCBN Grinding Machine
Dimension 1200*1168*1530mm(L*H*W) Optical Tube Distance 300mm
Readout Of Linear Gratings 0.001mm Image System Resolution 1280dpi*960dpi
Pixel Size 3.75um*3.75um Tip Radius 0-70mm
High Light

40mm Wheel PCBN Materials Grinder


150mm Wheel PCD Grinder


70mm Tip Radius PCD Grinder

Leave a Message
Product Description

Grinding Wheel Size 150*40*40mm PCD/PCBN Materials Grinder With Tip Radius 0-70mm

Product Description:

The PCD/PCBN Grinding Machine is a hard materials grinder specifically designed for grinding PCD (Polycrystalline Diamond) and PCBN (Polycrystalline Cubic Boron Nitride) materials. It is equipped with a cross table swiveling angle of 270° and adjustable grinding pressure of 0-450N. It is capable of reading linear gratings with 0.001mm resolution and provides an image system resolution of 1280dpi*960dpi. The PCD grinder machine is ideal for grinding and finishing hard materials, such as PCD and PCBN.

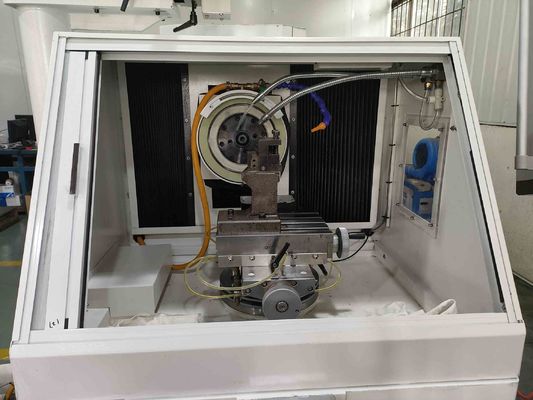

Grinding Wheel Size 150*40*40mm PCD/PCBN Materials Grinder With Tip Radius 0-70mm 0


  • PCD Grinding Machine: A machine designed for grinding PCD/PCBN materials and hard materials.
  • Readout of Linear Gratings: 0.001mm.
  • Tip Radius: 0-70mm.
  • Spindle Speed: 0-42000RPM (adjustable).
  • Grinding Pressure: 0-450N (adjustable).
  • Grinding Wheel Oscillation Distance: 0-40mm (adjustable).

Technical Parameters:

Parameter Value
Name PCD/PCBN Grinding Machine
Cross Table Swiveling Angle 270°
Readout of Linear Gratings 0.001mm
Optical Tube Distance 300mm
Dimension 1200*1168*1530mm(L*H*W)
Image Magnification 45-250 Times(digital Zoom)
Grinding Wheel Size 150*40*40mm(D*H*T)
Grinding Wheel Height Adjustment 140mm
Image System Resolution 1280dpi*960dpi
Grinding Wheel Inclination -13°~+24°


The CTSTC ZT-90CNC PCD Grinding Machine is a professional grinding solution for PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) materials. It is an ideal tool for grinding PCD/PCBN materials into high precision tools for use in a variety of industries. The machine features a 2.2kw spindle power, a 0.001mm readout of linear gratings, and a grinding wheel oscillation frequency of 0-45/min (adjustable). It also has a 1200*1168*1530mm (L*H*W) dimension and a net weight of 1450kgs, meeting CE standards for safety and performance. It is packaged in a plywood box for maximum protection and comes with a minimum order quantity of 1. Delivery time for this product is 45-60 days, and payment terms are available through TT/LC/Western Union.

This machine offers a high-precision grinding solution to PCD/PCBN materials used for manufacturing cutting tools, drills, or other similar tools. It can be used to grind PCD/PCBN tools into a variety of shapes and sizes with excellent results. With its adjustable grinding wheel oscillation frequency and 0.001mm readout of linear gratings, it provides an accurate grinding solution for any PCD/PCBN materials. It is also easy to operate, and its CE certification ensures its safety and reliability.



Customized PCD Grinding Machine

Brand Name: CTSTC

Model Number: ZT-90CNC

Place of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1

Packaging Details: plywood box

Delivery Time: 45-60 days

Payment Terms: TT/LC/Western Union

Grinding Wheel Oscillation Frequency: 0-45/min(adjustable)

Tip Radius: 0-70mm

Name: PCD/PCBN Grinding Machine

Grinding Wheel Height Adjustment: 140mm

Dimension: 1200*1168*1530mm(L*H*W)

Customized PCD Grinding Machine is specifically designed for grinding and resharpening PCD/PCBN materials, PCD/PCBN tools and other hard materials.


Support and Services:

PCD Grinding Machine Technical Support and Services

We offer a variety of services and technical support options to ensure the best experience possible with our PCD Grinding Machines. Our services include:

  • Installation and Setup Assistance
  • Regular Maintenance and Troubleshooting
  • Product Demonstrations and Training
  • Repairs and Upgrades
  • Technical Assistance and Support

We are dedicated to providing the best customer service for our PCD Grinding Machines, and our experienced team is available to answer any questions or concerns you may have. We strive to provide timely and comprehensive support so that you can get the most out of your machine.


Packing and Shipping:

Packaging and Shipping

The PCD Grinding Machine is shipped in a sealed, wooden crate to ensure that it arrives in perfect condition. Inside the wooden crate, the PCD Grinding Machine is further protected by foam inserts that secure it in place during transport.

The crate is then sealed with metal straps and secured with locks to prevent any potential tampering. Additionally, the crate is clearly labelled with the product name and relevant contact information.
