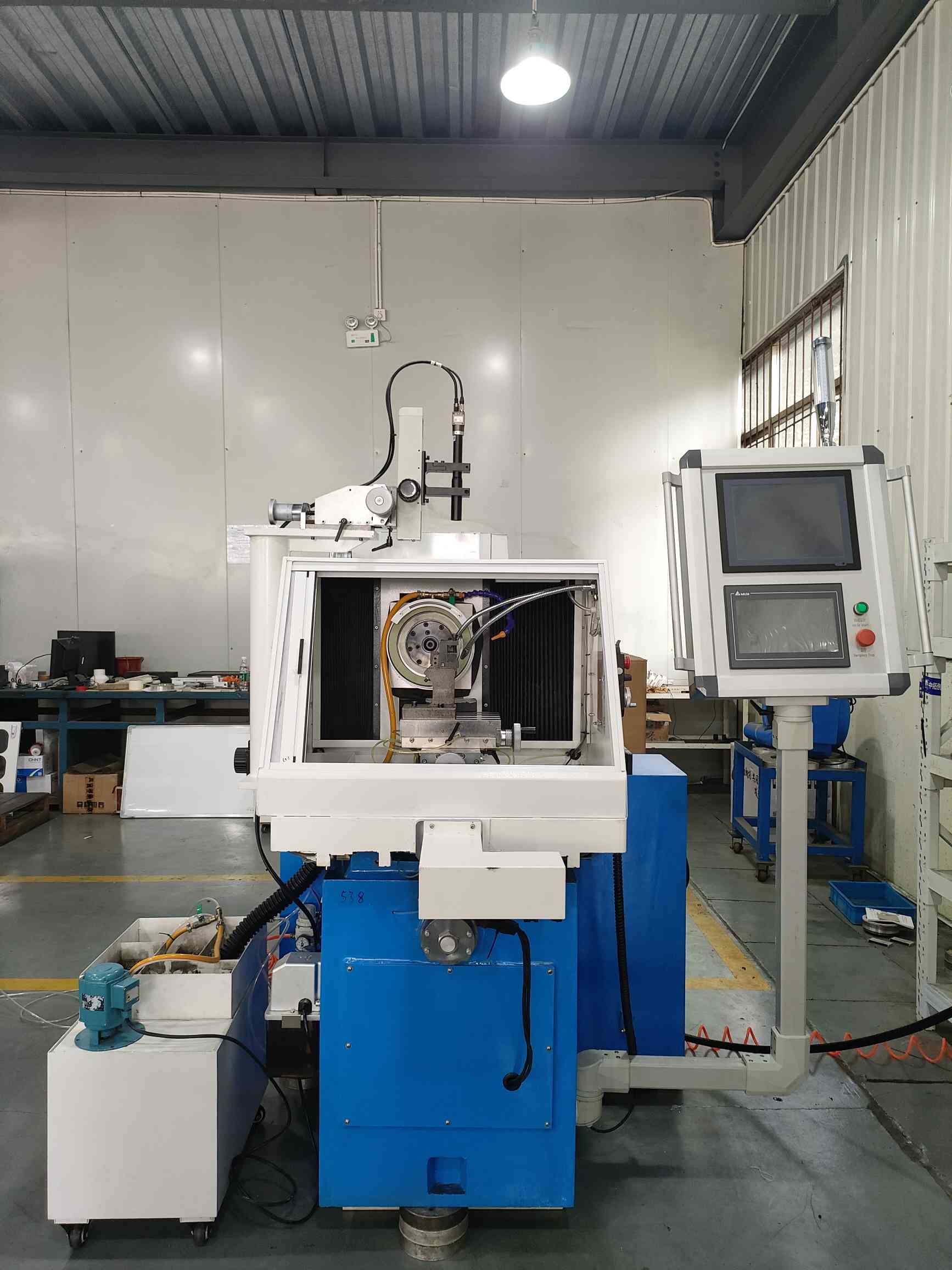

140mm Grinding Wheel Height Adjustment for PCD Grinding Machine

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTip Radius | 0-70mm | Grinding Wheel Oscillation Distance | 0-40mm(adjustable) |
---|---|---|---|
Name | PCD/PCBN Grinding Machine | Optical Tube Distance | 300mm |
Spindle Speed | 0-42000RPM(adjustable) | Cross Table Swiveling Angle | 270° |
Dimension | 1200*1168*1530mm(L*H*W) | Image Magnification | 45-250 Times(digital Zoom) |
Highlight | 140mm Wheel PCD Grinding Machine,Height Adjust PCD Grinding Machine,Adjustable Pcd Drilling Machine |
Product Description:
PCD Grinding Machine is a powerful and precise tool grinding machine specially designed for PCD/PCBN tools. This machine is mainly used for grinding hard materials, such as PCD/PCBN tools. It is featured with high efficiency, easy operation, high precision and long service life. This machine adopts the advanced grinding technology, which make it suitable for the grinding of PCD/PCBN tools.
The grinding wheel oscillation distance of this machine is adjustable from 0-40mm, with a grinding wheel oscillation frequency of 0-45/min. The image system resolution of this machine is 1280dpi*960dpi. The grinding wheel size is 150*40*40mm(D*H*T), and the grinding wheel inclination ranges from -13° to +24°.
The PCD Grinding Machine is a reliable and efficient tool grinding machine, which can provide high precision and smooth surface finish on hard materials. It is widely used in various industries such as aerospace industry, automobile industry, and medical industry. It can also be used for grinding hard materials, such as PCD/PCBN tools. It is a must-have machine for any industry.

Features:
- Product Name: PCD Grinding Machine
- Name: PCD/PCBN Grinding Machine
- Optical Tube Distance: 300mm
- Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
- Grinding Wheel Height Adjustment: 140mm
- Grinding Wheel Traveling Range: 170mm
- Features: PCD/PCBN Tools grinder, PCD grinding machine, PCD/PCBN materials grinder
Technical Parameters:
Name | Specifications |
---|---|
Image System Resolution | 1280dpi*960dpi |
Cross Table Swiveling Angle | 270° |
Grinding Wheel Oscillation Distance | 0-40mm(adjustable) |
Tip Radius | 0-70mm |
Grinding Wheel Inclination | -13°~+24° |
Grinding Wheel Height Adjustment | 140mm |
Pixel Size | 3.75um*3.75um |
Name | PCD/PCBN Grinding Machine |
Grinding Wheel Traveling Range | 170mm |
Dimension | 1200*1168*1530mm(L*H*W) |
Application | Hard materials grinder, PCD/PCBN Tools grinder |
Applications:
CTSTC's ZT-90CNC PCD Grinding Machine is a specialized machine used for grinding PCD (polycrystalline diamond) and PCBN (polycrystalline boron nitride) materials. It is a precise and reliable machinery engineered with advanced technology and features a high degree of automation. This machine is equipped with a grinding wheel inclination of -13°~+24°, grinding wheel height adjustment of 140mm, spindle speed of 0-42000RPM, and grinding wheel oscillation frequency of 0-45/min. It also has an image system resolution of 1280dpi*960dpi, which ensures precision and accuracy of the grinding process. In addition, the machine is certified CE, and comes with a minimum order quantity of one. It is shipped in a plywood box, and delivery time is 45-60 days. Payment terms can be TT/LC/Western Union.
The ZT-90CNC PCD Grinding Machine is an ideal solution for various industries such as automotive, aerospace, electronics, medical, and more. It is perfect for grinding PCD/PCBN materials, and for achieving high precision and accuracy in the grinding process. It is also suitable for grinding complex shapes and can be used for manufacturing turbine blades, medical saw blades, cutting tools, and other precision components. With the CTSTC's ZT-90CNC PCD Grinding Machine, users can expect excellent performance and superior results.
Customization:
PCD Grinding Machine
Brand Name: CTSTC
Model Number: ZT-90CNC
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1
Packaging Details: plywood box
Delivery Time: 45-60 days
Payment Terms: TT/LC/Western Union
PCD/PCBN materials grinder
Grinding Wheel Inclination: -13°~+24°
Image Magnification: 45-250 Times(digital Zoom)
Grinding Wheel Size: 150*40*40mm(D*H*T)
Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
Grinding Wheel Height Adjustment: 140mm
Support and Services:
PCD Grinding Machine Technical Support and Service
- Technical support: We provide technical support from our experienced engineers for the installation, debugging, and maintenance of the PCD grinding machine.
- Service: We offer a comprehensive service package that includes regular maintenance, repair, and spare parts replacement.
Packing and Shipping:
The PCD Grinding Machine is packaged and shipped in the following manner:
- The machine is secured on a pallet and wrapped in waterproof plastic.
- The pallet is placed inside a wooden crate and sealed with screws and nails.
- The crate is then shrink-wrapped and placed on a truck for shipping.
- The truck is transported to the destination and the machine is unloaded with a forklift.
