High Performance PCD Grinder Optical Tube Distance 300mm For Precision Grinding

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Spindle Speed 0-42000RPM(adjustable) Optical Tube Distance 300mm
Grinding Wheel Height Adjustment 140mm Cross Table Swiveling Angle 270°
Image Magnification 45-250 Times(digital Zoom) Net Weight 1450kgs
Image System Resolution 1280dpi*960dpi Spindle Power 2.2kw
High Light

High Performance PCD Grinder


Precision PCD Grinder


Rotating PCD Grinding Machine

Leave a Message
Product Description

High-Performance PCD Grinder Optical Tube Distance 300mm For Precision Grinding

Product Description:

PCD Grinding Machine is an advanced tool grinder designed to meet the requirements of grinding PCD/PCBN tools. It is equipped with an optical tube distance of 300mm, grinding wheel height adjustment of 140mm, readout of linear gratings of 0.001mm, dimension of 1200*1168*1530mm(L*H*W), and size of cross table of 210*160mm with 4T grooves. It is widely used in the grinding of PCD/PCBN tools due to its high accuracy and efficiency.

The PCD Grinding Machine is constructed with a rigid frame, high precision spindle, and precise linear guide ways. It has a high-speed grinding spindle with a built-in motor, allowing for a wide range of grinding angles and depths. The grinding wheel is adjustable to various angles and diameters, providing high quality and precision grinding. The machine also has an automatic lubrication system and dust collection system for easy and safe operation.

PCD Grinding Machine is an ideal choice for those who require a precise and efficient tool for grinding PCD/PCBN tools. With its high accuracy and efficiency, it is the ideal machine for any workshop or industrial setting. It is designed to provide a cost-effective and efficient solution for grinding PCD/PCBN tools, and is sure to be a great addition to any workshop.

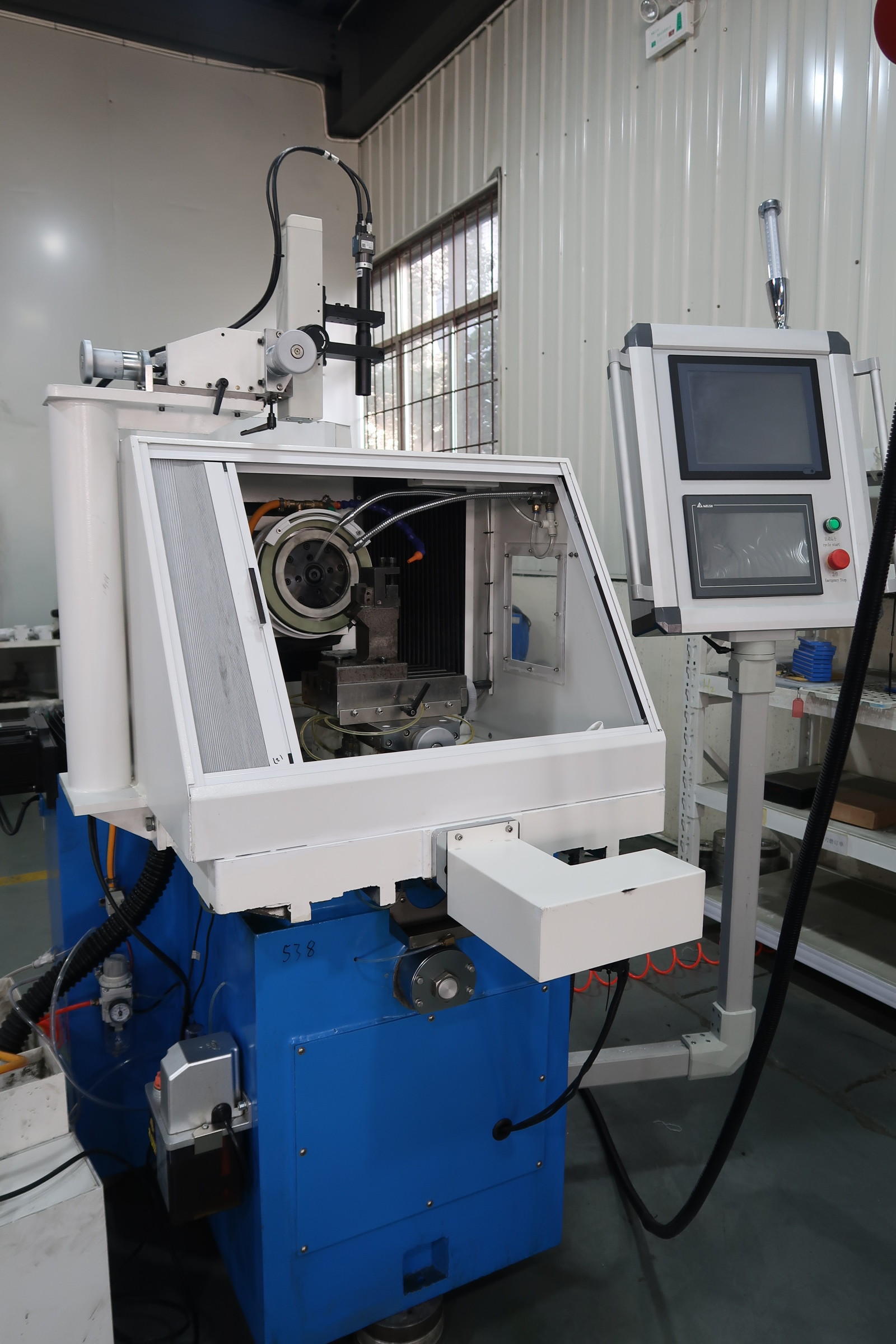

High Performance PCD Grinder Optical Tube Distance 300mm For Precision Grinding 0


  • Product Name: PCD Grinding Machine
  • Image Magnification: 45-250 Times(digital Zoom)
  • Dimension: 1200*1168*1530mm(L*H*W)
  • Image System Resolution: 1280dpi*960dpi
  • Grinding Wheel Size: 150*40*40mm(D*H*T)
  • Spindle Speed: 0-42000RPM(adjustable)
  • Specialized in PCD/PCBN materials grinding
  • Perfectly suitable for PCD grinding
  • High-performance PCD grinding machine

Technical Parameters:

PCD Grinding Machine Technical Parameters
Property Value
Grinding Wheel Inclination -13°~+24°
Grinding Wheel Height Adjustment 140mm
Grinding Wheel Oscillation Distance 0-40mm (adjustable)
Grinding Pressure 0-450N (adjustable)
Readout of Linear Gratings 0.001mm
Optical Tube Distance 300mm
Tip Radius 0-70mm
Dimensions (L * H * W) 1200 * 1168 * 1530mm
Grinding Wheel Traveling Range 170mm
Cross Table Swiveling Angle 270°
Specialty PCD/PCBN materials grinder, Hard materials grinder, PCD grinder


CTSTC ZT-90CNC PCD/PCBN materials grinder is mainly used for precision grinding of hard materials such as PCD, PCBN, CVD, tungsten carbide, ceramics, sapphire and so on. It is equipped with a high-precision grinding head, a high-speed rotating grinding wheel and a large-diameter grinding wheel. The tip radius can be adjusted from 0-70mm, and the image magnification can be adjusted from 45-250 times (digital zoom). The 270° cross table swiveling angle, 150*40*40mm(D*H*T) grinding wheel size, and 1200*1168*1530mm(L*H*W) dimension of ZT-90CNC makes it perfect for precise grinding. It is highly efficient and fast, with a minimum order quantity of 1, and a packaging of plywood box. It is CE certified, and payment can be made via TT/LC/Western Union. Delivery time is 45-60 days.



Are you looking for a reliable and efficient PCD grinding machine? CTSTC's ZT-90CNC is the perfect solution for you! It is CE certified and comes with a minimum order quantity of 1. It is packed in a plywood box and offers a delivery time of 45-60 days. Payment terms include TT/LC/Western Union.

This PCD grinder features a grinding wheel inclination of -13°~+24°, grinding wheel size of 150*40*40mm(D*H*T), grinding wheel traveling range of 170mm, and cross table swiveling angle of 270°. It is specifically designed for grinding PCD/PCBN materials and is an ideal choice for those who are seeking a high-precision machine.

Choose CTSTC's PCD/PCBN grinding machine today and get the best solution for your grinding needs!
