Reliable PCD Grinding Machine With 2.2kw Spindle Power And 300mm Optical Tube Distance

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Tip Radius 0-70mm Grinding Wheel Size 150*40*40mm(D*H*T)
Dimension 1200*1168*1530mm(L*H*W) Image System Resolution 1280dpi*960dpi
Size Of Cross Table 210*160mm With 4T Grooves Spindle Power 2.2kw
Grinding Wheel Oscillation Distance 0-40mm(adjustable) Optical Tube Distance 300mm
High Light

Reliable PCD Grinding Machine


2.2kw Spindle Power PCD Grinder


300mm Distance PCD Grinding Machine

Leave a Message
Product Description

Reliable PCD Grinding Machine With 2.2kw Spindle Power And 300mm Optical Tube Distance

Product Description:

PCD Grinding Machine is a precision instrument specially designed for grinding PCD and PCBN tools. It has a robust and reliable construction, with a cross table swiveling angle of 270°, readout of linear gratings of 0.001mm, an optical tube distance of 300mm, a grinding wheel traveling range of 170mm, and a spindle power of 2.2kw. This PCD grinding machine is ideal for grinding PCD and PCBN tools, and provides precise and accurate results. It is suitable for both large-scale production and small-scale production, and is a great choice for those who need to grind PCD/PCBN tools.

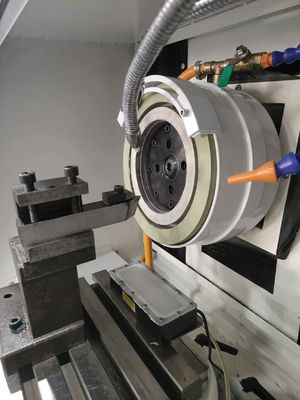

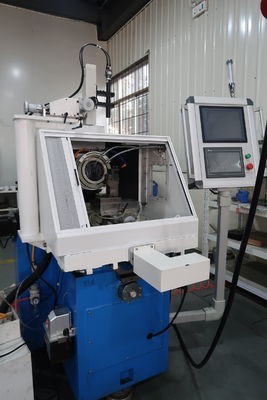

Reliable PCD Grinding Machine With 2.2kw Spindle Power And 300mm Optical Tube Distance 0


  • Product Name: PCD Grinding Machine
  • Grinding Wheel Height Adjustment: 140mm
  • Cross Table Swiveling Angle: 270°
  • Image Magnification: 45-250 Times (digital Zoom)
  • Image System Resolution: 1280dpi*960dpi
  • Dimension: 1200*1168*1530mm (L*H*W)
  • Highlight of the product: PCD grinder, PCD grinder, PCD/PCBN Tools grinder

Technical Parameters:

Name Parameters
Grinding Wheel Size 150*40*40mm(D*H*T)
Name PCD/PCBN Grinding Machine
Size of Cross Table 210*160mm With 4T Grooves
Grinding Wheel Oscillation Distance 0-40mm(adjustable)
Grinding Wheel Traveling Range 170mm
Dimension 1200*1168*1530mm(L*H*W)
Net Weight 1450kgs
Grinding Wheel Inclination -13°~+24°
Grinding Pressure 0-450N(adjustable)
Image Magnification 45-250 Times(digital Zoom)


The CTSTC ZT-90CNC PCD Grinding Machine is perfect for grinding hard materials, such as PCD and PCBN materials. It is capable of producing high precision grinding results with its adjustable spindle speed of 0-42000RPM, grinding wheel size of 150*40*40mm(D*H*T), tip radius of 0-70mm, and adjustable grinding pressure of 0-450N. Its digital zoom offers image magnification from 45 to 250 times, ensuring the finest results. The machine is certified with CE and comes with a minimum order quantity of 1. It is usually delivered within 45 to 60 days after payment and is packed in a plywood box. Payment can be made via TT/LC/Western Union.



Customize your PCD Grinding Machine with CTSTC’s ZT-90CNC model! Our PCD grinding machine is certified with CE and the minimum order quantity is 1. It is packaged with plywood boxes and delivered within 45-60 days. Payment terms are TT/LC/Western Union. The spindle power is 2.2kw and the spindle speed is adjustable from 0-42000RPM. The optical tube distance is 300mm and the grinding wheel inclination is from -13° to +24°. The image system resolution is 1280dpi*960dpi. Our PCD grinder is the ideal choice for hard materials grinder.
