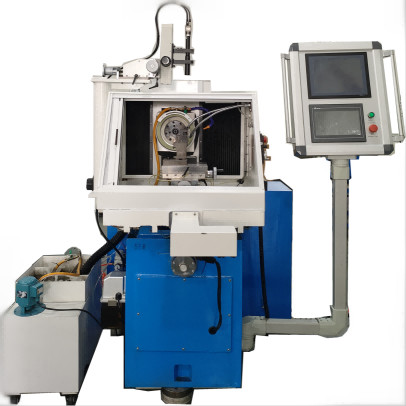

PCD Grinding Machine Equipped Double Grinding Wheel for Fine and Rough Grinding

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1
Packaging Details plywood box
Delivery Time 45-60 days
Payment Terms TT/LC/Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Grinding Wheel Oscillation Distance 0-40mm(adjustable) Tip Radius 0-70mm
Dimension 1200*1168*1530mm(L*H*W) Net Weight 1450kgs
Grinding Wheel Traveling Range 170mm Readout Of Linear Gratings 0.001mm
Cross Table Swiveling Angle 270° Spindle Speed 0-42000RPM(adjustable)
High Light

Precision PCD Grinding Machine


Adjustable Distance PCD Grinding Machine


Adjustable Oscillation Distance PCD Grinder

Leave a Message
Product Description

PCD Grinding Machine With Double Grinding Wheel for Fine and Rough Grinding

Product Description:

Our PCD Grinding Machine is designed for grinding PCD and PCBN materials. It is equipped with a grinding wheel oscillation distance adjustable between 0-40mm, an optical tube distance of 300mm, a spindle power of 2.2kw, a grinding wheel height adjustment of 140mm and a grinding wheel traveling range of 170mm. It is the perfect choice for grinding PCD/PCBN tools and materials. This machine features high precision and stability, long life time, easy operation, and low energy consumption. With our PCD Grinder, you can achieve a high efficiency and quality grinding result.

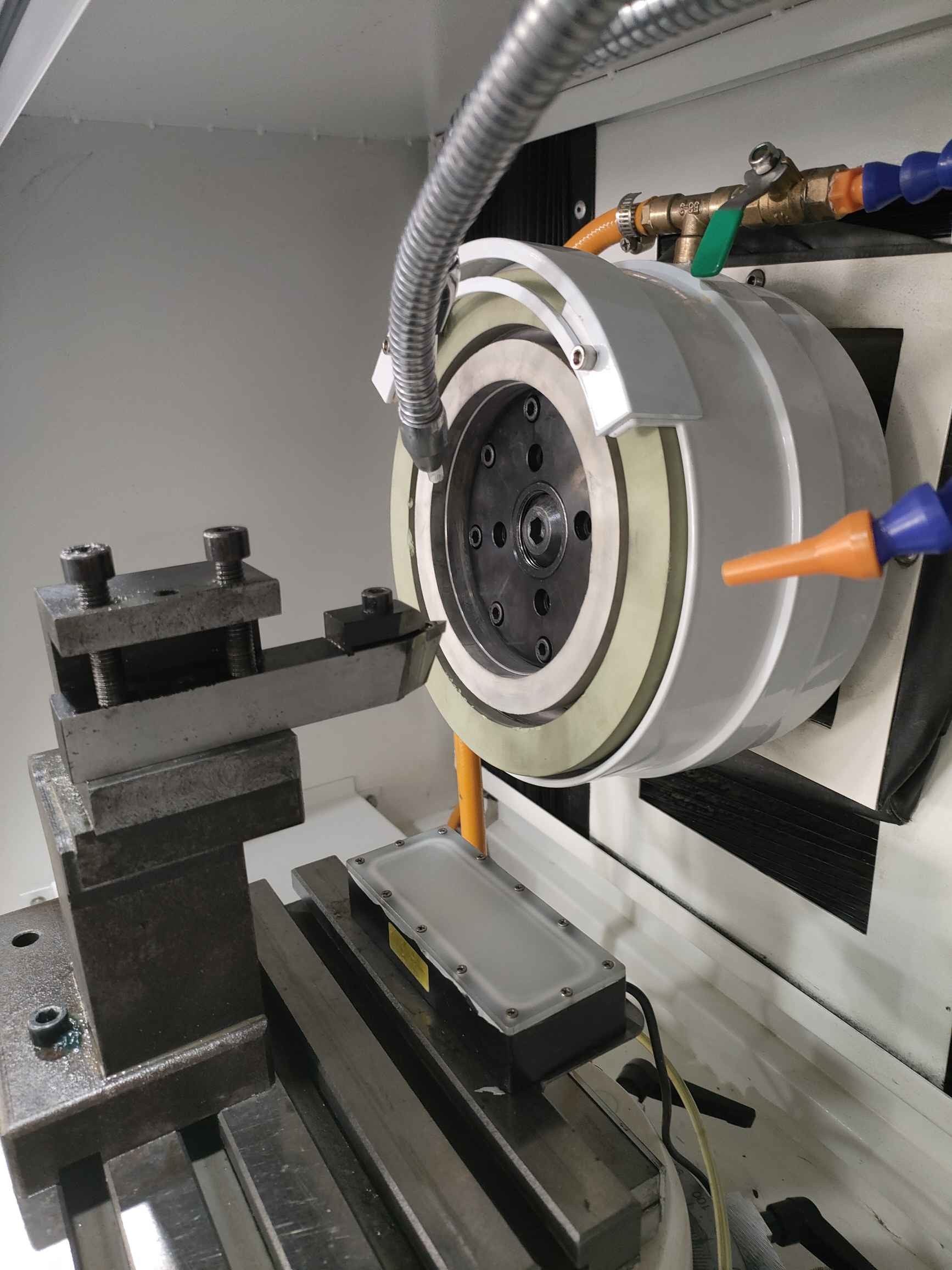

PCD Grinding Machine Equipped Double Grinding Wheel for Fine and Rough Grinding 0


  • Product Name: PCD Grinding Machine
  • Dimension: 1200*1168*1530mm(L*H*W)
  • Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
  • Pixel Size: 3.75um*3.75um
  • Grinding Wheel Inclination: -13°~+24°
  • Spindle Power: 2.2kw
  • Hard Materials Grinder
  • PCD Grinder
  • PCD Grinder Machine

Technical Parameters:

Property Value
Name PCD/PCBN Grinding Machine
Pixel Size 3.75um*3.75um
Grinding Wheel Traveling Range 170mm
Grinding Wheel Oscillation Frequency 0-45/min(adjustable)
Image System Resolution 1280dpi*960dpi
Readout of Linear Gratings 0.001mm
Grinding Wheel Inclination -13°~+24°
Net Weight 1450kgs
Grinding Pressure 0-450N(adjustable)
Dimension 1200*1168*1530mm(L*H*W)


CTSTC ZT-90CNC PCD grinding machine is designed for grinding hard materials with fast speed, high precision and long service life. It is widely used in various industries such as aerospace, automotive, electrical and electronics, medical, and tooling. Its features include:

  • CE certified, meeting the highest quality standards.
  • Minimum order quantity of 1.
  • Highly efficient grinding wheel with tip radius from 0-70mm.
  • Pixel size of 3.75um*3.75um.
  • Optical tube distance of 300mm.
  • Image system resolution of 1280dpi*960dpi.
  • Grinding wheel inclination of -13°~+24°.
  • Packaged in plywood box for ultimate protection during transit.
  • Delivery time of 45-60 days.
  • Various payment terms available, including TT/LC/Western Union.
  • Ideal for grinding hard materials with fast speed, high precision and long service life.

CTSTC ZT-90CNC PCD grinding machine is your ideal choice if you are looking for a high quality, reliable and efficient hard materials grinder.



Customized Service for PCD Grinding Machine

Brand Name: CTSTC
Model Number: ZT-90CNC
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1
Packaging Details: plywood box
Delivery Time: 45-60 days
Payment Terms: TT/LC/Western Union
Spindle Power: 2.2kw
Grinding Wheel Traveling Range: 170mm
Grinding Wheel Height Adjustment: 140mm
Optical Tube Distance: 300mm
Grinding Wheel Oscillation Frequency: 0-45/min(adjustable)

PCD/PCBN Tools Grinder

Our PCD Grinding Machine is designed for grinding PCD/PCBN tools and materials. It is with high accuracy and good stability, and is suitable for mass production. It is an ideal choice for PCD/PCBN tools production.

Features of PCD/PCBN Materials Grinder
  • High accuracy and good stability
  • Suitable for mass production
  • Spindle power of 2.2kw
  • Grinding wheel traveling range of 170mm
  • Grinding wheel height adjustment of 140mm
  • Optical tube distance of 300mm
  • Grinding wheel oscillation frequency of 0-45/min (adjustable)

Support and Services:

PCD Grinding Machine technical support and services include:

  • 24-hour online technical support and troubleshooting services.
  • On-site installation and commissioning.
  • Provide professional training services for operators.
  • Provide regular maintenance services.
  • Provide spare parts and accessories.
  • Provide an after-sales service system.

Packing and Shipping:

Packaging and Shipping for PCD Grinding Machine

PCD Grinding Machine will be packaged in a wooden crate and lined with foam to ensure that it is fully protected during the shipping process. The wooden crate will be sealed and labeled with the product name, model, and serial number. The crate will be placed on a pallet for easy handling and shipment.

All packaging materials for the PCD Grinding Machine will meet the requirements of international standards. The shipment will be tracked and insured for the full value of the product. We will work with the customer to ensure that the delivery is done on time and that all packaging and shipping requirements are met.
