High Efficiency PCD/PCBN Tools Grinder With 4200r/Min Grinding Wheel Speed
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spinder Power||2.2kW||After-sales Service Proviede||Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training|
|Product Name||High Efficiency PCD/PCBN Tools Grinder With 4200r/min Grinding Wheel Speed||Key Word||Grinding Machine For PCD/PCBN|
|Grinding Wheel Size||150*40*40mm||Power||50Hz|
|Application||Ultra Hard Material Grinding||CNC Or Not||Yes|
4200r/Min PCBN Tools Grinder,
PCD PCBN Tools Grinder,
50Hz PCD Grinding Machine

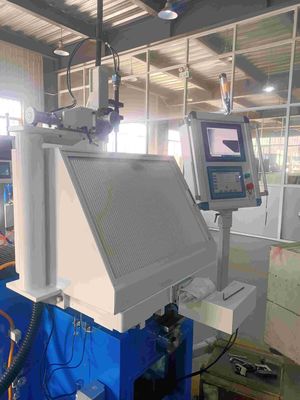

High Efficiency PCD/PCBN Tools Grinder with 4200r/min Grinding Wheel Speed
ZT-90CNC is an economical grinding machine designed based on the ZT-90 to meet the automation manufacturing and sophisticated demands of toolmakers working with both hard and ultra-hard materials, such as PCD, PCBN and hard alloy.
• Extremely rigid construction with heavy duty cast iron body, more than
18 months natural ageing, stable and durable.
• The spindle can realize lifting and angle adjustment, which embodies the
perfect combination of precision, rigidity and dexterity.
• 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.
• Using the latest vision technology, realizes on-line detection, automatic
grinding, parameter memory, machining error alarm, etc., comprehensively improves the machining efficiency, accuracy, automation and stability.
• Spindle motor adopts brush less motor, stable and reliable.
• The whole pneumatic system is of JAPAN SMC brand, to get rapid feed
and outfeed and flexible grinding.
• Equipped with electronic handwheel, can easily adjust the position of
each machining axis and achieve manual grinding.
Image System Resolution
Optical Tube Distance
45-250 times (digital zoom)
|Grinding Pressure||0-450N (adjustable)|
|Spindle Speed||0-4200RPM (adjustable)|
|Grinding Wheel Size||150*40*40mm (D*H*T)|
|Grinding Wheel Oscillation Frequency||0-45/min (adjustable)|
|Grinding Wheel Oscillation Distance||0-40mm (adjustable)|
|Grinding Wheel Height Adjustment||140mm|
|Grinding Wheel Traveling Range||170mm|
|Grinding Wheel Inclination||-13°~+24°|
|Cross Table Swiveling Angle||270°|
|Size of Cross Table||210mm*160mm with 4T grooves|
|Readout of Linear Gratings||0.001mm|
