Automatic Cutting Tools Grinder For PCD / PCBN HSS Materials Grinding

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1200*1168*1530mm
Delivery Time 45-60 days after prepayment
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Weight 1450kgs After-sales Service Proviede Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training
Product Name Automatic Cutting Tools Grinder For PCD/PCBN HSS Materials Grinding Key Word PCD/PCBN Grinder
Dimension 1200*1168*1530mm Warranty 2 Years
Application PCD/PCBN Grinding Automatic Grade Automatic
High Light

Precision HSS Materials Grinding Grinder


PCBN Materials Tools Grinder


PCBN Cutting Tools Grinder

Leave a Message
Product Description

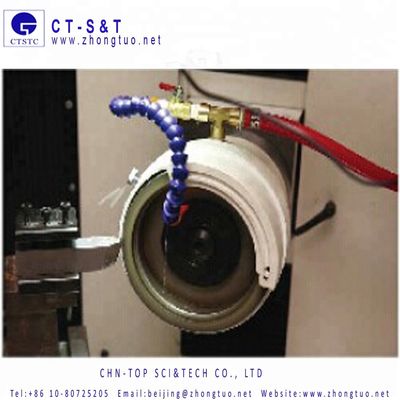

ZT-90 PCD/PCBN Tools' Grinder


Technical Parameters


Tip Radius 0-70mm
Grinding Pressure 0-450N (adjustable)
Spindle Speed 0-4200RPM (adjustable)
Grinding Wheel Size 150*40*40mm (D*H*T)
Grinding Wheel Oscillation Frequency 0-45/min (adjustable)
Grinding Wheel Oscillation Distance 0-40mm (adjustable)
Grinding Wheel Height Adjustment 140mm
Grinding Wheel Traveling Range 170mm
Grinding Wheel Inclination -13°~+24°
Cross Table Swiveling Angle 270°
Size of Cross Table 210mm*160mm with 4T grooves
Readout of Linear Gratings 0.001mm
Spindle Power 2.2kW
Dimension 1200*1168*1530mm (L*H*W)
Net Weight 1450kgs



















ZT-90 is a precision tools'grinding machine which in-cooperate the necessary features required for the economical manufacturing and regrinding of a wide range of PCD, PCBN, carbide and HSS cutting tools.


Automatic Cutting Tools Grinder For PCD / PCBN HSS Materials Grinding 0


Design Features:


• Machine body and all casts are more than 18 months natural ageing.

• Spindle motor adopts brush less motor, solid and durable.

• The grinding head realizes the spindle lifting and angle adjustment,

which embodies the perfect combination of precision, rigidity and


• The whole pneumatic system is of JAPAN SMC, to get rapid feed and

outfeed and flexible grinding.

• CCD optical system equipped with LCD, can realize online observation

and monitoring.

• The swing axis provides two options, servo motor drive and mechanical

drive. Servo motor drive can realize the swing amplitude, swing

frequency and swing center position of the grinding head non-stop

adjustment, improve production efficiency.

• Equipped with automatic lubrication pump, complete automatic lubrication


Automatic Cutting Tools Grinder For PCD / PCBN HSS Materials Grinding 1

Company Introduction

Originally founded by graduates from Tsinghua University, CHN-TOP SCI & TECH CO., LTD. is a high-tech enterprise specialized in diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high precision processing equipments (PCD/PCBN tools' grinders, vacuum brazing machines, laser cutting and engraving machines, laser processing center). We offer pre-machining services (PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing, etc. ), and distribute world famous PCD/PCBN blanks. Also supply professional consultation and advanced technical services.

We are your only one stop factory in the field of ultra-hard materials processing with a good reputation in the global market.
