Ultra Hard Material Grinder Automatic Grinding Machine Adjustable Spindle Speed
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Size | 3.75um*3.75um | Image System Resolution | 1280dpi**960dpi |
|---|---|---|---|
| Product Name | China Top Hot Selling Ultra-hard Material Grinder Automatic Grinding Machine | Key Word | PCD/PCBN Grinder |
| Tip Radius | 0-70mm | Grinding Pressure | 0-450N |
| Application | PCD/PCBN Grinding | Automatic Grade | Fully Automatic |
| Highlight | Adjustable Spindle Speed Hard Material Grinder,Adjustable Grinding Pressure PCD Grinder,Ultra Hard Material Grinding Machine |
||
Product Description
China Top Hot Selling Ultra-hard Material Grinder Automatic Grinding Machine
Technical Parameters
| Tip Radius | 0-70mm |
| Grinding Pressure | 0-450N (adjustable) |
| Spindle Speed | 0-4200RPM (adjustable) |
| Grinding Wheel Size | 150*40*40mm (D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min (adjustable) |
| Grinding Wheel Oscillation Distance | 0-40mm (adjustable) |
| Grinding Wheel Height Adjustment | 140mm |
| Grinding Wheel Traveling Range | 170mm |
| Grinding Wheel Inclination | -13°~+24° |
| Cross Table Swiveling Angle | 270° |

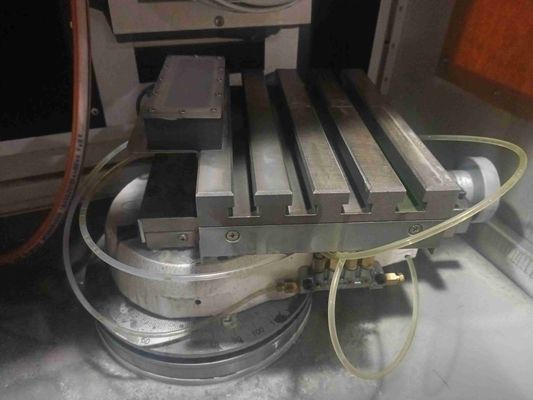

| Size of Cross Table | 210mm*160mm with 4T grooves |
| Readout of Linear Gratings | 0.001mm |
| Spindle Power | 2.2kW |
| Dimension | 1200*1168*1530mm (L*H*W) |
| Net Weight | 1450kgs |
ZT-90CNC is an economical grinding machine designed based on the ZT-90 to meet the automation manufacturing and sophisticated demands of toolmakers working with both hard and ultra-hard materials, such as PCD, PCBN and hard alloy.
Design Features:
• Extremely rigid construction with heavy duty cast iron body, more than 18 months natural ageing, stable and durable.
• The spindle can realize lifting and angle adjustment, which embodies the perfect combination of precision, rigidity and dexterity.
• 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.
• Using the latest vision technology, realizes on-line detection, automatic grinding, parameter memory, machining error alarm, etc., comprehensively improves the machining efficiency, accuracy, automation and stability.
• Spindle motor adopts brush less motor, stable and reliable.
• The whole pneumatic system is of JAPAN SMC brand, to get rapid feed and outfeed and flexible grinding.
• Equipped with electronic handwheel, can easily adjust the position of each machining axis and achieve manual grinding.
Q & A
1. Q:Are you a factory or a trading company?
A:We are a professional manufacturer of ultra-hard material tools
2. Q:How long is your production time?
A:Generally it is 45-60 days after the order form is confirmed.
3.Q:What is the minimum quantity?
A:Any quantity order is available.
Q:Do you have inspection procedure before shipping?
A:Yes,we do 100% QC inspection
