PCD/PCBN CE Automatic CNC Grinder For Ultra Hard Tools Process
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Guarranty||2 Years||After-sales Service||On-line Training|
|Payment||T/T, M/T, D/D, L/C||Minimum Order||1 Set|
|Application||For Ultra Hard Material Grinding||Product Name||PCD/PCBN Automatic Grinder For Ultra Hard Tools Grinding Process|
|Key Word||PCD/PCBN Grinder||Packing Size||1850*2100*1650mm|
CE Automatic CNC Grinder,
PCD Automatic CNC Grinder,
PCBN Automatic CNC Grinder
PCD/PCBN Automatic Grinder For Ultra Hard Tools Grinding Process

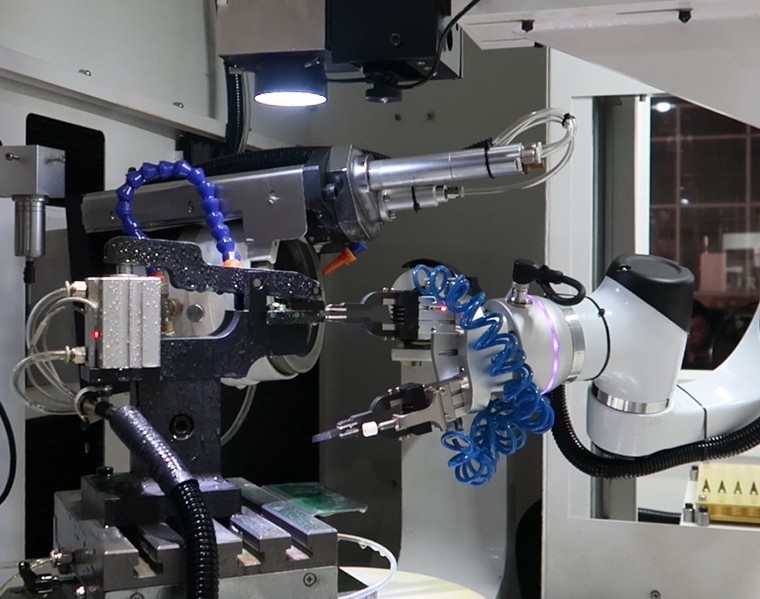

ZT-180 is a high precision PCD & PCBN tools automatic grinder, especially for indexable inserts and milling cutters. The feed shaft is equipped with a linear motor, which has more precise movement and fast reaction speed. It can grind large radius and irregular curves by interpolation through two-axis linkage. High precision grinding of complex curve edge such as groove cutter can be accomplished in one clamping. Two set of grinding wheel dressers, one is responsible for grinding wheel leveling, and the other is responsible for cleaning the surface of grinding wheel online. We can also provide professional high precision rotary tool attachment, 4-axis linkage, realize automatic and manual grinding.
• Extremely rigid construction with heavy duty cast iron body, more than 18 months natural
ageing, stable and durable.
• SCHNEEBERGER heavy duty and precision linear slide guide for its accuracy and long life
• Vertical axis reducer adopts high precision reducer, almost zero clearance.
• 5-axis CNC and 4-axis linkage, the whole grinding process is fully automatic and
• Linear grating and angle encoder are FAGOR products, ensure measurement accuracy.
• Equipped with high precision and high sens巾vity probe to realize on-line measurement.
• The main servo motor is of Yaskawa servo motor.
• Feed shaft adopts a linear motor, with good rig心ty, high precision and fast reaction.
• Spindle motor is of Taiwan brushless motor, stable and durable. Electric spindle can also be
• Two sets of grinding wheel dressers, one is responsible for grinding wheel leveling, the other
is responsible for cleaning the surface of grinding wheel on line
• Equipped with electronic handwheel, can easily ad」ust the position of each machining shaft
and achieve manual grinding.
|Grinding Pressure||0-450N (adjustable)|
|Spindle Speed||0-4200RPM (adjustable)|
|Grinding Wheel Size||150*40*40mm (D*H*T)|
|Grinding Wheel Oscillation Frequency||0-45/min (adjustable)|
|Grinding Wheel Oscillation Distance||0-40mm (adjustable)|
|Grinding Wheel Height Adjustment||140mm|
|Grinding Wheel Traveling Range||400mm|
|Grinding Wheel Inclination||-13°~+24°|
|Cross Table Swiveling Angle||270°|
|Size of Cross Table||210mm*160mm with 4T grooves|
|Readout of Linear Gratings||0.001mm|
CHN-TOP SCI & TECH CO., LTD is a high-tech enterprise founded by young technology graduates of Tsinghua University, long time focus on the ultra-hard tools (such as PCD,PCBN,MD,ND,CVD diamond tool) field,is a machine tool builder that specializes in designing and supplying precision machines (such as Grinding Machine for Ultra-Hard Tools, Vacuum Brazing Machine, Laser Cutting Machine, Indexable Insert Tip Periphery Grinding Machine, Polishing Machine for PCD&PCBN Tools etc.),as a sales agent for the abroad advanced PCD and PCBN, develop the advanced processing technology for the ultra-hard materials, provide the technical consultation and special processing services, as a global integrator to provide the most complete solution for ultra-hard tools, products sell all over the world.
