Artificial Diamond PCD CNC Grinding Machine For Cubic Boron Nitride And Hard Alloy

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-180
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1850*2100*1650mm
Delivery Time 45-60 days
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Guarranty 2 Years After-sales Service On-line Training
Payment T/T, M/T, D/D, L/C Minimum Order 1 Set
Application For PCD/PCBN Grinding Product Name Automatic Grinder For PCD/PCBN Tools Grinding Process
Key Word PCD/PCBN Grinder Packing Size 1850*2100*1650mm
High Light

Artificial Diamond CNC Grinding Machine


0.001mm CNC Grinding Machine


Hard Alloy CNC Grinding Machine

Leave a Message
Product Description


Automatic Grinder For PCD/PCBN Tools Grinding Process


CHN-TOP SCI & TECH CO., LTD is a high-tech enterprise founded by young technology graduates of Tsinghua University, long time focus on the ultra-hard tools (such as PCD,PCBN,MD,ND,CVD diamond tool) field,is a machine tool builder that specializes in designing and supplying precision machines (such as Grinding Machine for Ultra-Hard Tools, Vacuum Brazing Machine, Laser Cutting Machine, Indexable Insert Tip Periphery Grinding Machine, Polishing Machine for PCD&PCBN Tools etc.),as a sales agent for the abroad advanced PCD and PCBN, develop the advanced processing technology for the ultra-hard materials, provide the technical consultation and special processing services, as a global integrator to provide the most complete solution for ultra-hard tools, products sell all over the world.

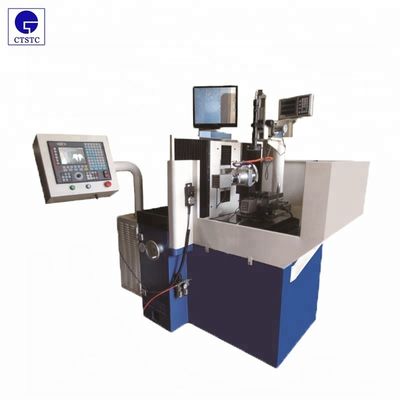

ZT-180 Type CNC Grinder is mainly used for grinding multiple cutters and parts such as artificial diamond, cubic boron nitride and hard alloy etc. The machine tool has sufficient rigidity and precision, which can realize constant pressure grinding and satisfy the grinding of high-precision and high-finish cutters to obtain the good grinding result.



Artificial Diamond PCD CNC Grinding Machine For Cubic Boron Nitride And Hard Alloy 0


Design Features:


• Extremely rigid construction with heavy duty cast iron body, more than 18 months natural

ageing, stable and durable.

• SCHNEEBERGER heavy duty and precision linear slide guide for its accuracy and long life

• Vertical axis reducer adopts high precision reducer, almost zero clearance.

• 5-axis CNC and 4-axis linkage, the whole grinding process is fully automatic and

closed-loop control

• Linear grating and angle encoder are FAGOR products, ensure measurement accuracy.

• Equipped with high precision and high sens巾vity probe to realize on-line measurement.

• The main servo motor is of Yaskawa servo motor.

• Feed shaft adopts a linear motor, with good rig心ty, high precision and fast reaction.

• Spindle motor is of Taiwan brushless motor, stable and durable. Electric spindle can also be


• Two sets of grinding wheel dressers, one is responsible for grinding wheel leveling, the other

is responsible for cleaning the surface of grinding wheel on line

• Equipped with electronic handwheel, can easily ad」ust the position of each machining shaft

and achieve manual grinding.


Artificial Diamond PCD CNC Grinding Machine For Cubic Boron Nitride And Hard Alloy 1Artificial Diamond PCD CNC Grinding Machine For Cubic Boron Nitride And Hard Alloy 2

Artificial Diamond PCD CNC Grinding Machine For Cubic Boron Nitride And Hard Alloy 3


Technical Parameters


Tip Radius Unlimited
Grinding Pressure 0-450N (adjustable)
Spindle Speed 0-4200RPM (adjustable)
Grinding Wheel Size 150*40*40mm (D*H*T)
Grinding Wheel Oscillation Frequency 0-45/min (adjustable)
Grinding Wheel Oscillation Distance 0-40mm (adjustable)
Grinding Wheel Height Adjustment 140mm
Grinding Wheel Traveling Range  400mm
Grinding Wheel Inclination -13°~+24°
Cross Table Swiveling Angle 270°
Size of Cross Table 210mm*160mm with 4T grooves
Readout of Linear Gratings 0.001mm
Spindle Power 2.2kW
Dimension 1850*2100*1650mm (L*H*W)
Net Weight 2080kgs
