5 Axis CNC Grinding Machine For PCD / PCBN Tools

Place of Origin CHINA
Brand Name CTSTC
Certification CE
Model Number ZT-90CNC
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden box
Delivery Time 45-60 days after prepayment
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 30 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Spinder Power 2.2kW After-sales Service Proviede Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training
Product Name ZT-90CNC PCD/PCBN Tools' Grinder Key Word Grinding Machine For PCD/PCBN
Grinding Wheel Size 150*40*40mm Power 50Hz
Application Ultra Hard Material Grinding CNC Or Not Yes
Highlight

CNC Grinding Machine For PCD Tools

,

CNC Grinder For PCBN Tools

,

CNC Grinder For PCD Tools

Leave a Message
Product Description



ZT-90CNC PCD/PCBN Tools' Grinder



ZT-90CNC is an economical grinding machine designed based on the ZT-90 to meet the automation manufacturing and sophisticated demands of toolmakers working with both hard and ultra-hard materials, such as PCD, PCBN and hard alloy.

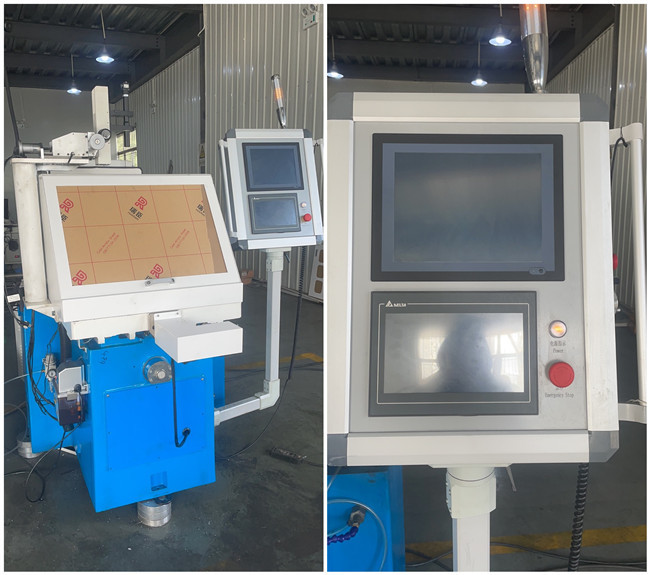

5 Axis CNC Grinding Machine For PCD / PCBN Tools 0





Design Features:



• Extremely rigid construction with heavy duty cast iron body, more than

18 months natural ageing, stable and durable.

• The spindle can realize lifting and angle adjustment, which embodies the

perfect combination of precision, rigidity and dexterity.

• 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.

• Using the latest vision technology, realizes on-line detection, automatic

grinding, parameter memory, machining error alarm, etc., comprehensively improves the machining efficiency, accuracy, automation and stability.

• Spindle motor adopts brush less motor, stable and reliable.

• The whole pneumatic system is of JAPAN SMC brand, to get rapid feed

and outfeed and flexible grinding.

• Equipped with electronic handwheel, can easily adjust the position of

each machining axis and achieve manual grinding.



5 Axis CNC Grinding Machine For PCD / PCBN Tools 15 Axis CNC Grinding Machine For PCD / PCBN Tools 2



5 Axis CNC Grinding Machine For PCD / PCBN Tools 3



Technical Parameters



Image System Resolution

1280dpi*960dpi

Pixel Size

3.75µm *3.75µm

Optical Tube Distance

300mm

Image Magnification

45-250 times (digital zoom)

Tip Radius 0-70mm
Grinding Pressure 0-450N (adjustable)
Spindle Speed 0-4200RPM (adjustable)
Grinding Wheel Size 150*40*40mm (D*H*T)
Grinding Wheel Oscillation Frequency 0-45/min (adjustable)
Grinding Wheel Oscillation Distance 0-40mm (adjustable)
Grinding Wheel Height Adjustment 140mm
Grinding Wheel Traveling Range  170mm
Grinding Wheel Inclination -13°~+24°
Cross Table Swiveling Angle 270°
Size of Cross Table 210mm*160mm with 4T grooves
Readout of Linear Gratings 0.001mm
Spindle Power 2.2kW
Dimension 1200*1168*1530mm (L*H*W)
Net Weight 1450kgs
