High Flexbility PCD Grinding Machine , 5 Axis Tool Grinder Fully Automatic
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel No. | ZT-90CNC | Linear Slide | SCHNEEBERGER |
---|---|---|---|
Reducer | YASKAWA | Axises | 5 Axis |
High Light | PCD Grinding Machine 5 axis,high flexbility PCD Grinding Machine,fully automatic 5 axis tool grinder |
Radius Tip | 0-70mm | |
---|---|---|
Grinding pressure | 0-450N Adjustable | |
Spindle speed | 0-4200RPM adjustable | |
Grinding wheel size | 150*40*40mm (D*H*T) | |
Grinding wheel oscillation frequency | 0-45/min adjustable | |
Grinding wheel oscillation distance | 0-70mm adjustable | |
Grinding wheel height adjustment | 140mm | |
Grinding wheel stroke range | 400mm | |
Grinding wheel inclination | -13°-+24° | |
Cross table swiveling angle | 0-270° | |
Size of cross table | 210*160mm with 4 T slots | |
Workable infeed hand wheel division | 0.001mm/ 1 division | |
Spindle Power | 2.2KW | |
Dimension | 1850*2200*1650mm( L*H*W) | |
Net weight | 2000kgs |
5 AXIS CNC GRINDING MACHINE PRECISION LINEAR SLIDE CNC CONTROL SYSTEM PCD GRINDING MACHINE FOR TOTARY HOLDER
ZT-90CNC Grinding machine is a 5 axis CNC machine which is very economic model
1. Self R&D software to make sure the flexbility of the grinding process
2. It have the software storage programm
3. The rotary holder can opitional
4. JAPAN YASKAWA reducer
5. Easy operation
Design Features
- Extremely rigid construction with heavy duty cast iron body, more than 18 months natural ageing, stable and durable.
- The spindle can realizes lifting and angle adjustment, which embodies the perfect combination of precision, rigidity and dexterity.
- 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.
- Using the latest vision technology, realizes on-line detection, automatic grinding, parameter memory, machining error alarm, etc., comprehensively improve the machining efficiency, accuracy, automation, stability.
- Spindle motor adopts brushless motor, stable and reliable.
- The whole pneumatic system use JAPAN SMC brand, to get a rapid feed and infeed and flexibility grinding.
- Equipped with electronic handwheel, can easily adjust the position of each machining axis and achieve manual grinding.
- Equipped with grinding wheel dresser.
TECHNICAL PARAMETERS
1.Spindle and Grinding Wheel
Diameter of Grinding wheel | 6A2 150*40*40 |
Spindle Power | 2.2KW |
Spindle Speed | 0-4200RPM adjustable |
Grinding wheel Inclination | -13°-+24° |
Grinding Pressure | 0-450N adjustable |
2.Grind Wheel Oscillation( X axis)
Grinding wheel Height Adjustment | 140mm |
Grinding wheel Oscillation Frequency | 0-45/min adjustable |
Grinding wheel Oscillation Distance | 0-70mm adjustable |
Grinding wheel Oscillation Travel Range | 400mm |
3.CCD Monitor System
Max manification times | 70 times |
CCD measuring system | Online system |
Monitor | 17 inch monitor |
Model |
ZT-90CNC |
---|---|
Image system resolution | 1280dpi*960dpi |
Pixel size | 3.75μm *3.75μm |
Optical tube distance | 300mm |
Image magnification | 45-250 times (Digital zoom) |
Tip radius | 0-70mm |
Grinding pressure |
0-450N adjustable |
Spindle speed | 0-4200RPM adjustable |

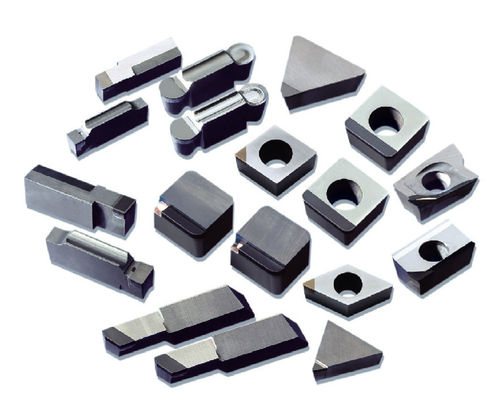

Grinding Samples
Optional Accessories
Factory View
CHN-TOP is the company offer comprehensive solutions for diamond tools making
