Saw Blade CNC Grinding Machine 360 Degree Division For Blade Tools
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No. | ZT-90V | Brand | CHN-TOP |
|---|---|---|---|
| Material | Cast Iron | Machine Name | ZT-90V CNC Saw Blade Grinding Machine |
| Application | PCD TOOLS ,CARBIDE TOOLS ,PCBN TOOLS And Saw Blade | ||
| High Light | Saw Blade cnc grinding machine,360 Degree cnc grinding machine,360 Degree automatic grinder machine |
||
You can tick the products you need and communicate with us in the message board.
| Radius Tip | 0-70mm | |
|---|---|---|
| Grinding pressure | 0-450N Adjustable | |
| Spindle speed | 0-4200RPM adjustable | |
| Grinding wheel size | 150*40*40mm (D*H*T) | |
| Grinding wheel oscillation frequency | 0-45/min adjustable | |
| Grinding wheel oscillation distance | 0-70mm adjustable | |
| Grinding wheel height adjustment | 140mm | |
| Image system resolutionnge | 1280*960 | |
| Image system pixel | 3.75μm*3.75μm | |
| Optical lens object distance | 300mm | |
| Magnification | 45-250 times | |
| CNC division axis resolution | 8arcmin | |
| CNC Y axis resolution | 0.01° |
Product Description

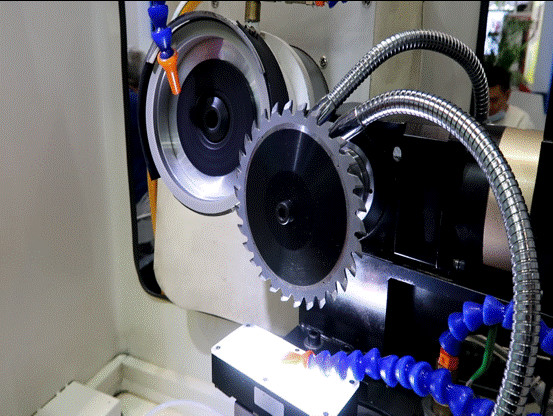

SAW BLADE CNC CONTROL SYSTEM 360 DEGREE DIVISION BLADE TOOLS DIAMOND GRINDING MACHINE
ZT-90V Grinder is a special equipment which focus on grinding diamond V-Cut tools and some saw blades. It’s also can grind carbide tools also. This models is improved on original ZT-90 diamond grinding machine with CNC control axis.
One time fitting can finish grinding work by automatically which it’s high precision. Auto infeed and out feed, automatically scale division and measurements. The software support parameter setting record and can turn to next tip by automatic also .
It’s error code recognize by software. This model is widely used for PCB board V-Cut tool, wooden blades and other diamond or carbide tools of this kind
1. Use a new visual Technology, online measurements, auto grinding at the whole process.
And parameters auto memory , error code alarm, more productivity and efficient.
2. Only one time fitting, then grinding by auto from first to last tip with higher efficient and consistency
3. Machine with a high precision CNC division flange, Precision recognition .
Features
-
1.All cast machine body and cast accessories are average 24 months natural ageing which it’s high rigidity and stability.
2. Grinding head is a up-down spindle and angle adjustable, featuring in high running speed high precision.
3. Pneumatic systems imported from SMC of Japan , fast infeed and out feed worktable with flexible grinding .
4. All of the CNC control system is self -R&D software, embedded CCD and measurement system, all the sensors, servo control are closed control system to make sure it’s accuracy and stability.
TECHNICAL PARAMETERS
ZT-90CNC/V Prameter Specification
1. Optical System
| Image system resolution | 1280*960 |
| Image system pixel | 3.75μm*3.75μm |
| Optical lens object distance | 300mm |
| Magnification | 45-250 times |
2. Servo Control System
| CNC division axis resolution | 8arcmin |
| CNC infeed axis resolution | 0.001mm |
| CNC Y axis resolution | 0.01° |
1. Optical System
| Image system resolution | 1280*960 |
| Image system pixel | 3.75μm*3.75μm |
| Optical lens object distance | 300mm |
| Magnification | 45-250 times |
2. Servo Control System
| CNC division axis resolution | 8arcmin |
| CNC infeed axis resolution | 0.001mm |
| CNC Y axis resolution | 0.01° |
Working Table
Grinding Samples
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
After sales Team
1. Online service for for installation and traing
2. In-door intallation and trianing
3. Software update
4. 24*7 hours hotline
5. 12 months free after sales service
