Online System CNC PCD Grinding Machine High Accuracy For PCD PCBN Tools
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No. | ZT-180 | Linear Slide | SCHNEEBERGER |
|---|---|---|---|
| Reducer | YASKAWA | Axises | 5 Axis |
| High Light | CNC PCD Grinding Machine,Online System PCD Grinding Machine,PCD PCBN Tools diamond grinding machine |
||
You can tick the products you need and communicate with us in the message board.
| Radius Tip | 0-70mm | |
|---|---|---|
| Grinding pressure | 0-450N Adjustable | |
| Spindle speed | 0-4200RPM adjustable | |
| Grinding wheel size | 150*40*40mm (D*H*T) | |
| Grinding wheel oscillation frequency | 0-45/min adjustable | |
| Grinding wheel oscillation distance | 0-70mm adjustable | |
| Grinding wheel height adjustment | 140mm | |
| Grinding wheel stroke range | 400mm | |
| Grinding wheel inclination | -13°-+24° | |
| Cross table swiveling angle | 0-270° | |
| Size of cross table | 210*160mm with 4 T slots | |
| Workable infeed hand wheel division | 0.001mm/ 1 division | |
| Spindle Power | 2.2KW | |
| Dimension | 1850*2200*1650mm( L*H*W) | |
| Net weight | 2000kgs |
Product Description
CNC GRINDING MACHINE FOR PCBN TOOLS PCD GRINDING MACHINE WITH CROSS TABLE AND CNC CONTROL SYSTEM
ZT-180 CNC Grinding machine is a 5 axis CNC machine which suitable for PCD PCBN diamont tools grinding
1. Self R&D software to make sure the flexbility of the grinding process
2. It have the software storage programm
3. The rotary holder can opitional
4. JAPAN YASKAWA reducer
Features
- All machine body and cast accessories is 18 months natural ageing
- SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
- Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable durable
- Use advanced technical CNC control system, 5 axis control, two –axis CNC machining
- The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
- Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
- Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
- LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.
TECHNICAL PARAMETERS
1. Spindle and Grinding Wheel
| Diameter of Grinding wheel | 6A2 150*40*40 |
| Spindle Power | 2.2KW |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel Inclination | -13°-+24° |
| Grinding Pressure | 0-450N adjustable |
2. Grind Wheel Oscillation( X axis)
| Grinding wheel Height Adjustment | 140mm |
| Grinding wheel Oscillation Frequency | 0-45/min adjustable |
| Grinding wheel Oscillation Distance | 0-70mm adjustable |
| Grinding wheel Oscillation Travel Range | 400mm |
3. CCD Monitor System
| Max manification times | 70 times |
| CCD measuring system | Online system |
| Monitor | 17 inch monitor |
|
Model |
ZT-180 |
|---|---|
| Tip Radius | 0-100mm |
| Grinding Pressure | 0-450N adjustable |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel size | 150*40*40mm (D*H*T) |
| Grinding wheel oscillation frequency | 0-45/min adjustable |
| Grinding wheel oscillation distance |
0-70mm adjustable |
| Grinding wheel height adjustment | 140mm |
| Grinding wheel stroke range | 400mm |
| Grinding wheel inclination | -13°-+24° |
| Cross table swiveling angle | 0-270° |
| Size of cross table | 210*160mm with 4 T slots |
| Workable infeed hand wheel division | 0.001mm/ 1 division |
| Spindle Power | 2.2KW |
| Dimension | 1850*2200*1650mm( L*H*W) |

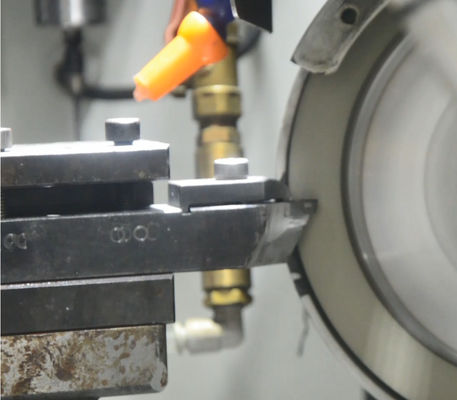

Grinding Samples
Optional Accessories
Factory View
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
