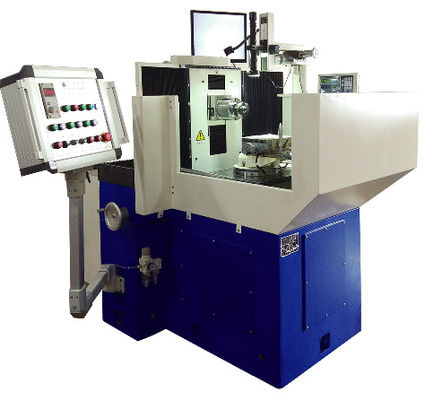

CE Certified 4200RPM PCD Grinding Machine , CNC Tool Grinding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | CHN-TOP | Model No. | ZT-120 |
|---|---|---|---|
| Pneumatic System | JAPAN SMC Brand | CCD Camera | JAPAN Monitor |
| High Light | CE PCD Grinding Machine,4200RPM PCD Grinding Machine,4200RPM cnc tool grinding machine |
||
You can tick the products you need and communicate with us in the message board.
| Radius Tip | 0-70mm | |
|---|---|---|
| Grinding pressure | 0-450N Adjustable | |
| Spindle speed | 0-4200RPM adjustable | |
| Grinding wheel size | 150*40*40mm (D*H*T) | |
| Grinding wheel oscillation frequency | 0-45/min adjustable | |
| Grinding wheel oscillation distance | 0-70mm adjustable | |
| Grinding wheel height adjustment | 140mm | |
| Grinding wheel stroke range | 400mm | |
| Grinding wheel inclination | -13°-+24° | |
| Cross table swiveling angle | 0-270° | |
| Size of cross table | 210*160mm with 4 T slots | |
| Workable infeed hand wheel division | 0.001mm/ 1 division | |
| Spindle Power | 2.2KW | |
| Dimension | 1850*2200*1650mm( L*H*W) | |
| Net weight | 2000kgs |
Product Description
ONLINE SYSTEM SERVO MOTOR CONTROL GRINDING HEAD FOR PCD GRINDING MACHINE
The ZT-120 is the claasic model for PCD PCBN diamond grinding. The specification:
1. Grinding head can up and down
2. X axis swing is 400mm
3. Grinding head can have angles, the inclination is -13º-+24°
4. Spindle power is 2.2kw
5. The whole servo motor control are TAIWAN brand
Features
- Machine body and all casts is more than 18 months natural ageing
- SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
- Worktable pivots up to 270 degrees with adjustable positioning stops and quickly locks
- The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
- Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
- C.C.D Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
- LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.
| CHN-TOP Grinding Machine Series Model | Type |
| ZT-90 | Manual |
| ZT-90A | Semi-automatic 2 axis CNC |
| ZT-120 | Manual |
| ZT-120R | Semi-automatic , special for rotary tools |
| ZT-180 | Full automatic |
TECHNICAL PARAMETERS
1. Spindle and Grinding Wheel
| Diameter of Grinding wheel | 6A2 150*40*40 |
| Spindle Power | 2.2KW |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel Inclination | -13°-+24° |
| Grinding Pressure | 0-450N adjustable |
2. Grind Wheel Oscillation( X axis)
| Grinding wheel Height Adjustment | 140mm |
| Grinding wheel Oscillation Frequency | 0-45/min adjustable |
| Grinding wheel Oscillation Distance | 0-70mm adjustable |
| Grinding wheel Oscillation Travel Range | 400mm |
3. CCD Monitor System
| Max manification times | 70 times |
| CCD measuring system | Online system |
| Monitor | 17 inch monitor |
3. CCD Monitor System
| Max manification times | 70 times |
| CCD measuring system | Online system |
| Monitor | 17 inch monitor |
|
Model |
ZT-120 |
|---|---|
| Tip Radius | 0-100mm |
| Grinding Pressure | 0-450N adjustable |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel size | 150*40*40mm (D*H*T) |
| Grinding wheel oscillation frequency | 0-45/min adjustable |
| Grinding wheel oscillation distance |
0-70mm adjustable |
| Grinding wheel height adjustment | 140mm |
| Grinding wheel stroke range | 400mm |
| Grinding wheel inclination | -13°-+24° |
| Cross table swiveling angle | 0-270° |
| Size of cross table | 210*160mm with 4 T slots |
| Workable infeed hand wheel division | 0.001mm/ 1 division |
| Spindle Power | 2.2KW |
| Dimension | 1850*2200*1650mm( L*H*W) |
Grinding Samples
Factory View
CHN-TOP is the company offer comprehensive solutions for diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D
team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service
according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according
to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
