270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle

Place of Origin CHINA,HUNAN
Brand Name CHN-TOP
Certification CE
Model Number ZT-120
Minimum Order Quantity 1SETS
Price Negotiable
Packaging Details Wooden packing
Delivery Time 20-60 working days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand CHN-TOP Model No. ZT-120
Linear SCHNEEBERGER Angle Encoder FAGOR
CCD Set Japan HD Camera Pneumatic System JAPAN SMC
Highlight

270 degrees cnc tool grinding machine

,

450N cnc tool grinding machine

,

270 degrees cnc surface grinding machine

You can tick the products you need and communicate with us in the message board.
Radius Tip 0-70mm
Grinding pressure 0-450N Adjustable
Spindle speed 0-4200RPM adjustable
Grinding wheel size 150*40*40mm (D*H*T)
Grinding wheel oscillation frequency 0-45/min adjustable
Grinding wheel oscillation distance 0-70mm adjustable
Grinding wheel height adjustment 140mm
Grinding wheel stroke range 400mm
Grinding wheel inclination -13°-+24°
Cross table swiveling angle 0-270°
Size of cross table 210*160mm with 4 T slots
Workable infeed hand wheel division 0.001mm/ 1 division
Spindle Power 2.2KW
Dimension 1850*2200*1650mm( L*H*W)
Net weight 2000kgs
Leave a Message
Radius Tip 0-70mm
Product Description

PCD GRINDING MACHINE WITH FAGOR ANGLE ENCODER PRECISION SCALE FOR RATAORY TOOLS AND ROUND TOOLS

The ZT-120 is a PCD Grinding machine is the competitive price with stable good quality for rotary Tools and round tools

1. FAGOR ANGLE ENCODER

2. CCD camera is Japan HD camera

3. Linear grating is FAGOR

4. Linear is SCHNEEBERGER

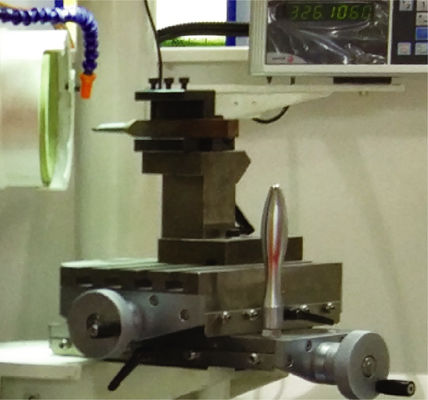

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 0

Features

  • Machine body and all casts is more than 18 months natural ageing
  • SCHNEEBERGER heavy duty &precision linear slide guide for its accuracy and life
  • Worktable pivots up to 270 degrees with adjustable positioning stops and quickly locks
  • The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed
  • Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
  • C.C.D Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
  • LCD monitor scope with zoom system for adjustable from 7- 45 magnification even 0.05 radius can be grinding and inspection.
















TECHNICAL PARAMETERS

1. Spindle and Grinding Wheel

Diameter of Grinding wheel 6A2 150*40*40
Spindle Power 2.2KW
Spindle Speed 0-4200RPM adjustable
Grinding wheel Inclination -13°-+24°
Grinding Pressure 0-450N adjustable



2. Grind Wheel Oscillation( X axis)

Grinding wheel Height Adjustment 140mm
Grinding wheel Oscillation Frequency 0-45/min adjustable
Grinding wheel Oscillation Distance 0-70mm adjustable
Grinding wheel Oscillation Travel Range 400mm




3. CCD Monitor System

Max manification times 70 times
CCD measuring system Online system
Monitor 17 inch monitor



3. CCD Monitor System

Max manification times 70 times
CCD measuring system Online system
Monitor 17 inch monitor




Model

ZT-120
Tip Radius 0-100mm
Grinding Pressure 0-450N adjustable
Spindle Speed 0-4200RPM adjustable
Grinding wheel size 150*40*40mm (D*H*T)
Grinding wheel oscillation frequency 0-45/min adjustable
Grinding wheel oscillation distance

 0-70mm adjustable

Grinding wheel height adjustment 140mm
Grinding wheel stroke range 400mm
Grinding wheel inclination -13°-+24°
Cross table swiveling angle 0-270°
Size of cross table 210*160mm with 4 T slots
Workable infeed hand wheel division 0.001mm/ 1 division
Spindle Power 2.2KW
Dimension 1850*2200*1650mm( L*H*W)

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 1



270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 2

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 3

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 4

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 5

























270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 6





Grinding Samples

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 7



















270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 8









                                                                                                   Optional Accessories

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 9



                                                                              Factory View

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 10

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 11

270 Degrees CNC Tool Grinding Machine 450N Pressure Fagor Angle 12











































CHN-TOP is the company offer comprehensive solutions for diamond tools making

Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine,
chip breaker machines, laser engraving machine and polishing machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools,
Notching service for tools, chip breaker machining service and grinding service
